Halfshaft Oil Seal: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: RH side shown, LH side similar.

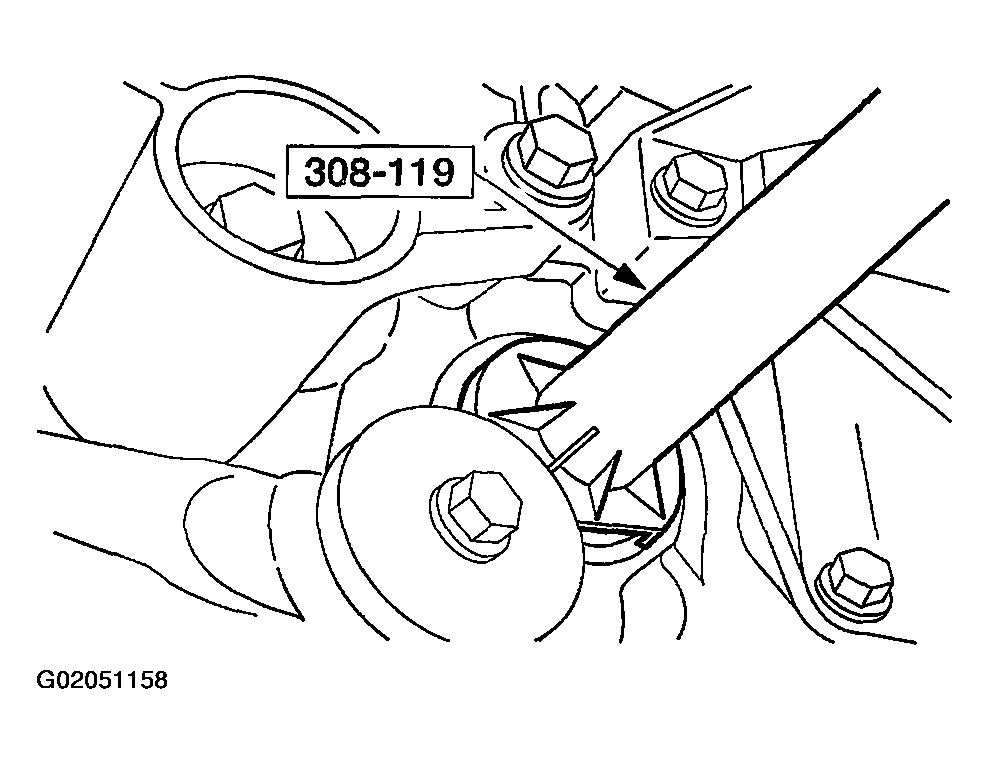

    Fig 1: Installing New Halfshaft Seal Using Special Tool
    G02051158Courtesy of FORD MOTOR CO.
  1. Using the special tool, install the new halfshaft seal.
  2. Install the halfshaft. Refer to AXLE SHAFTS .
