Transaxle Draining and Filling

All vehicles

1. Raise and support the vehicle.

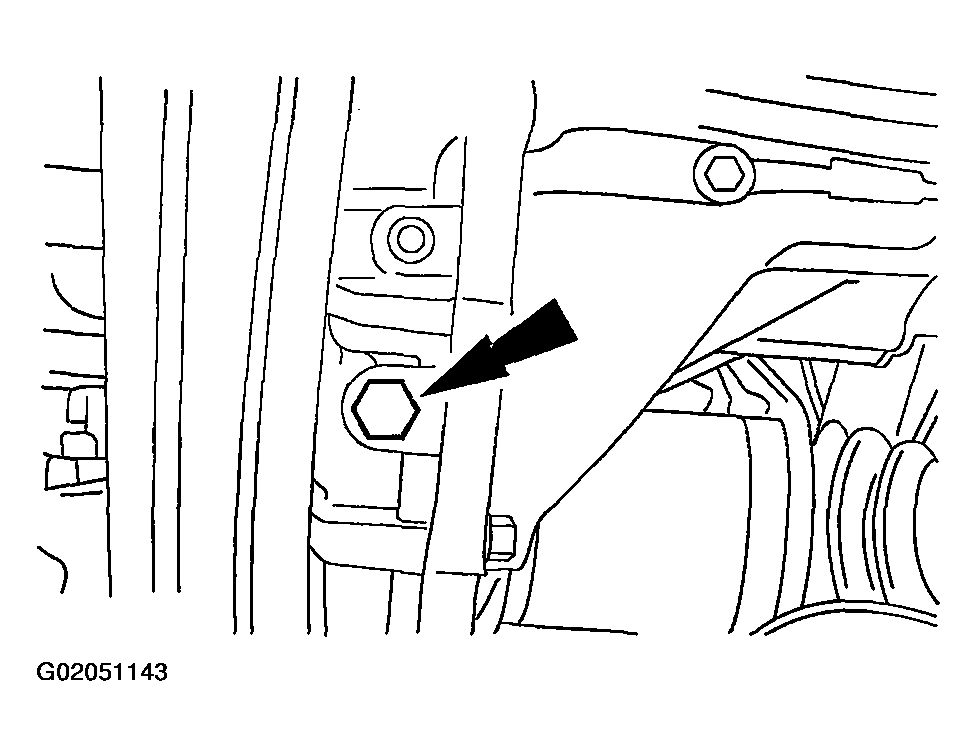

2. Remove the drain plug and drain the fluid.
   Fig 1: Removing Drain Plug And Drain Fluid

   Courtesy of FORD MOTOR CO.
3. NOTE: Use a new gasket on the drain plug. Install the drain plug.

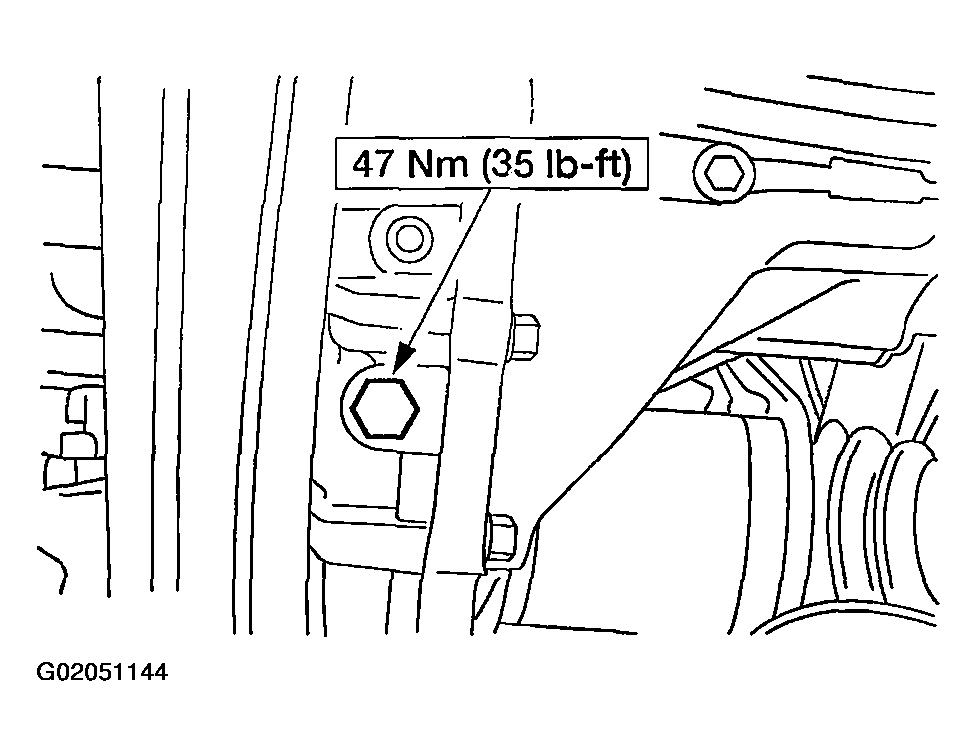

   Fig 2: Installing Drain Plug

   Courtesy of FORD MOTOR CO.
4. Remove the LH splash shield.

   4X4 vehicles

5. Remove the plug.

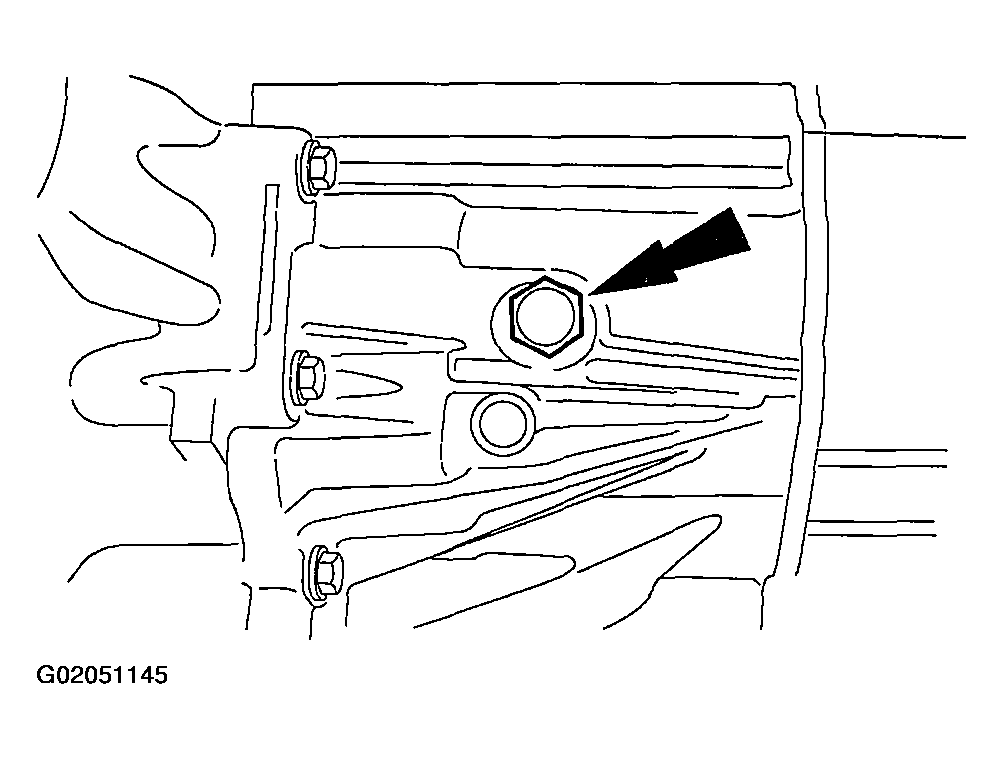

   Fig 3: Removing Plug (4X4 Vehicles)

   Courtesy of FORD MOTOR CO.

   4X2 vehicles

6. Remove the plug.
   Fig 4: Removing Plug (4X2 Vehicles)

   Courtesy of FORD MOTOR CO.
NOTE: 4X2 shown, 4X4 similar.

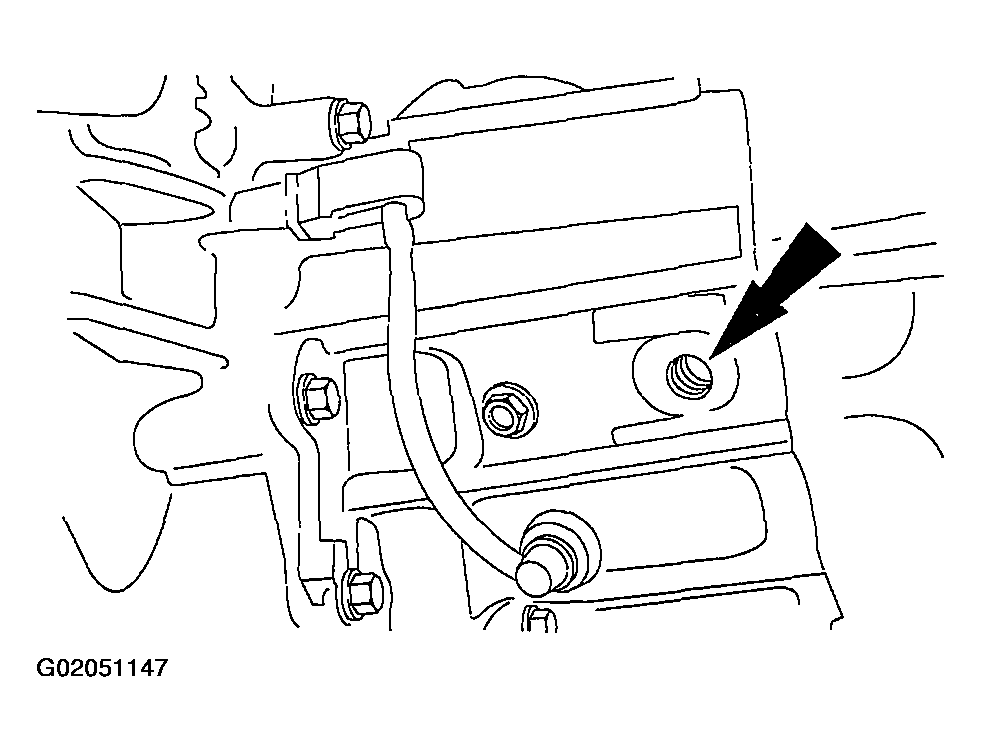

Fig 5: Filling Transmission With Gear Oil
Courtesy of FORD MOTOR CO.
7. Fill the transmission with gear oil until level with the fill hole.
NOTE: 4X2 shown, 4X4 similar.

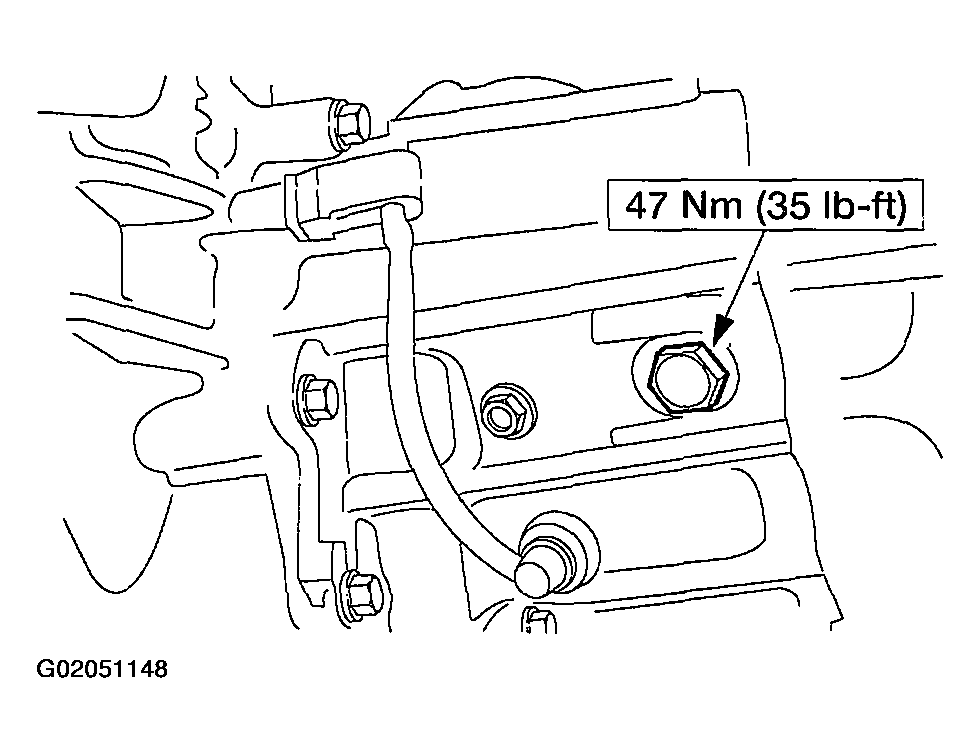

Fig 6: Installing Fill Plug
Courtesy of FORD MOTOR CO.
8. Install the fill plug.
9. Install the LH splash shield.
