General Procedures: Bearings

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Inspect the bearing for a bent cage.

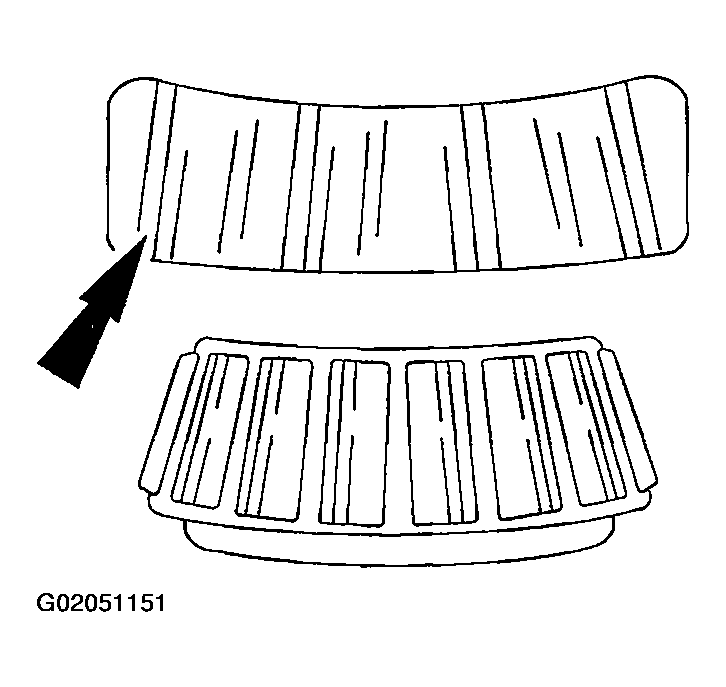

Fig 1: Inspecting Bearing For A Bent Cage
Courtesy of FORD MOTOR CO.
Inspect the bearings for galling (metal smears on the roller ends).

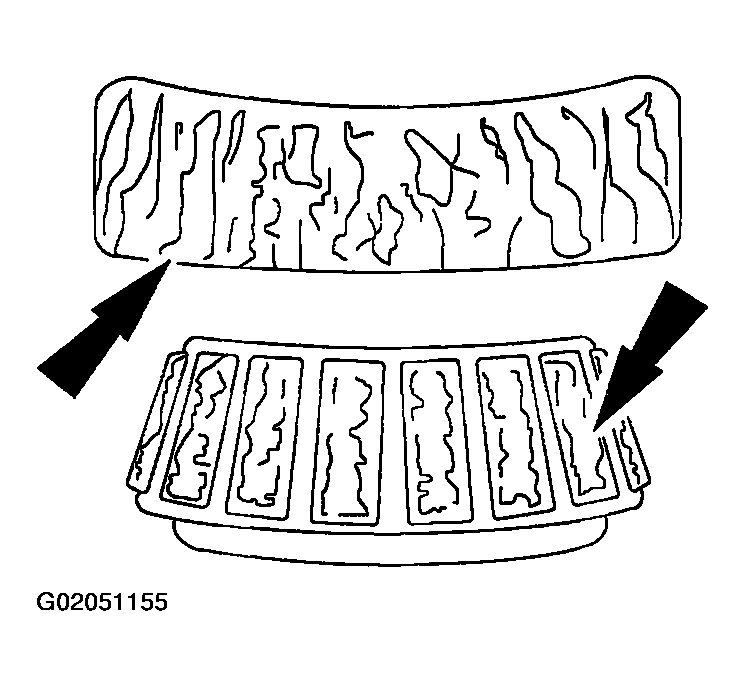

Fig 2: Inspecting Bearings For Galling
Courtesy of FORD MOTOR CO.
Inspect the bearings for brinelling (surface indentation in the race).

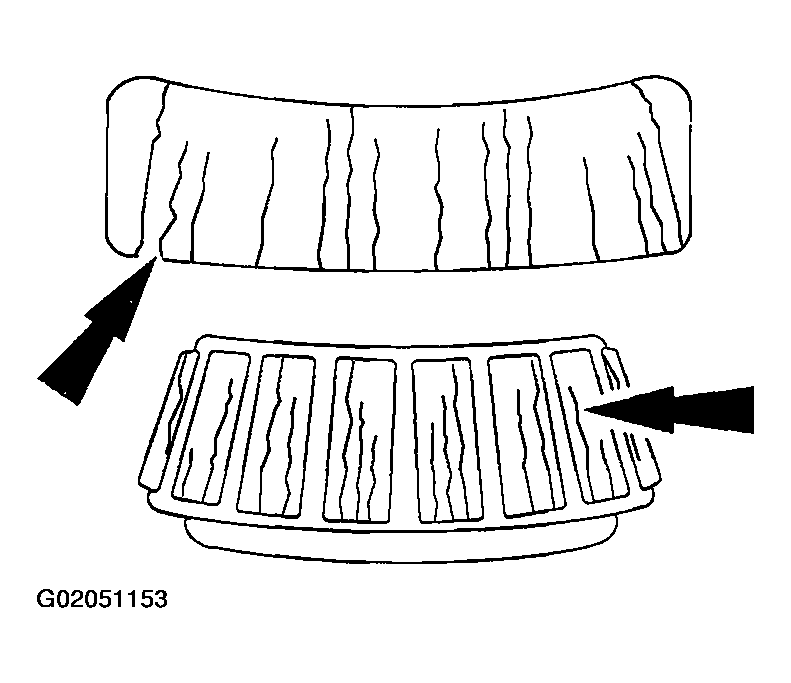

Fig 3: Inspecting Bearings For Brinelling
Courtesy of FORD MOTOR CO.
Inspect the bearing for a cracked inner race.

Fig 4: Inspecting Bearing For A Cracked Inner Race
Courtesy of FORD MOTOR CO.

CAUTION: If etching is present, inspect the seals.

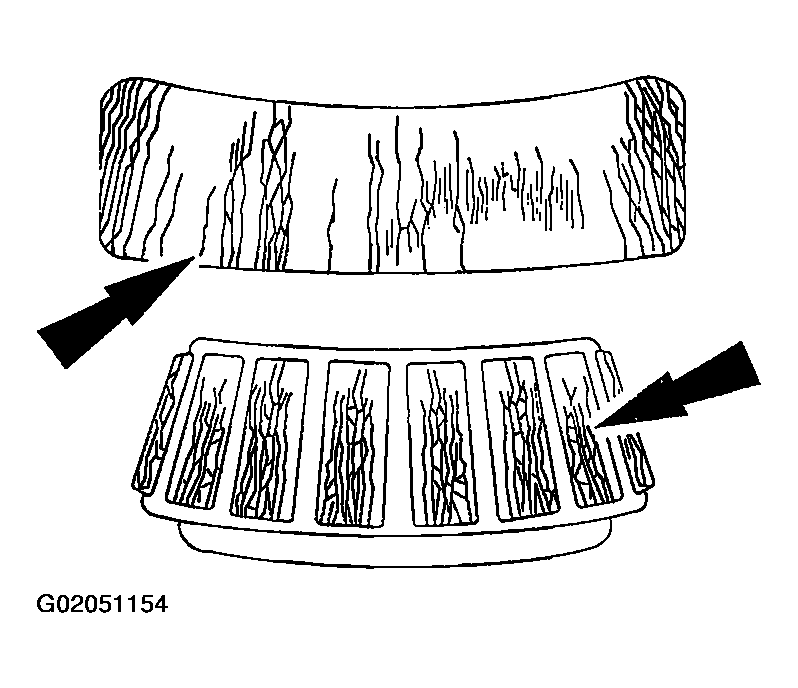

Fig 5: Inspecting Bearing And Race For Etching

Courtesy of FORD MOTOR CO.

Inspect the bearing and race for etching.
Inspect the bearing for heat discoloration (dark blue).

Fig 6: Inspecting Bearing For Heat Discoloration
Courtesy of FORD MOTOR CO.
Inspect the bearing for fatigue spalling (metal flaking).

Fig 7: Inspecting Bearing For Fatigue Spalling
Courtesy of FORD MOTOR CO.
