Brake Shift Interlock Actuator: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column assembly; refer to STEERING COLUMN .
Remove the insert plate and the shift lock actuator (3Z719).
1. Remove the bolts.
2. Remove the insert plate and the shift lock actuator.

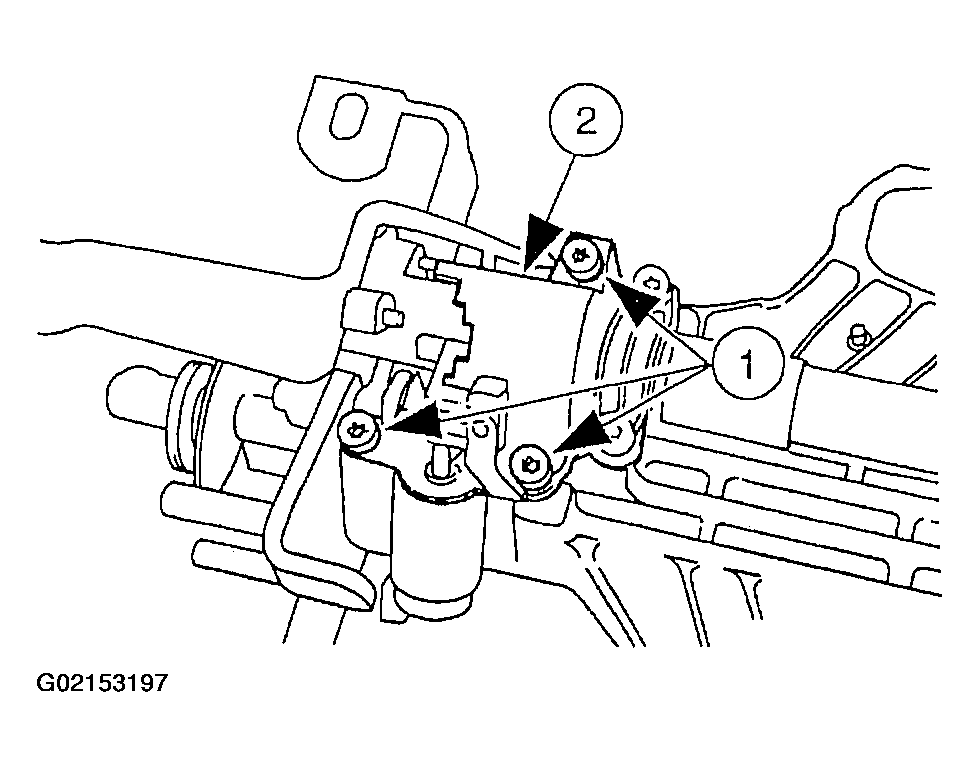

Fig 1: Removing Insert Plate & Shift Lock Actuator
Courtesy of FORD MOTOR CO.

NOTE: The shift lock actuator clip is an assembly aid for the assembly plant and does not need to be replaced.

Fig 2: Removing Shift Lock Actuator Clip

Courtesy of FORD MOTOR CO.

Remove the insert plate from the shift lock actuator.
- Remove and discard the shift lock actuator clip.
