Pinpoint Test B: Shift Control Is Out Of Proper Gear Relationship
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

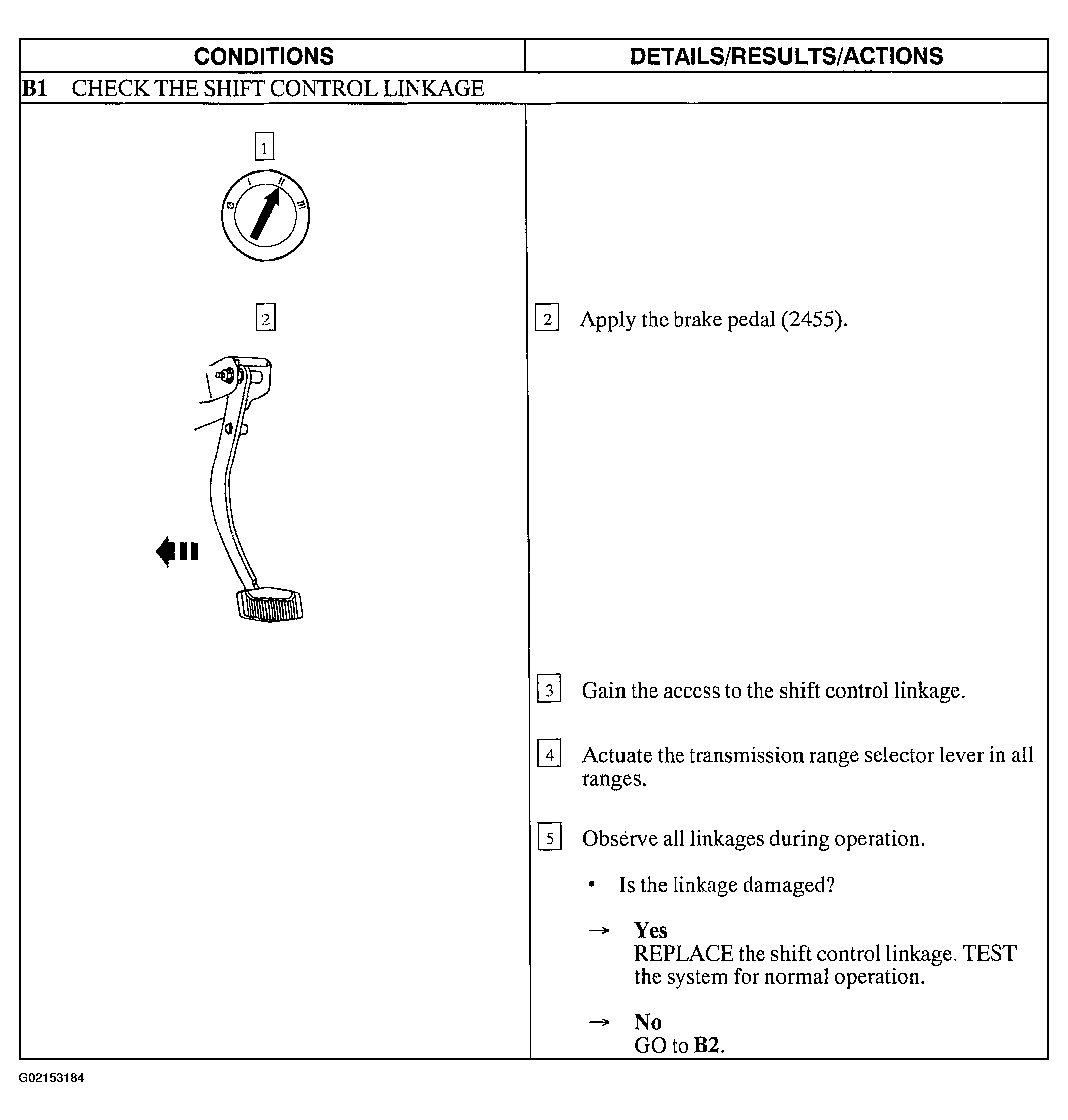

Fig 1: Pinpoint Test B: Shift Control Is Out Of Proper Gear Relationship (B1)
Courtesy of FORD MOTOR CO.

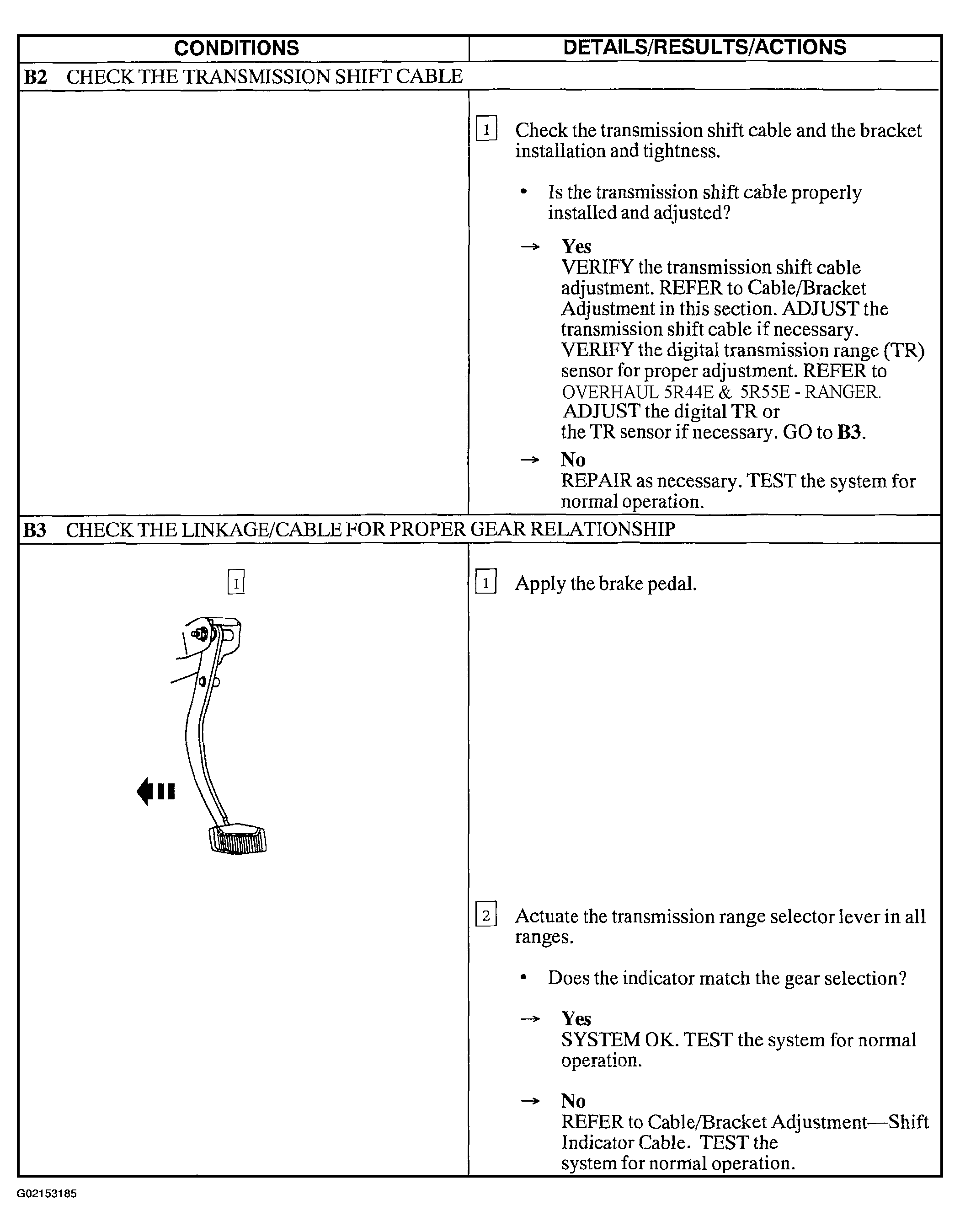

Fig 2: Pinpoint Test B: Shift Control Is Out Of Proper Gear Relationship (B2-B3)
