Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly (A1-A3)
Courtesy of FORD MOTOR CO.

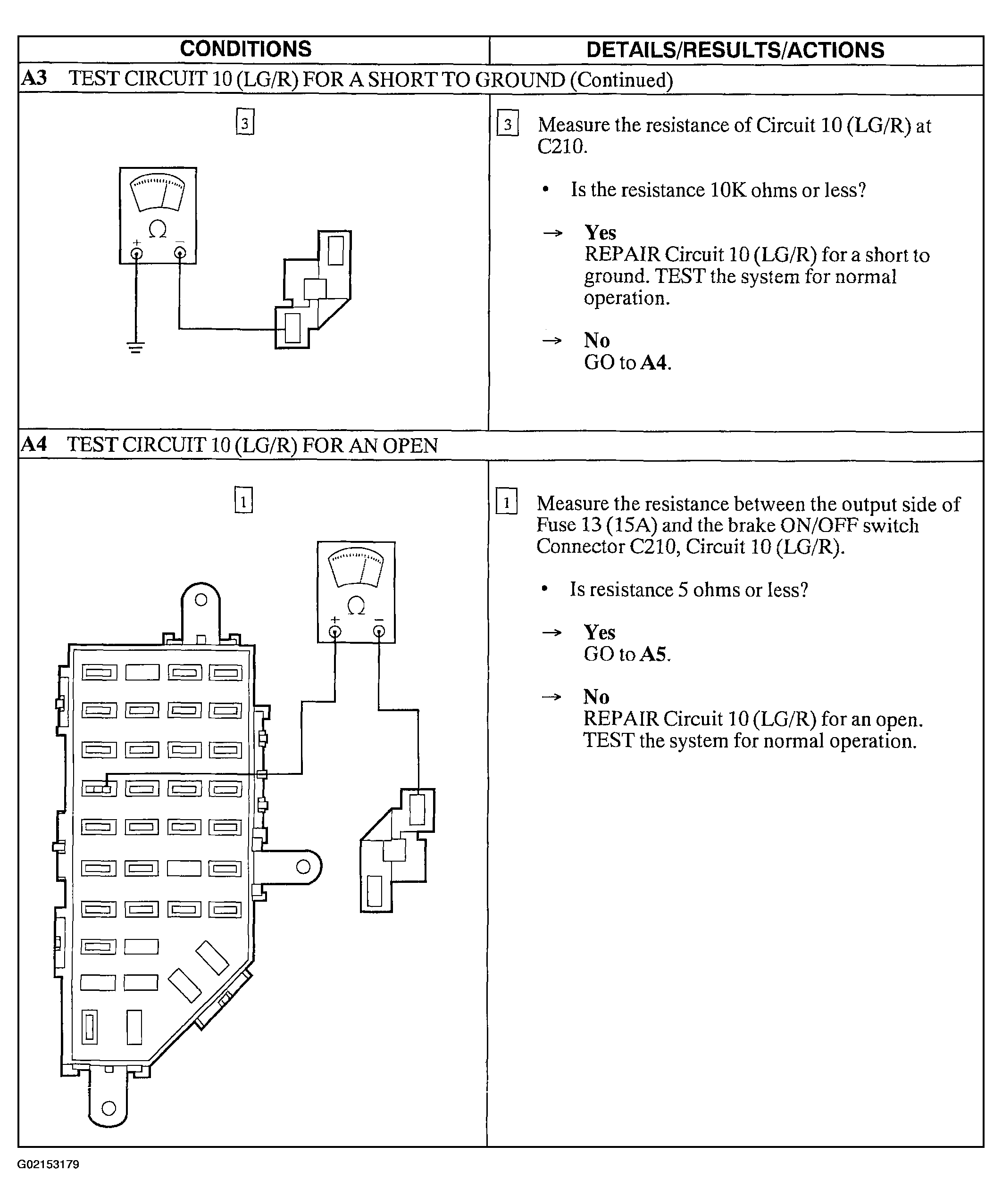

Fig 2: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly (A3-A4)
Courtesy of FORD MOTOR CO.

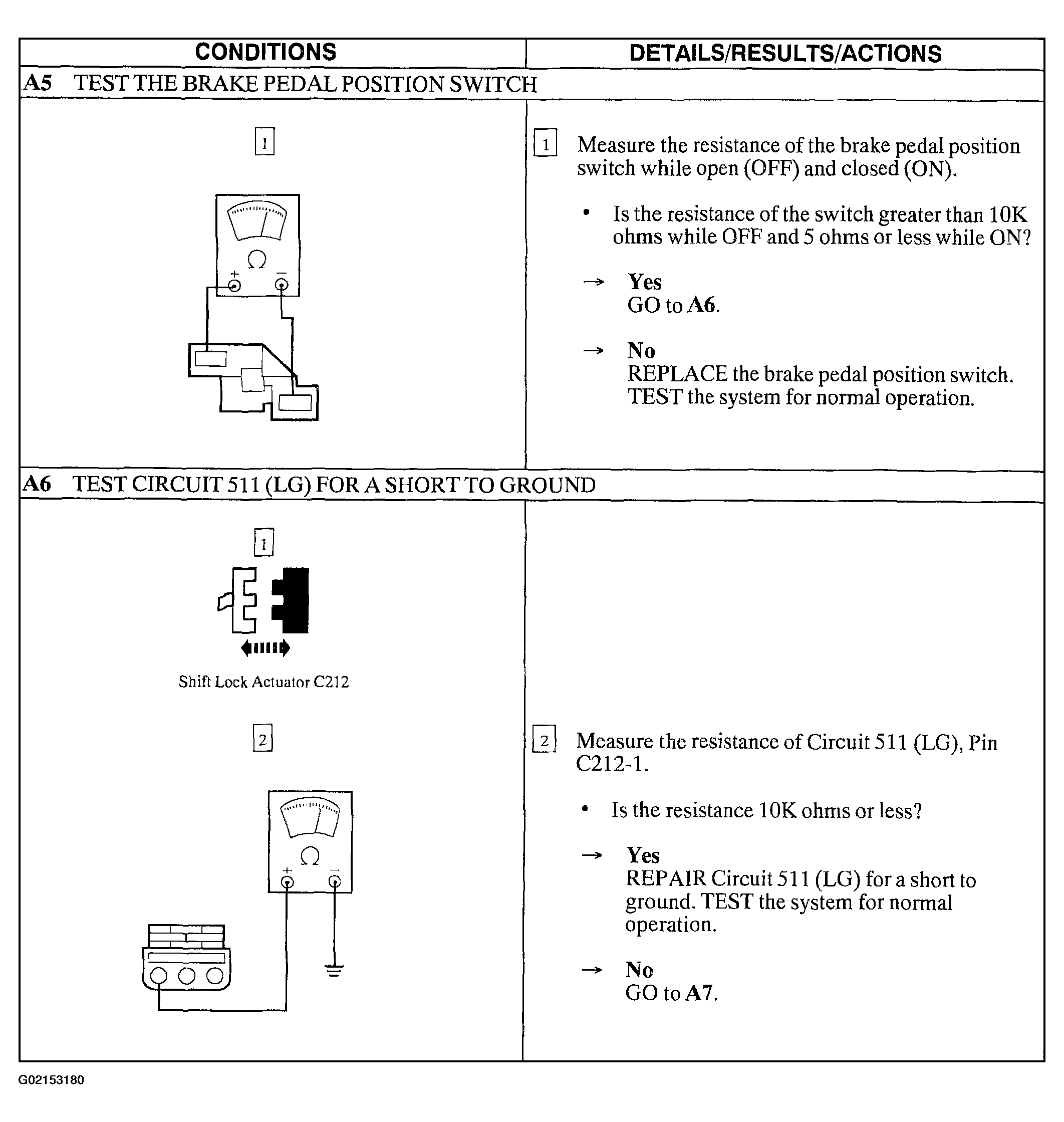

Fig 3: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly (A5-A6)
Courtesy of FORD MOTOR CO.

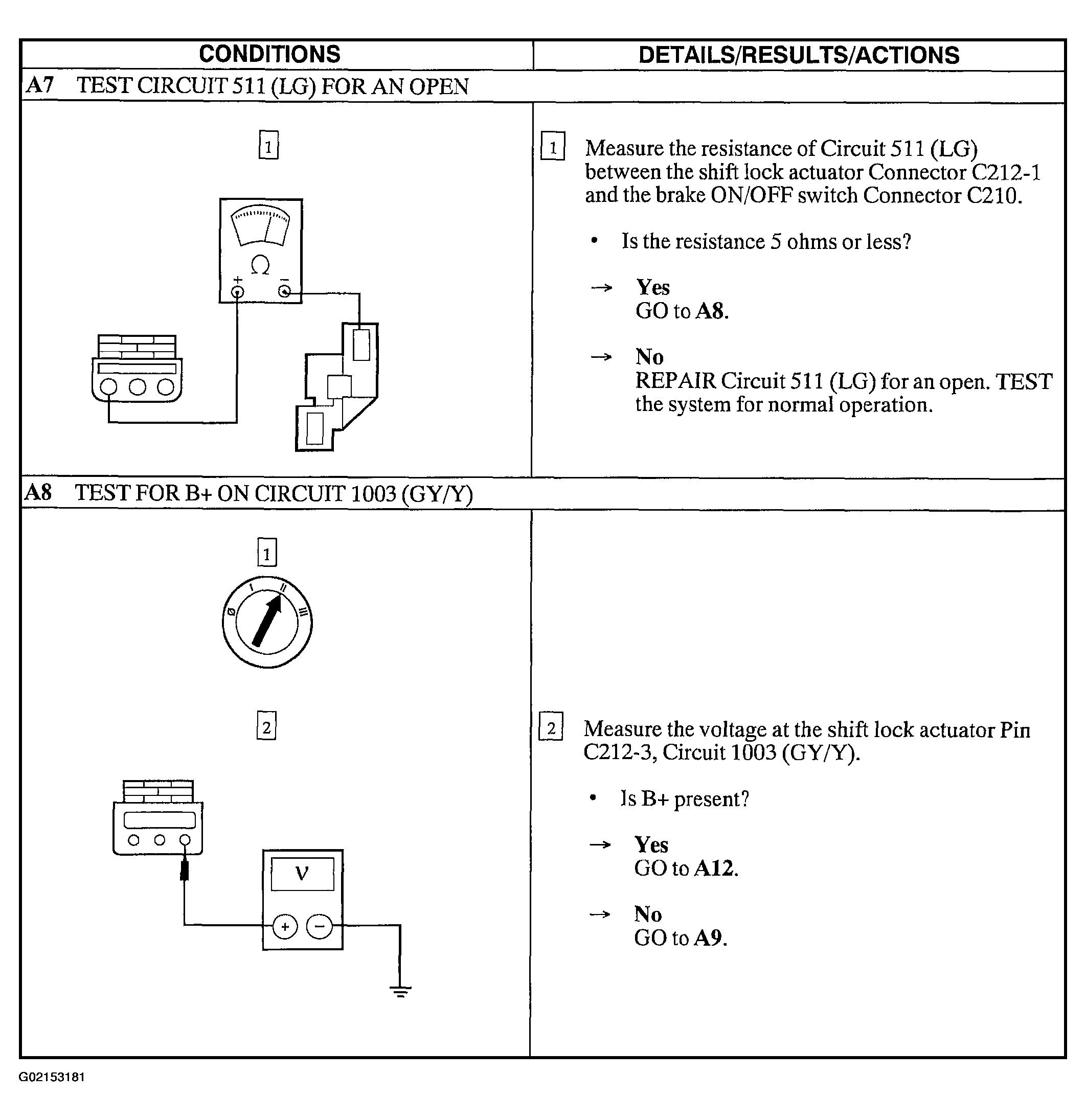

Fig 4: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly (A7-A8)
Courtesy of FORD MOTOR CO.

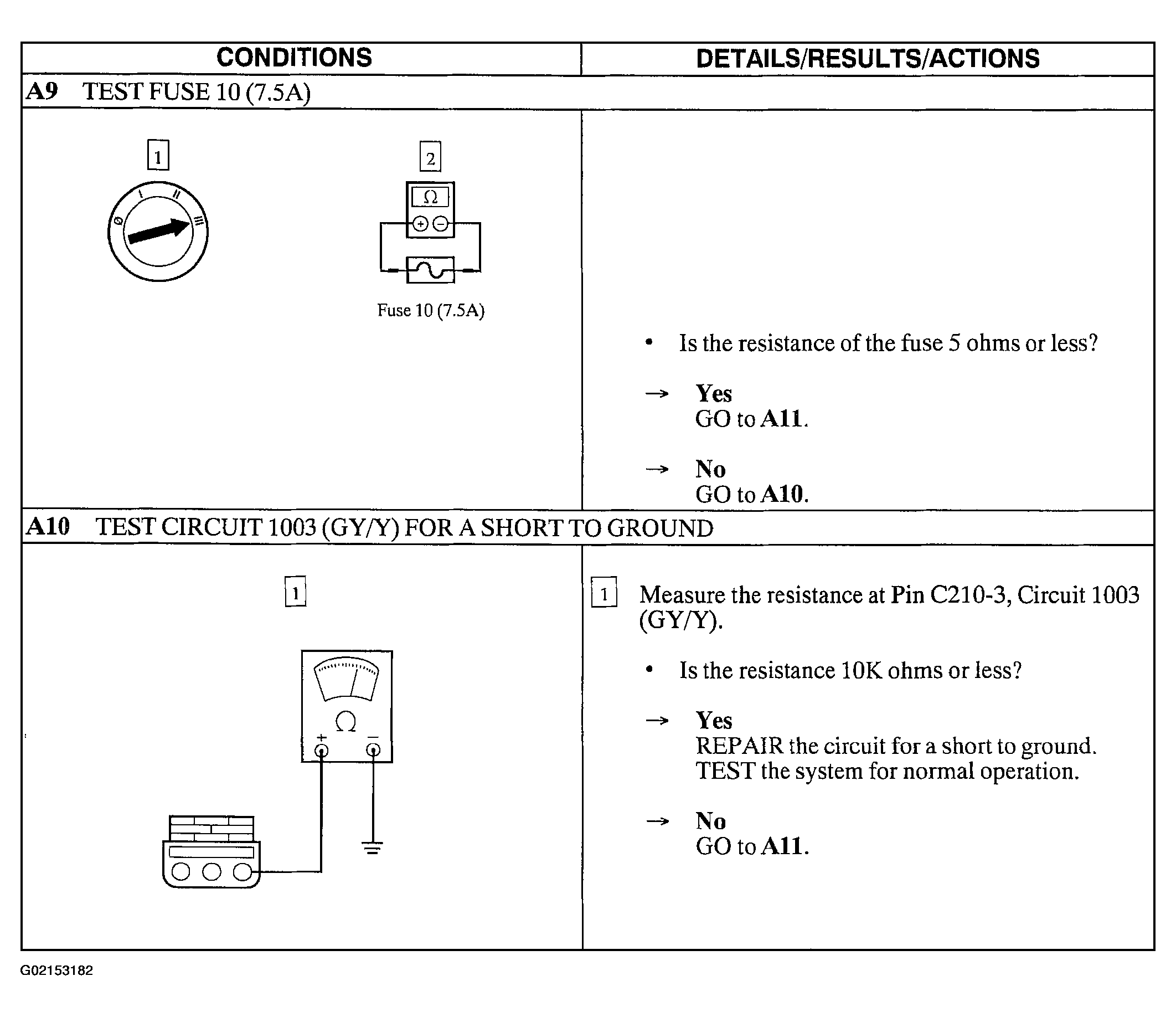

Fig 5: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly (A9-A10)
Courtesy of FORD MOTOR CO.

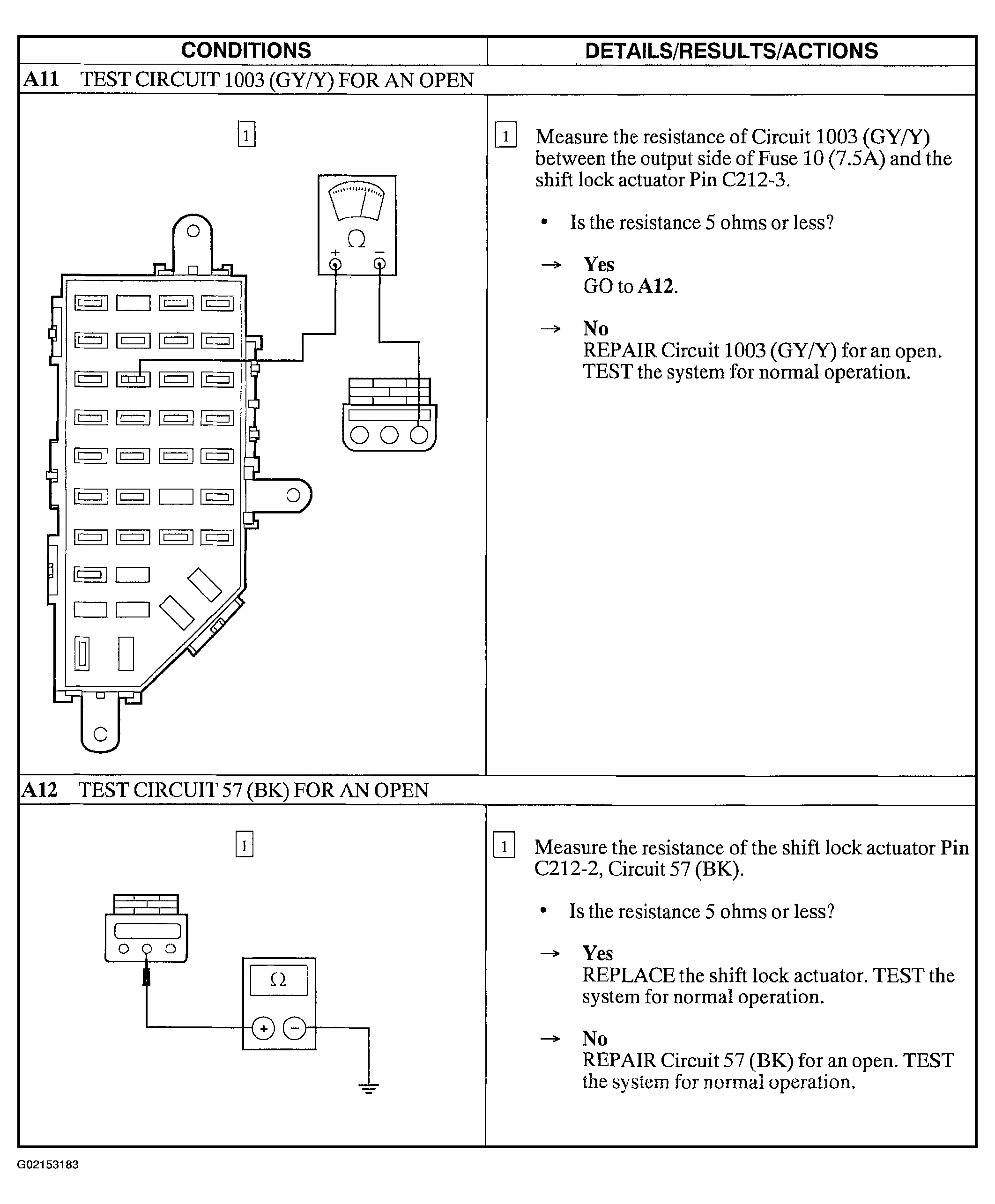

Fig 6: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly (A11-A12)
