Tubes - 2.3L & 3.0L: Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the fluid cooler inlet tube and fluid cooler tube. Install the transmission fluid cooler line clip on the engine.

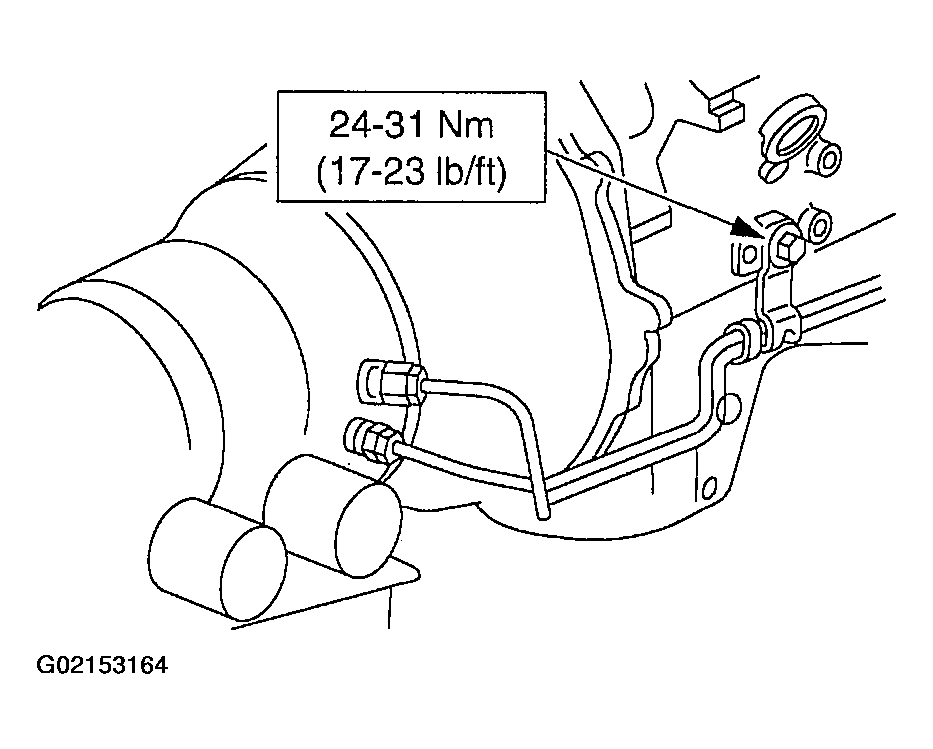

    Fig 1: Positioning Fluid Cooler Inlet Tube & Fluid Cooler Tube
    G02153164Courtesy of FORD MOTOR CO.
  2. Connect the fluid cooler inlet tube and fluid cooler tube to the transmission.

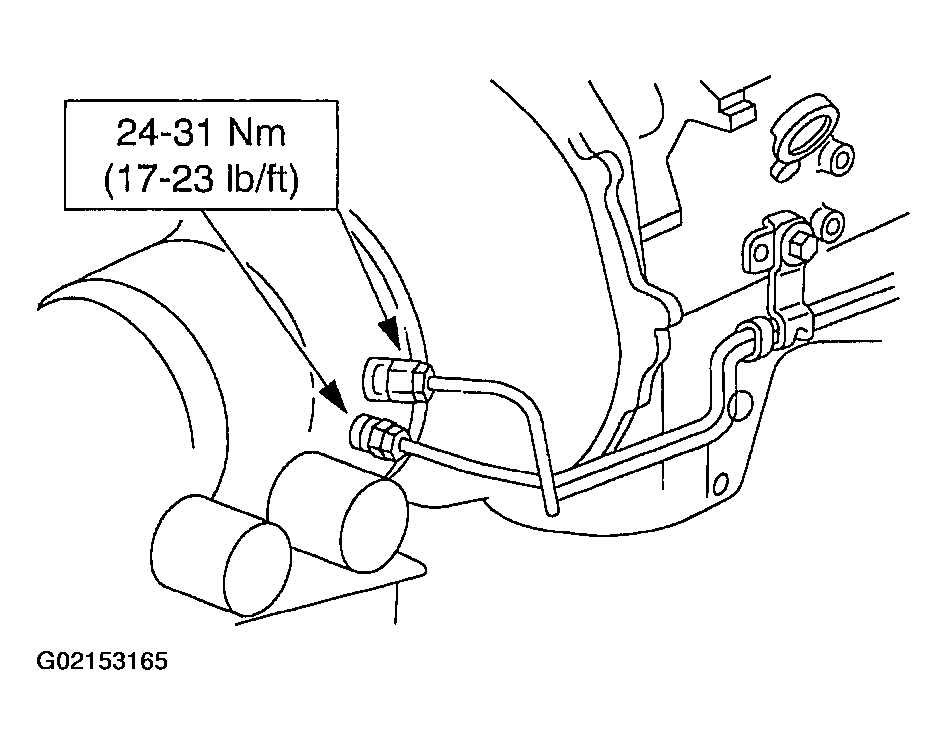

    Fig 2: Connecting Fluid Cooler Inlet Tube & Fluid Cooler Tube To Transmission
    G02153165Courtesy of FORD MOTOR CO.
  3. Connect the fluid cooler inlet tube and fluid cooler tube to the radiator.

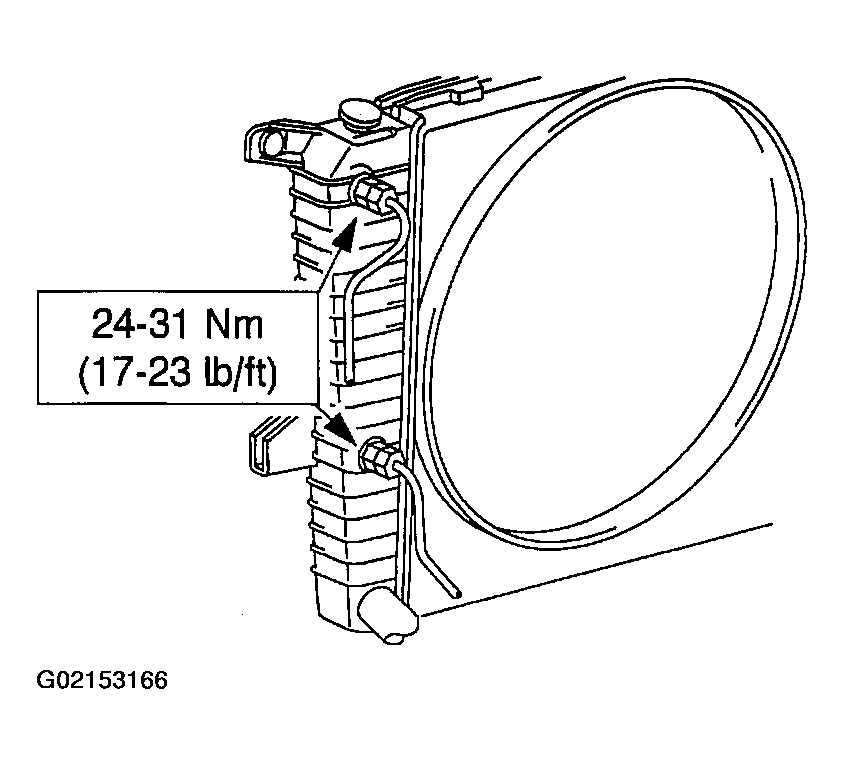

    Fig 3: Connecting Fluid Cooler Inlet Tube & Fluid Cooler Tube To Radiator
    G02153166Courtesy of FORD MOTOR CO.
