Section 303 (Overhaul - Automatic Transmission)
>>
Specifications
>>
Solenoid Operation Chart
Solenoid Operation Chart
WARNING:
This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

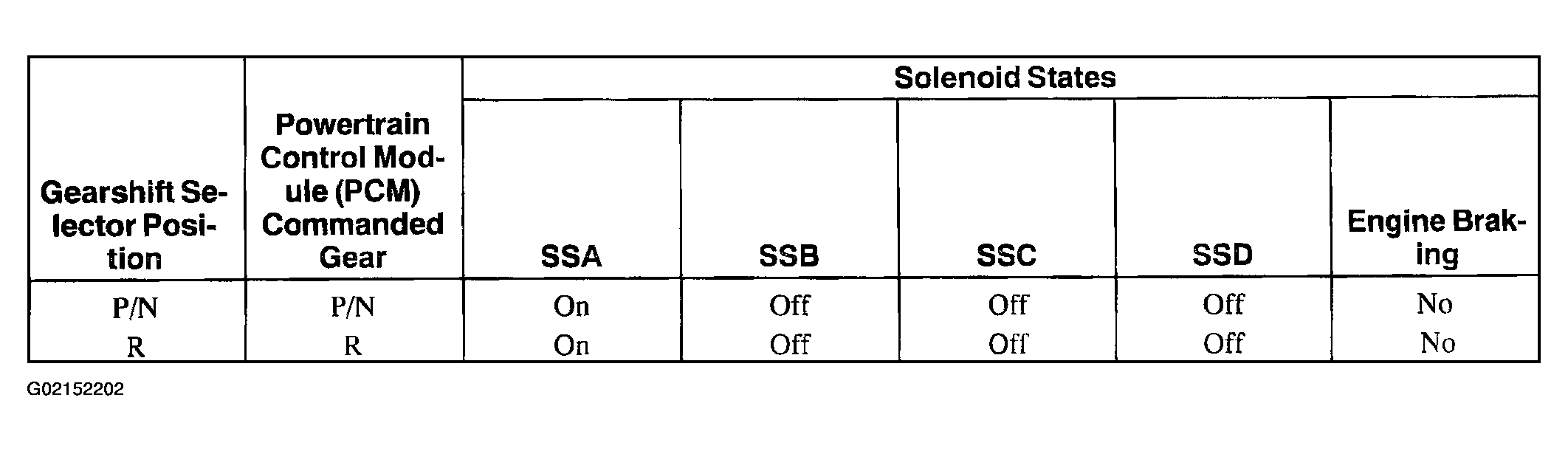

Fig 1: Solenoid Operation Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

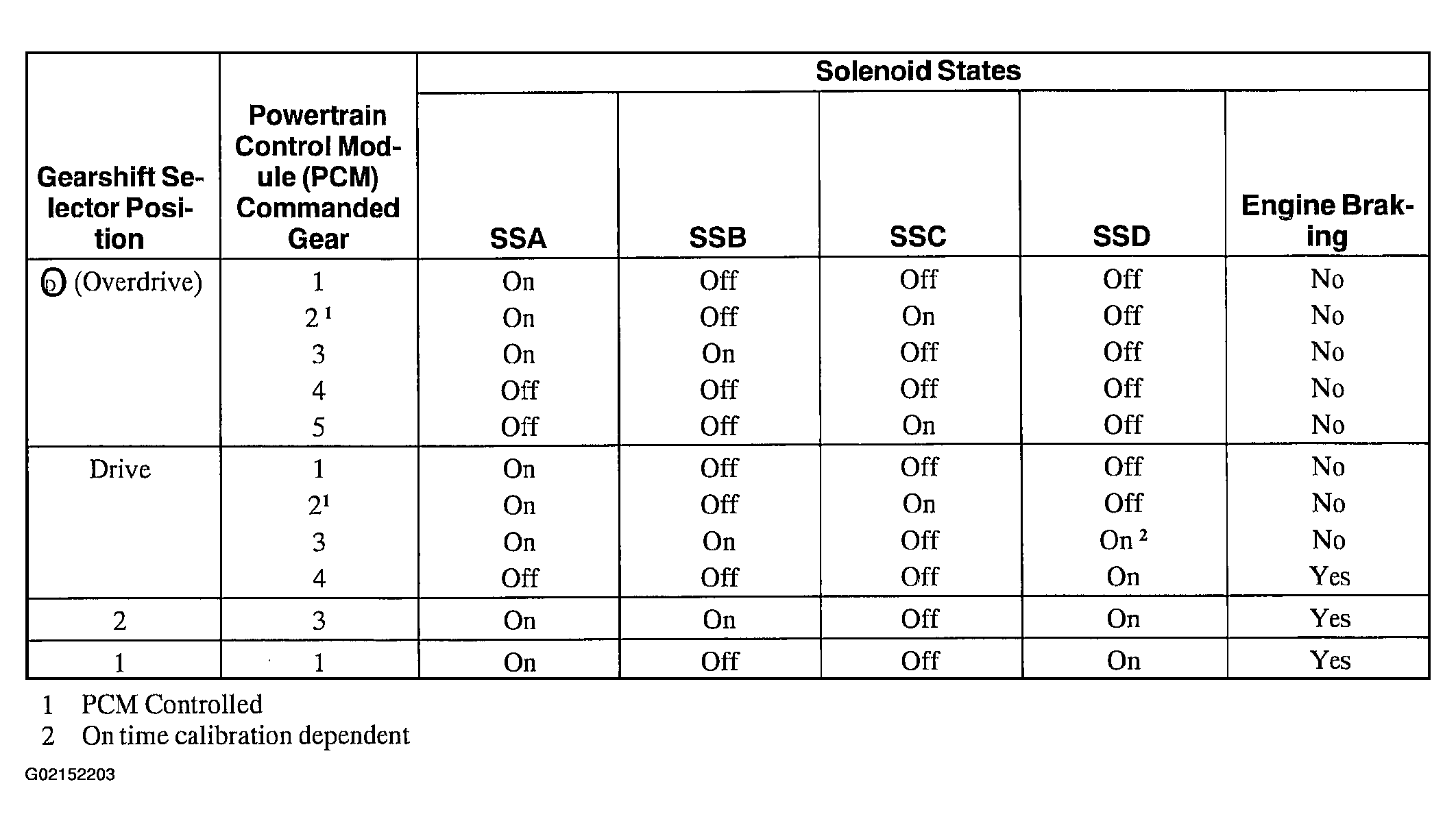

Fig 2: Solenoid Operation Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
