Shift Speeds

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Shift speed ranges are approximate for all applications. For specific applications (engine, axle ratio and application), refer to Automatic Transmission Specifications.

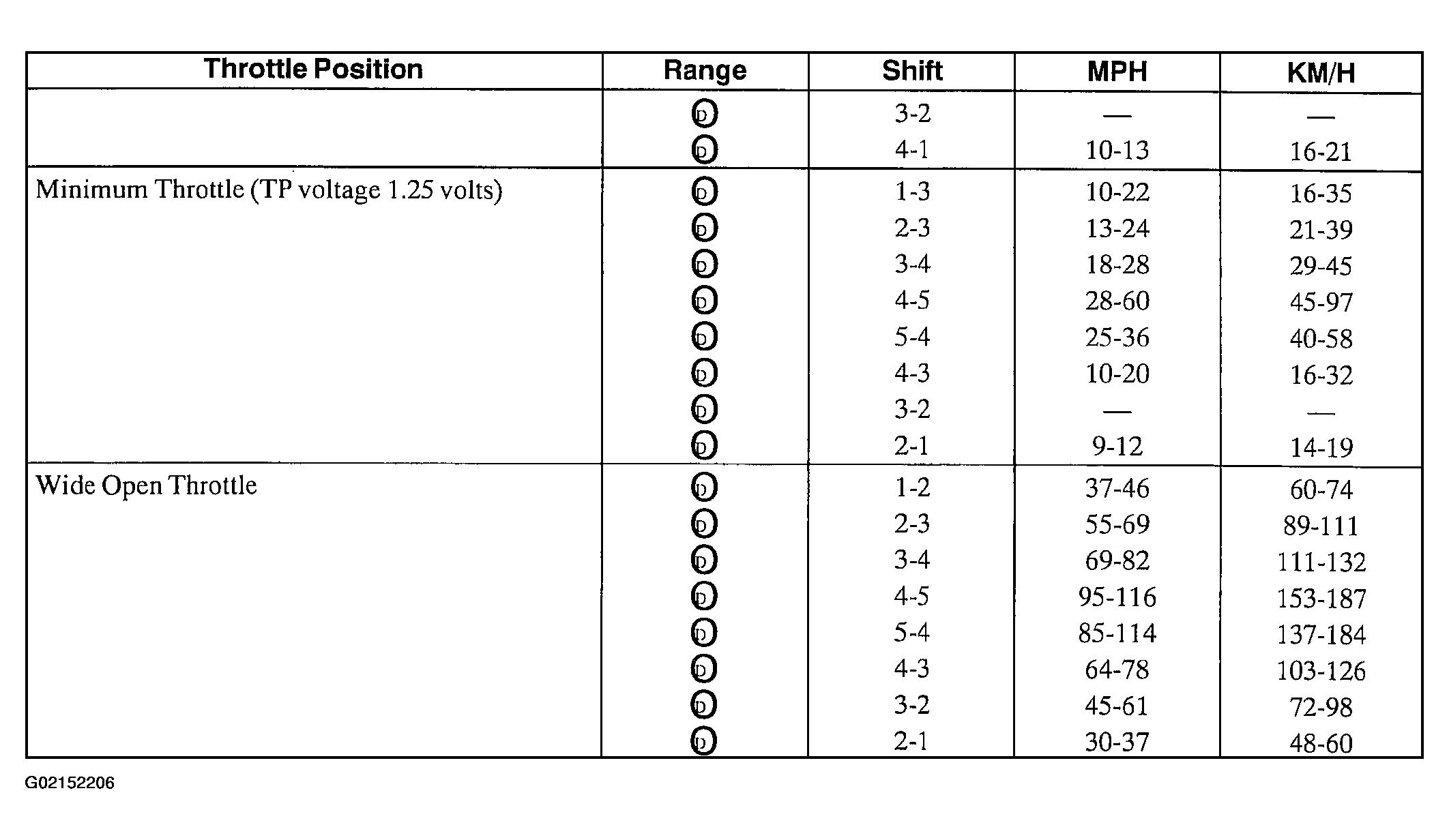

Fig 1: Shift Speeds Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 2: Shift Speeds Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 3: Stall Speed Chart

Courtesy of FORD MOTOR CO.
