Section 303 (Overhaul - Automatic Transmission)
>>
Specifications
>>
Clutch Plate Usage And Clearance Specifications
Clutch Plate Usage And Clearance Specifications
WARNING:
This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

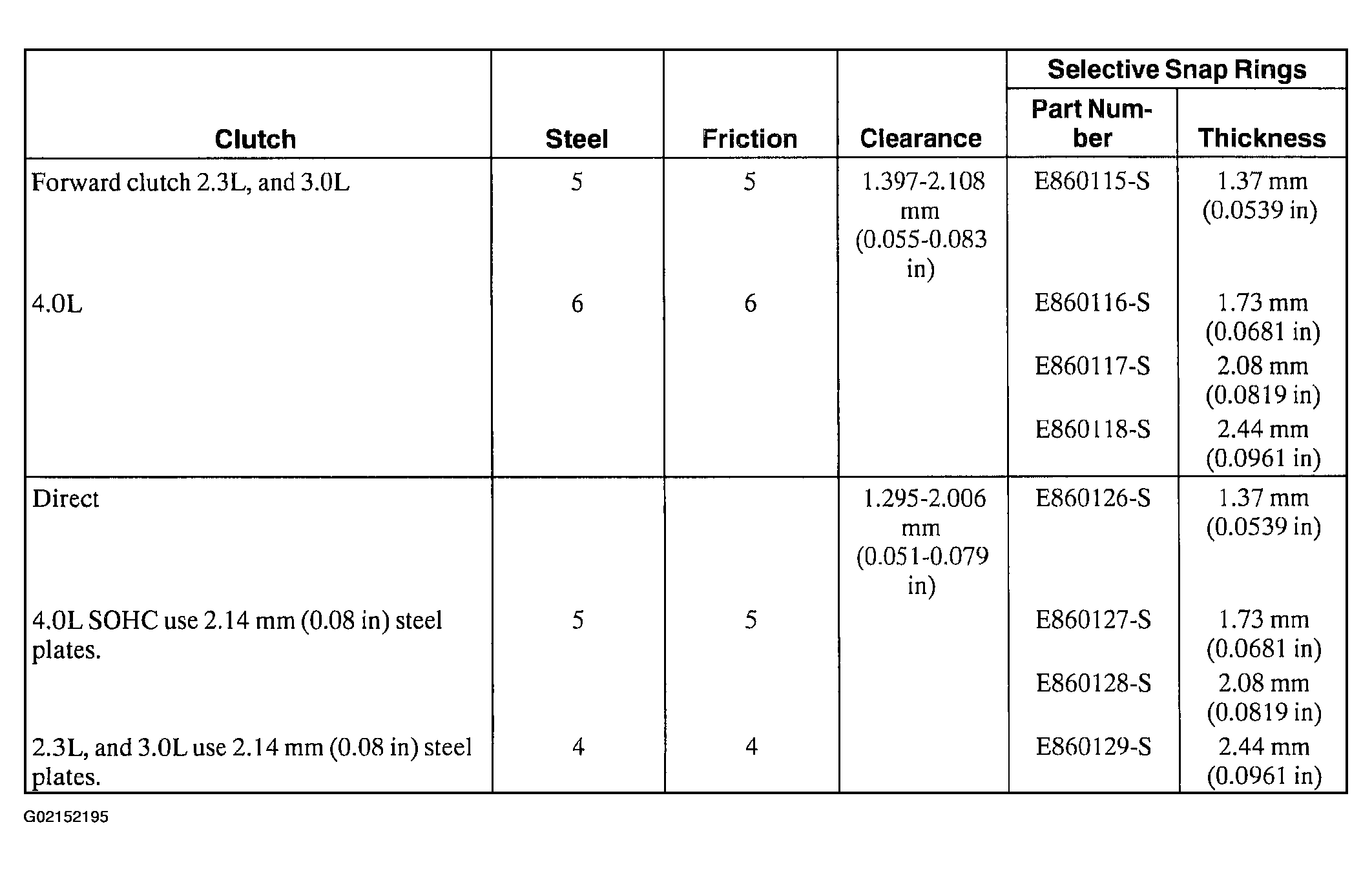

Fig 1: Clutch Plate Usage & Clearance Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.

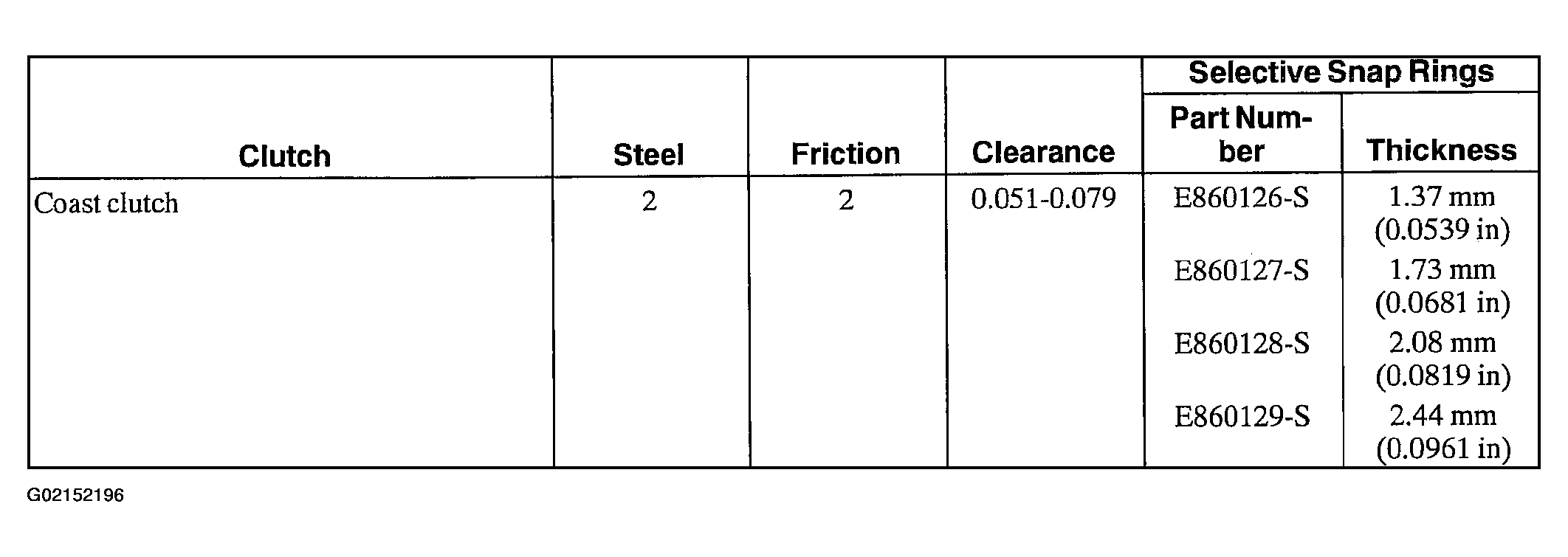

Fig 2: Clutch Plate Usage & Clearance Specifications (2 Of 2)
Courtesy of FORD MOTOR CO.
