Band/Clutch Application Chart

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

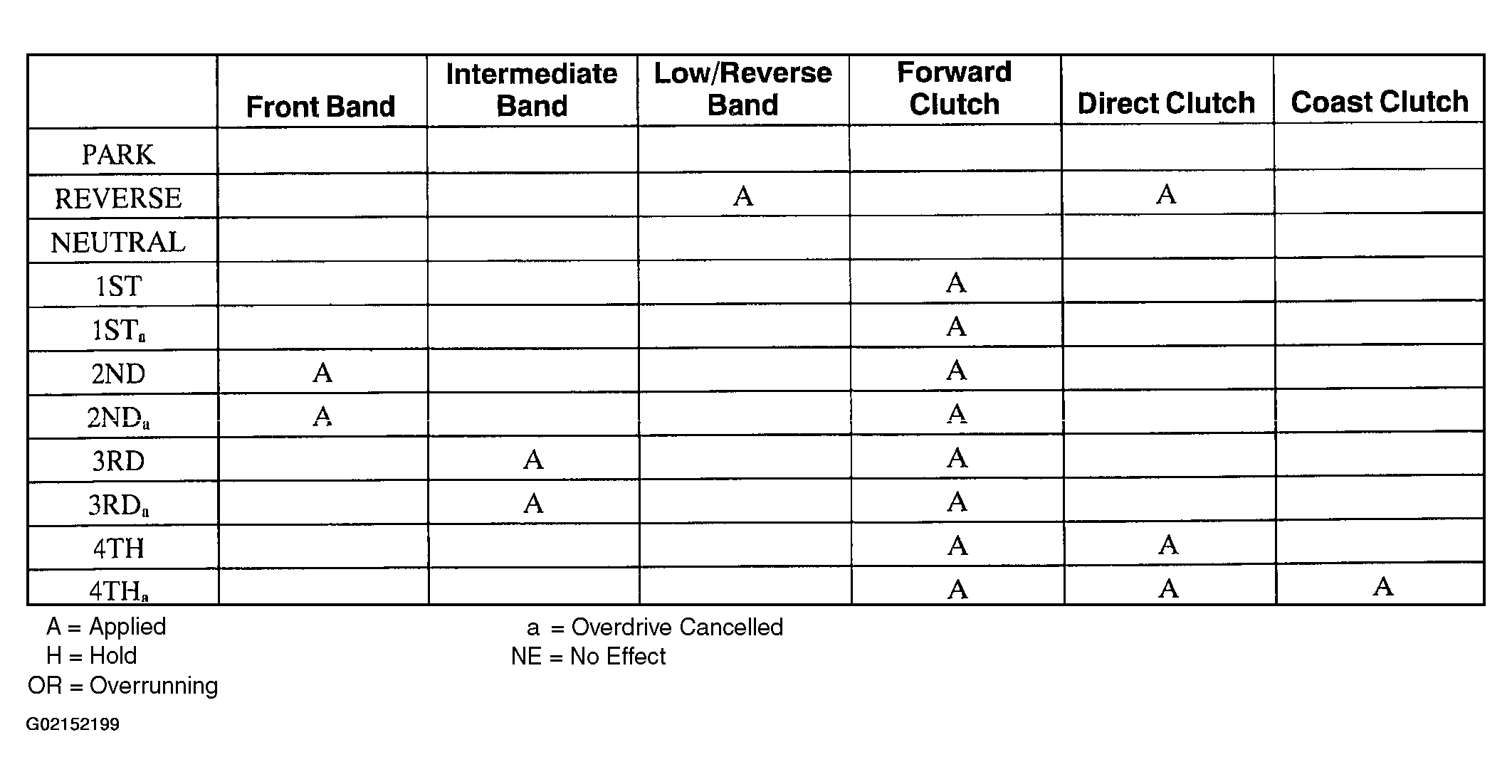

Fig 1: Band/Clutch Application Chart (1 Of 3)

Courtesy of FORD MOTOR CO.

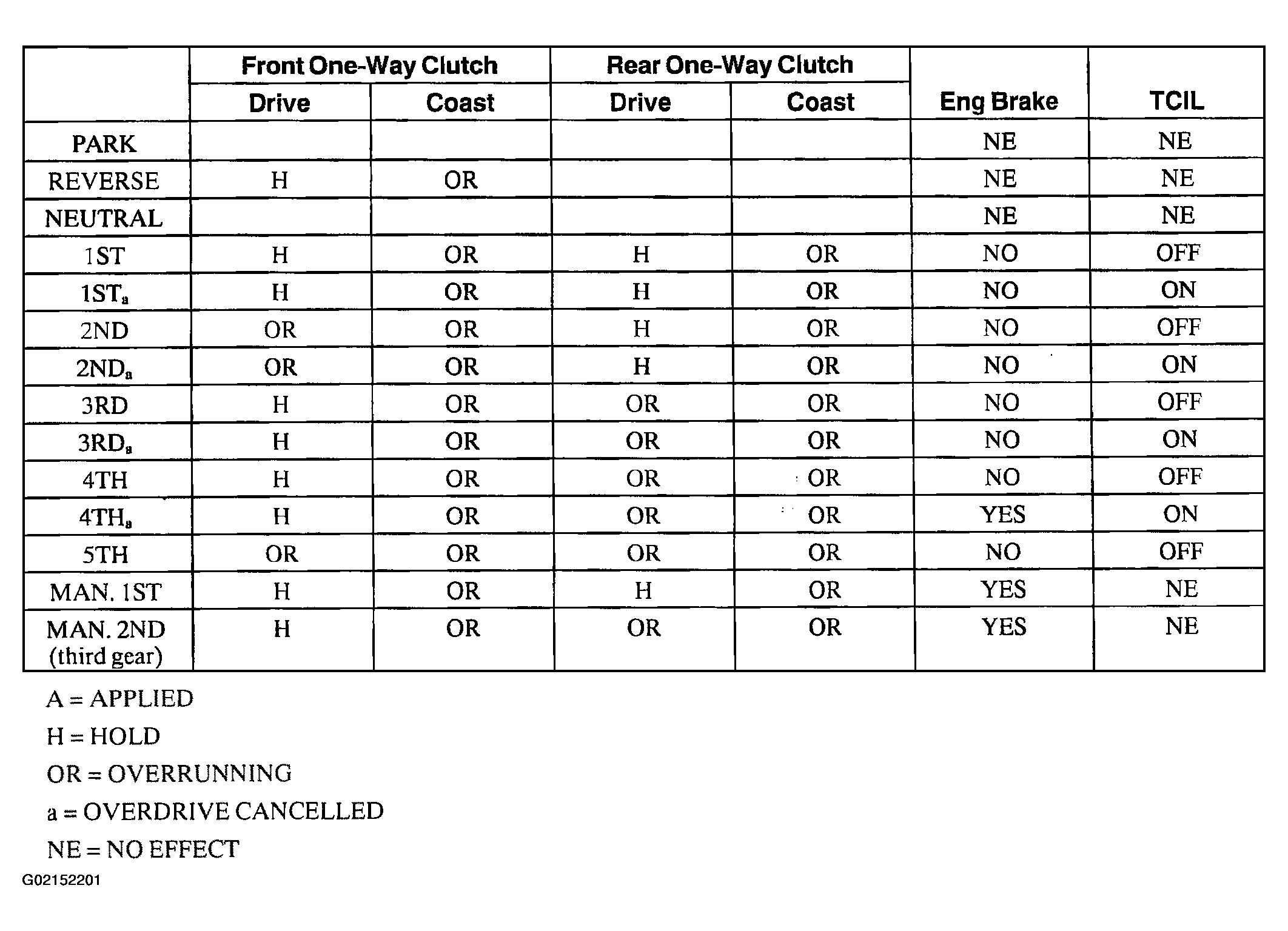

Fig 2: Band/Clutch Application Chart (2 Of 3)

Courtesy of FORD MOTOR CO.

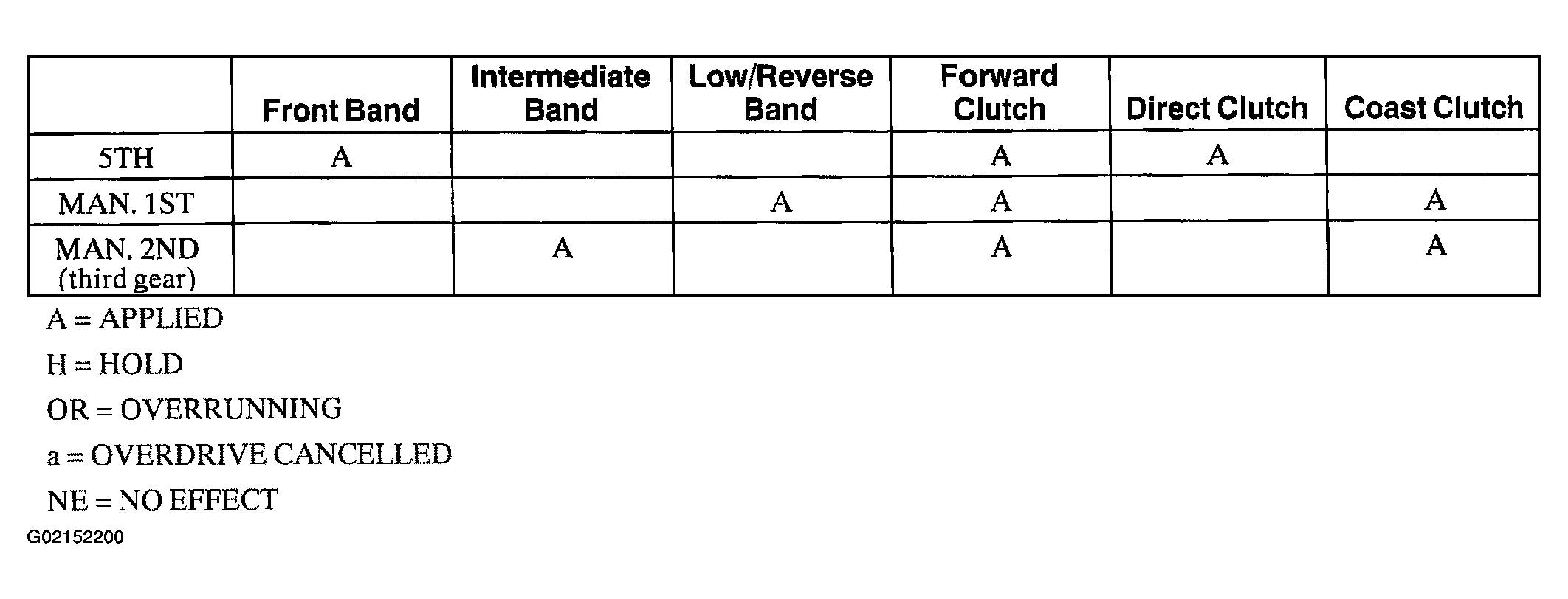

Fig 3: Band/Clutch Application Chart (3 Of 3)

Courtesy of FORD MOTOR CO.
