Transmission Insulator & Retainer: Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission mount.
    1. Position the transmission mount on the extension housing.
    2. Install the transmission mount-to-extension housing screws.

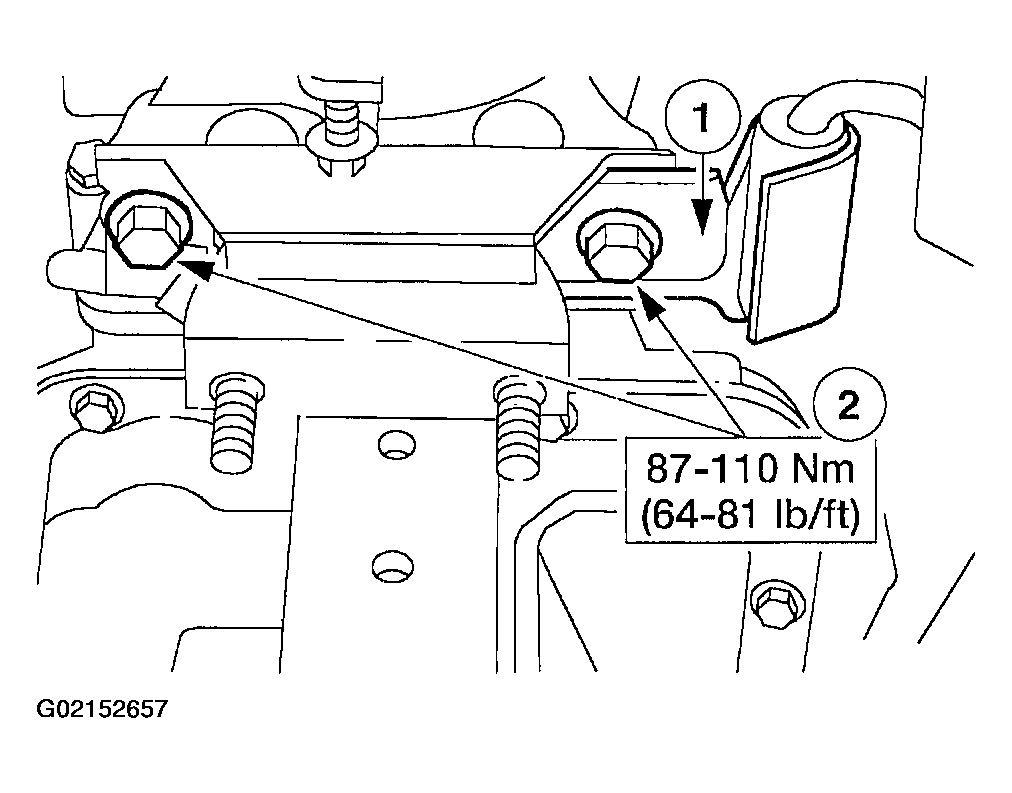

    Fig 1: Installing Transmission Mount-To-Extension Housing Screws
    G02152657Courtesy of FORD MOTOR CO.
  2. Install the transmission mount into the crossmember and tighten the nuts.
    Fig 2: Installing Transmission Mount Into Crossmember
    G02152658Courtesy of FORD MOTOR CO.
    3. NOTE: Align the driveshaft with the marks made during removal to ensure correct balance.

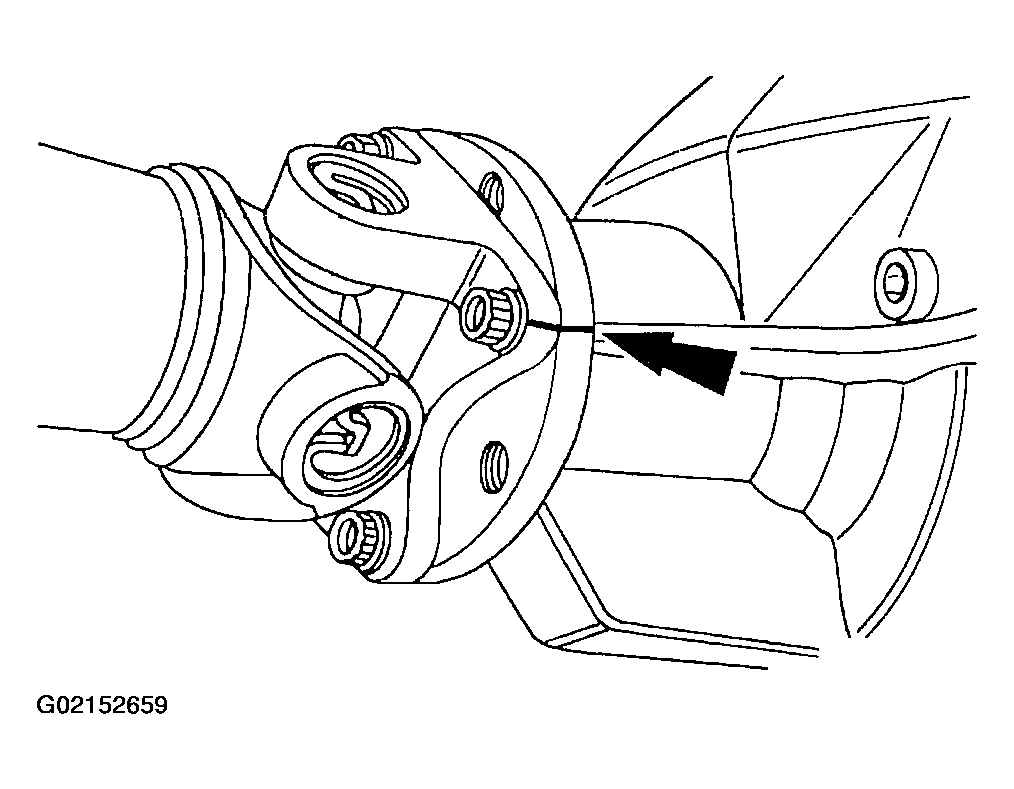

    Fig 3: Installing Rear Driveshaft
    G02152659Courtesy of FORD MOTOR CO.
  3. Align and install the rear driveshaft.
  4. Install the bolts.

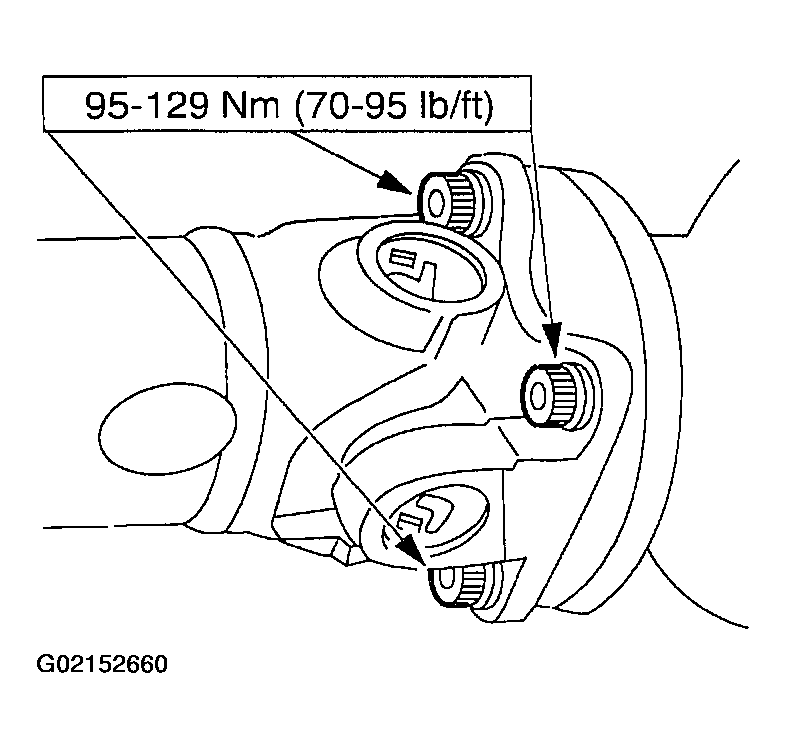

    Fig 4: Installing Bolts
    G02152660Courtesy of FORD MOTOR CO.
  5. Lower the vehicle.
