Output Shaft Speed (OSS) Sensor: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Disconnect Output Shaft Speed (OSS) sensor electrical connector.

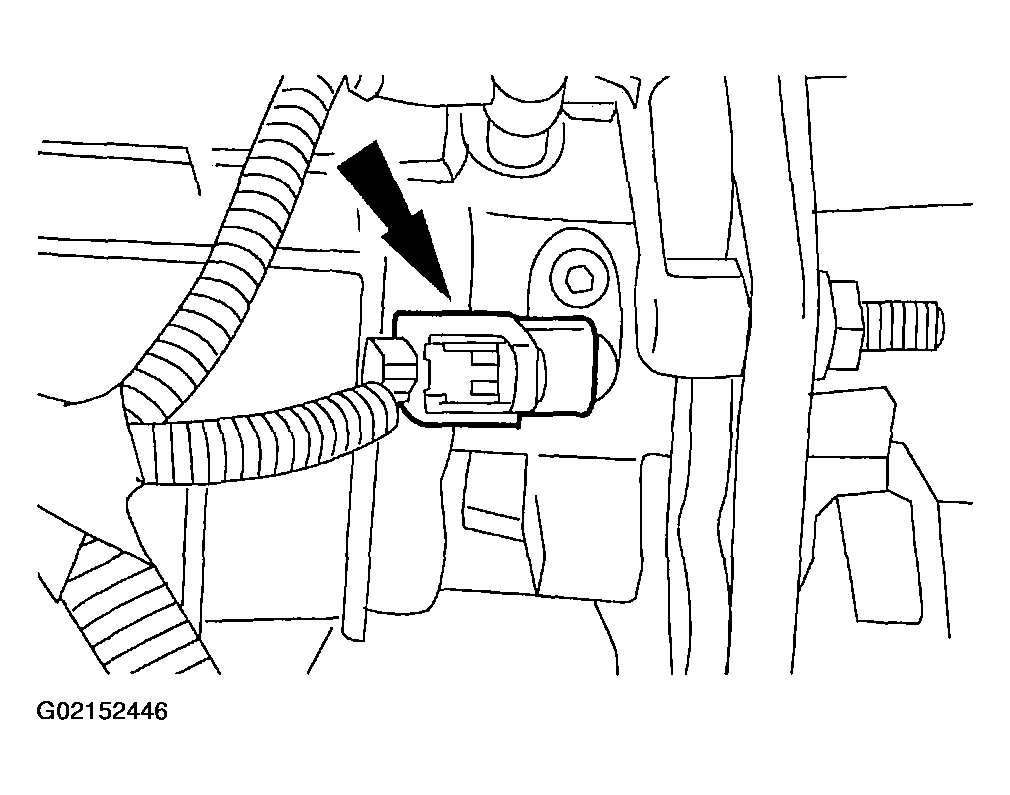

    Fig 1: Disconnecting OSS Sensor Electrical Connector
    G02152446Courtesy of FORD MOTOR CO.
  3. Remove OSS sensor.
    1. Remove the OSS sensor screw.
    2. Remove the OSS sensor from the transmission.
      • Inspect the OSS sensor O-ring for damage. If damaged, install a new O-ring.

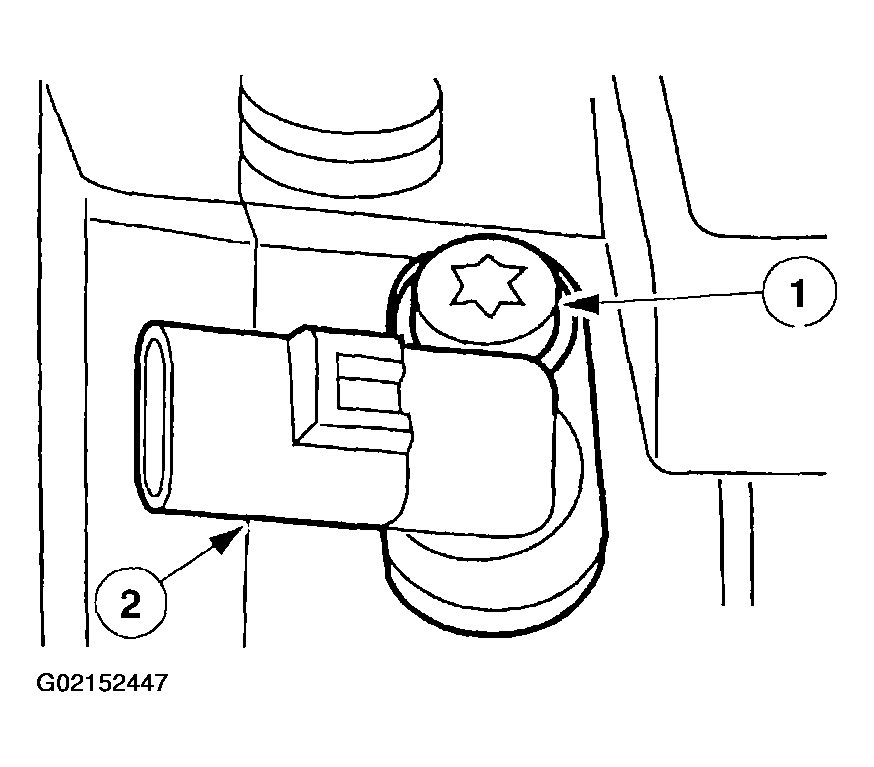

    Fig 2: Removing OSS Sensor
    G02152447Courtesy of FORD MOTOR CO.
