Intermediate Shaft Speed (ISS) Sensor: Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect and lubricate O-ring with petroleum jelly.
    1. Install the ISS sensor into the transmission.
    2. Tighten ISS sensor screw.

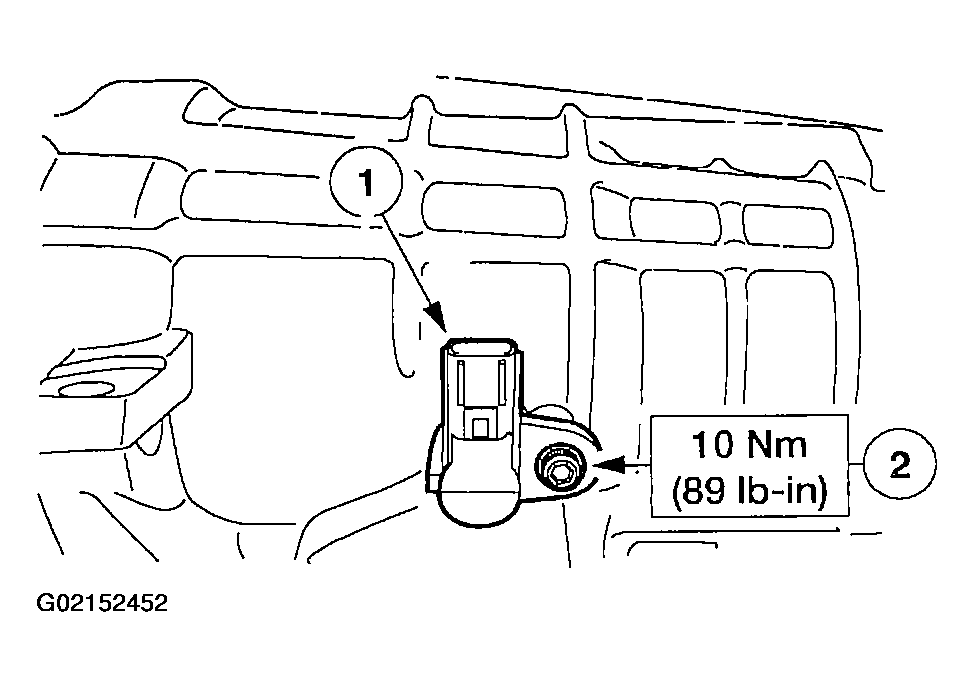

    Fig 1: Installing ISS Sensor
    G02152452Courtesy of FORD MOTOR CO.
  2. Connect ISS sensor electrical connector.

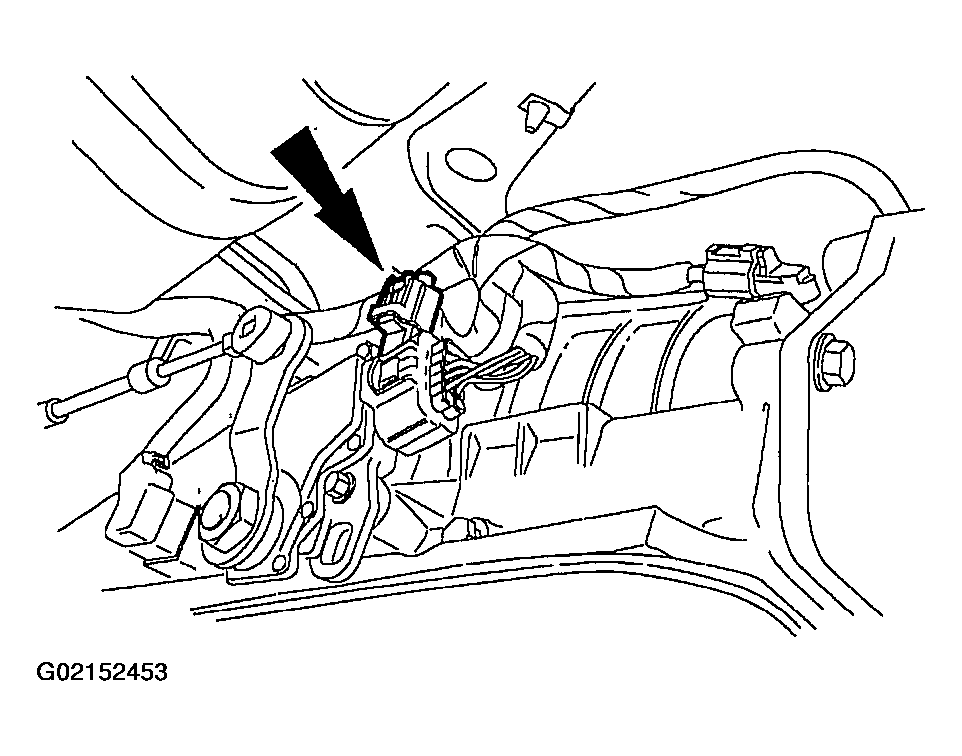

    Fig 2: Connecting ISS Sensor Electrical Connector
    G02152453Courtesy of FORD MOTOR CO.
  3. Lower the vehicle.
