Heat Shield: Removal

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. If equipped, remove the transmission servo heat shield.
    1. Remove the transmission servo heat shield nut.
    2. Remove the transmission servo heat shield.

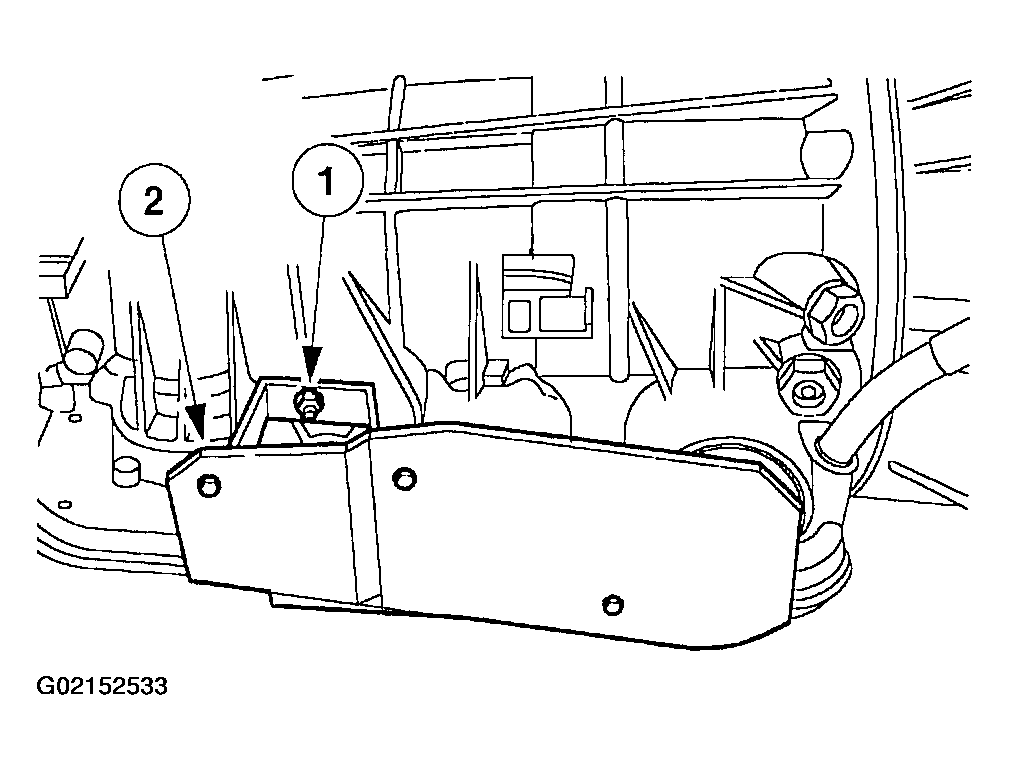

    Fig 1: Removing Transmission Servo Heat Shield
    G02152533Courtesy of FORD MOTOR CO.
