Heat Shield: Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Follow the removal procedure in reverse order.

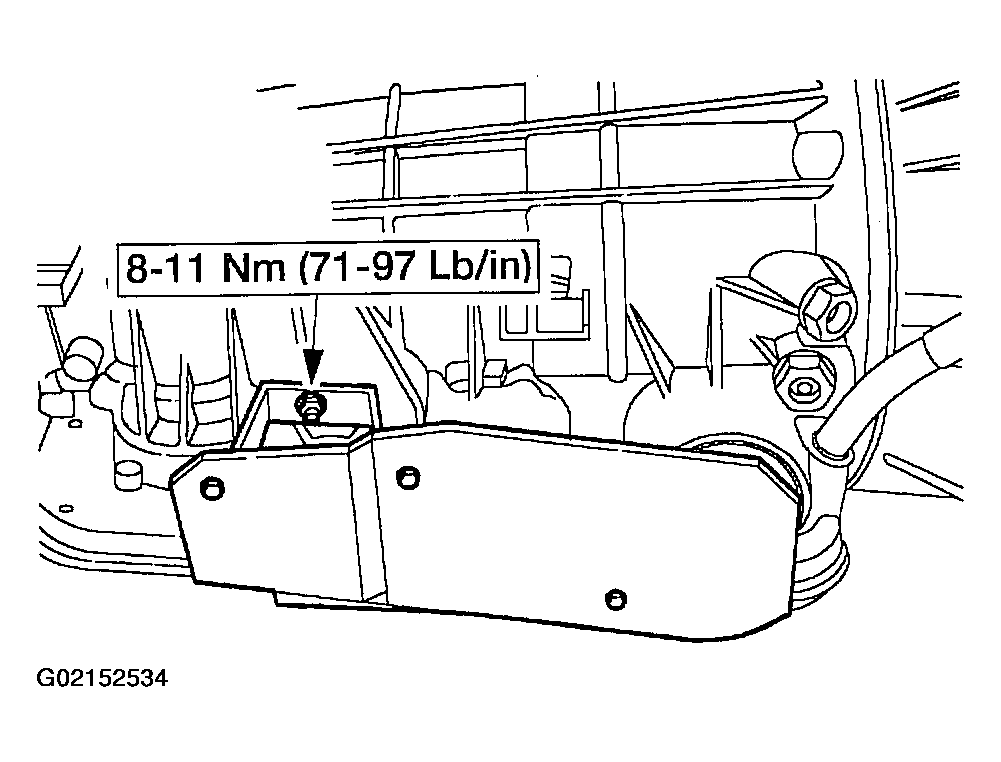

    Fig 1: Installing Transmission Servo Heat Shield
    G02152534Courtesy of FORD MOTOR CO.
