Torque Converter Impeller To Pump Stator Interference Check

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The bearing type pump is shown, the seal type pump is similar. Use this procedure for transmissions equipped with a bearing or seal type converter housing fluid pump.
  1. Install fluid pump support into torque converter. Engage splines of the one-way clutch inner race with the mating splines of the front pump support.

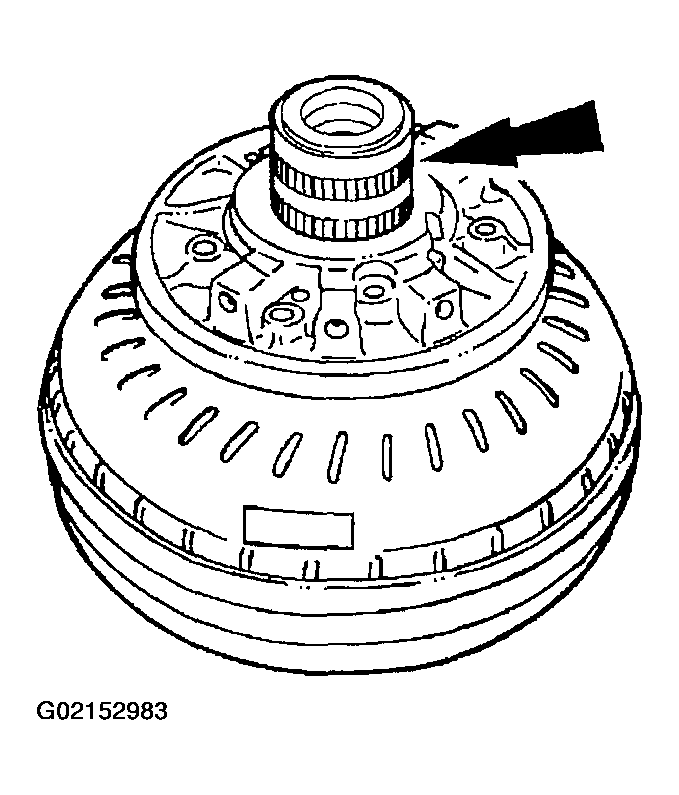

    Fig 1: Installing Fluid Pump Support Into Torque Converter
    G02152983Courtesy of FORD MOTOR CO.
  2. While holding the fluid pump support stationary, rotate the torque converter clockwise and counter-clockwise. The torque converter should rotate freely with no signs of scraping. If there are signs of scraping, install a new or remanufactured torque converter.

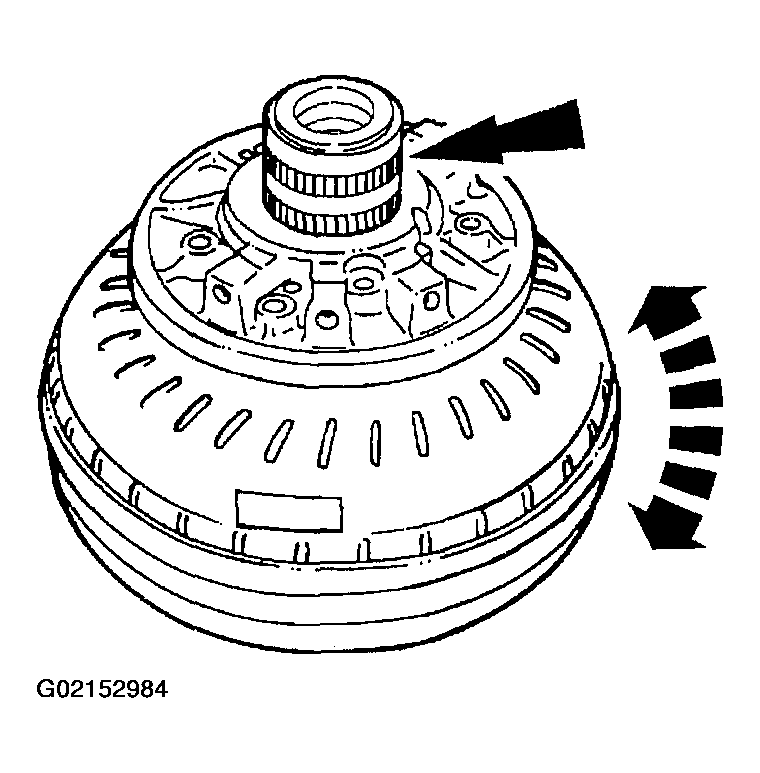

    Fig 2: Rotating Torque Converter Clockwise & Counter-Clockwise
    G02152984Courtesy of FORD MOTOR CO.
