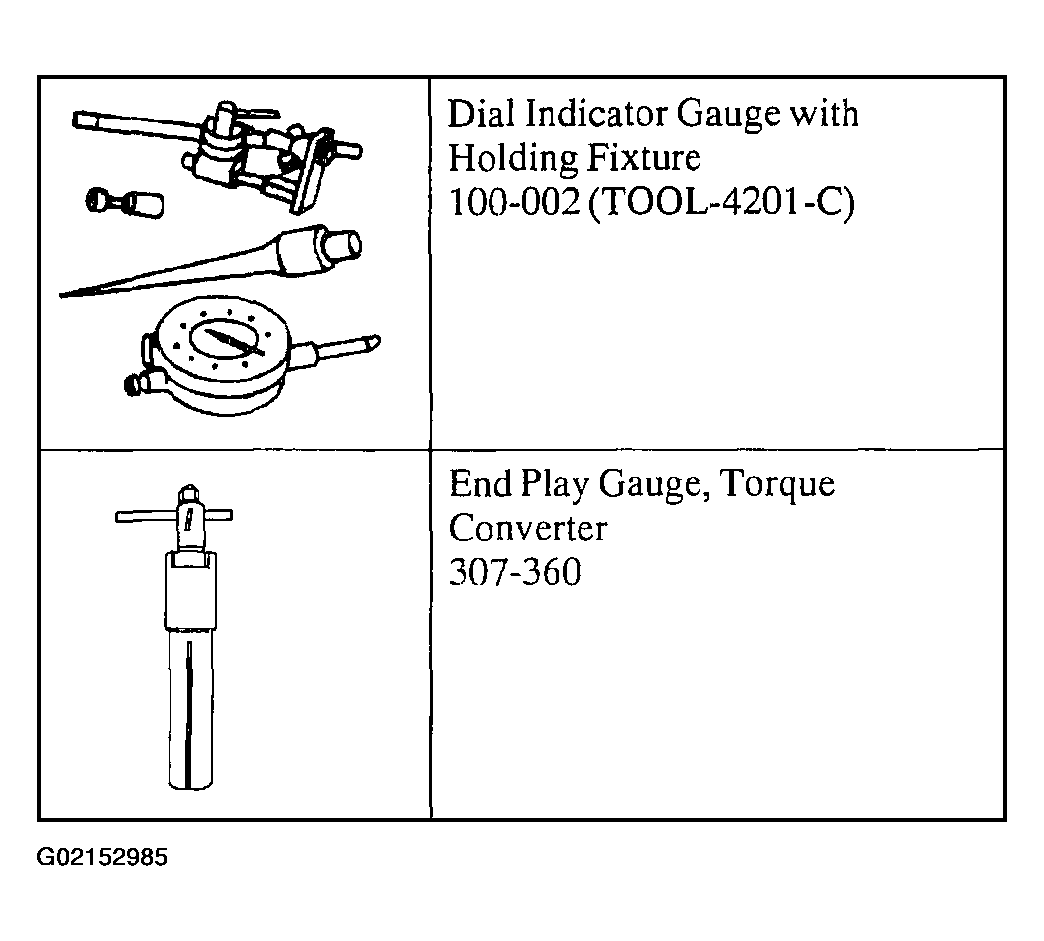

Special Tool(s)

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

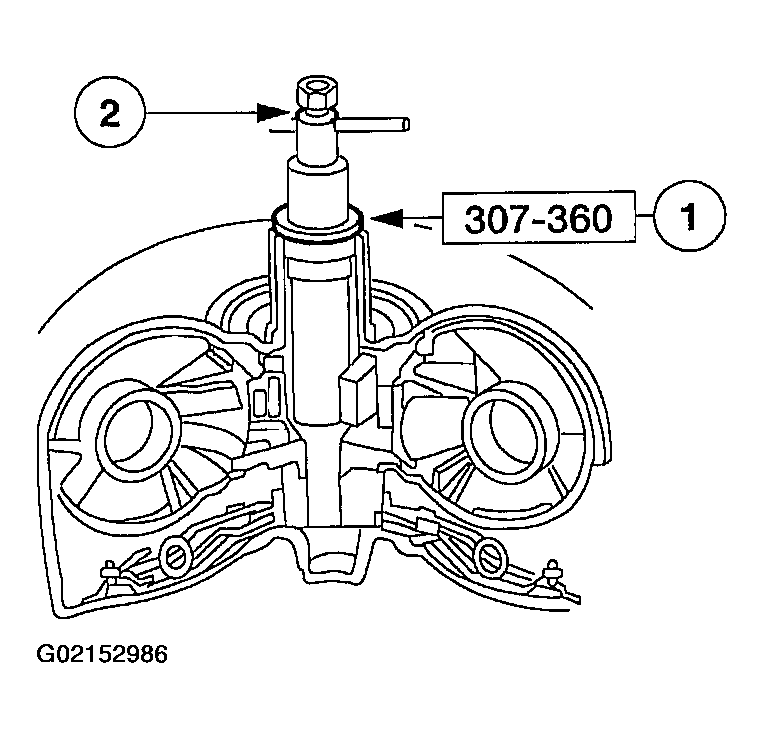

Install special tool into the torque converter.
1. Insert special tool into the torque converter until it bottoms.
2. Tighten the inner post until the tool is securely locked.
Fig 2: Installing Special Tool Into Torque Converter
Courtesy of FORD MOTOR CO.

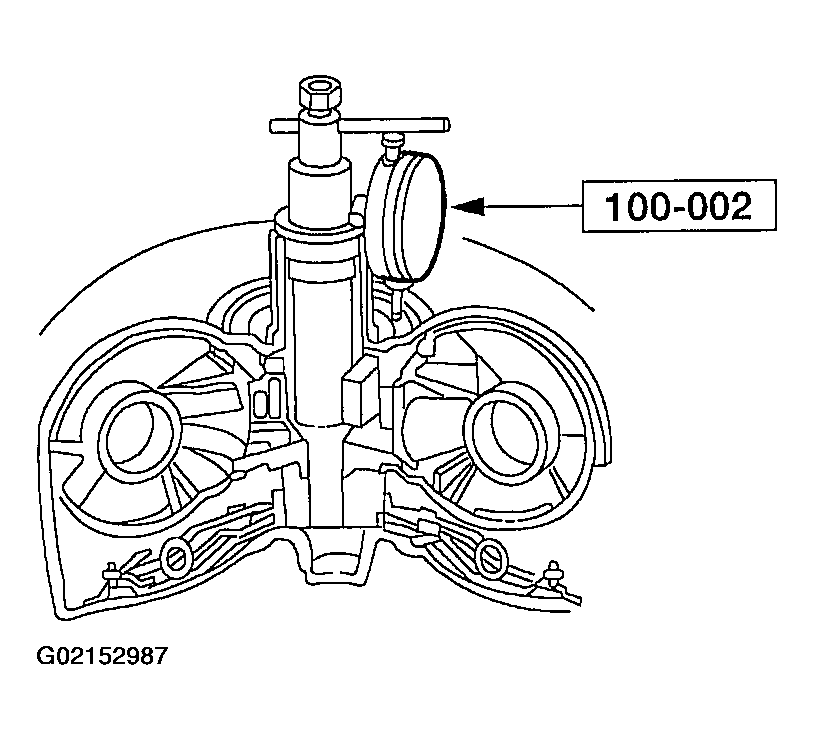

Install the special tool as shown. Position the dial indicator bottom on the converter impeller housing and zero the dial.

Fig 3: Zeroing Dial Indicator
Courtesy of FORD MOTOR CO.

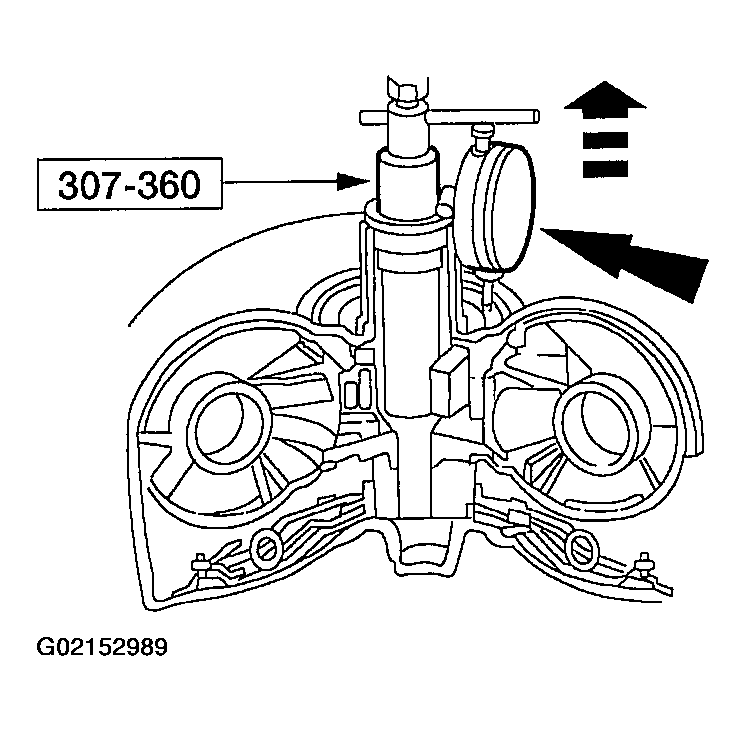

Lift up on the special tool and note the dial indicator reading. If the reading exceeds end play limits, install a new or remanufactured torque converter.

Fig 4: Checking Torque Converter End Play
Courtesy of FORD MOTOR CO.

Fig 5: Torque Converter End Play
Courtesy of FORD MOTOR CO.
