Output Shaft Ring Gear & Hub Shaft Assembly: Assembly

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the output shaft hub onto the output shaft ring gear.
    1. Install the output shaft hub.
    2. Install the retaining ring.

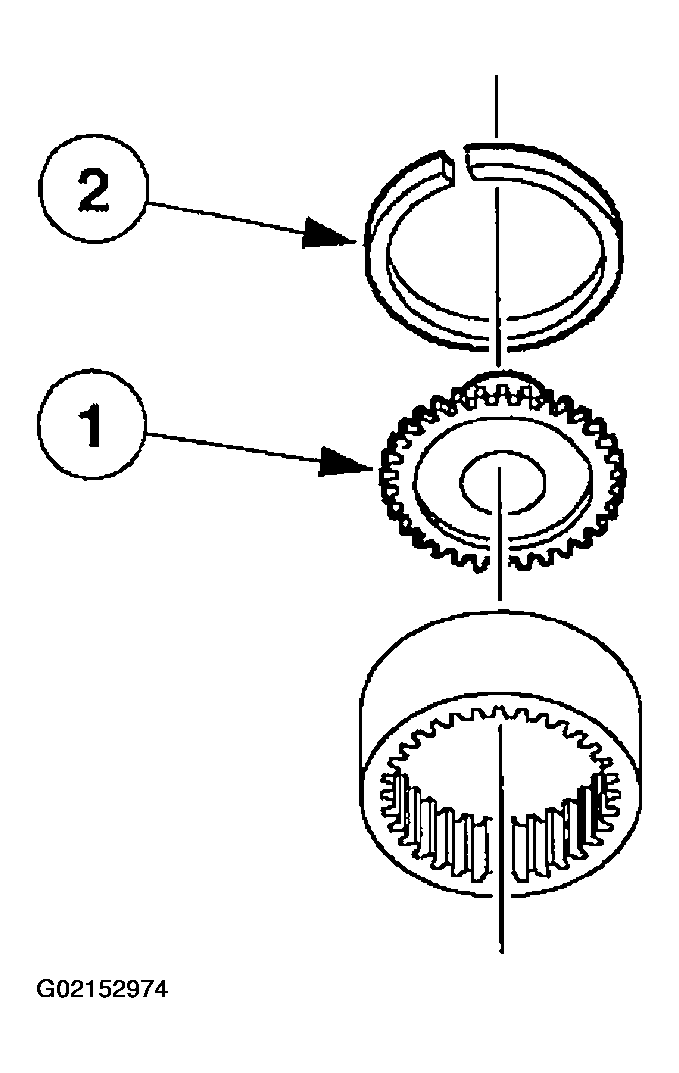

    Fig 1: Installing Output Shaft Hub Onto Output Shaft Ring Gear
    G02152974Courtesy of FORD MOTOR CO.
  2. Install the No. 10A needle bearing race assembly.
    • Snap the needle bearing race assembly onto the output shaft hub.

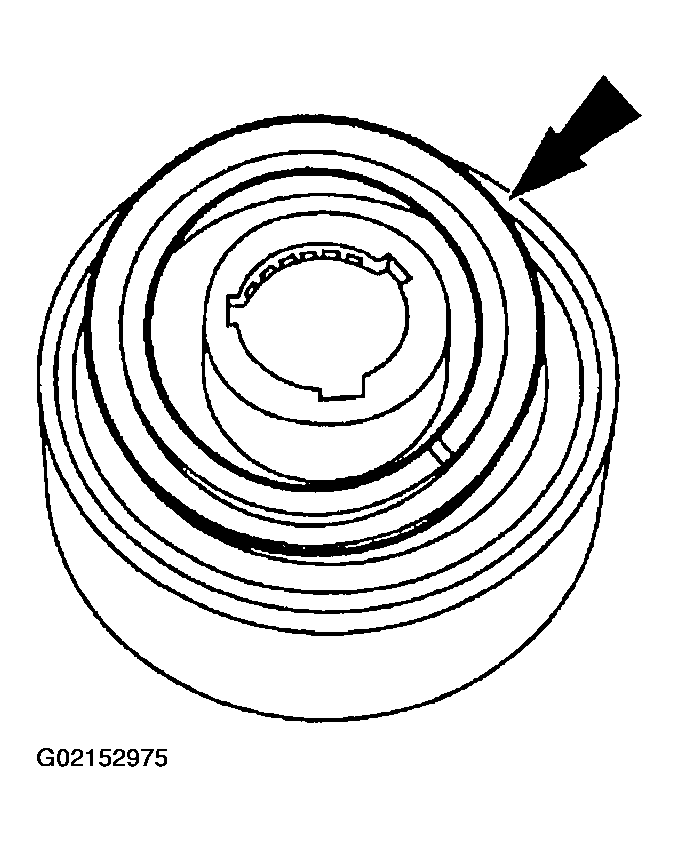

    Fig 2: Installing Needle Bearing Race Assembly
    G02152975Courtesy of FORD MOTOR CO.
    3. NOTE: Use petroleum jelly to hold the needle bearing to the output shaft ring gear and output shaft hub.

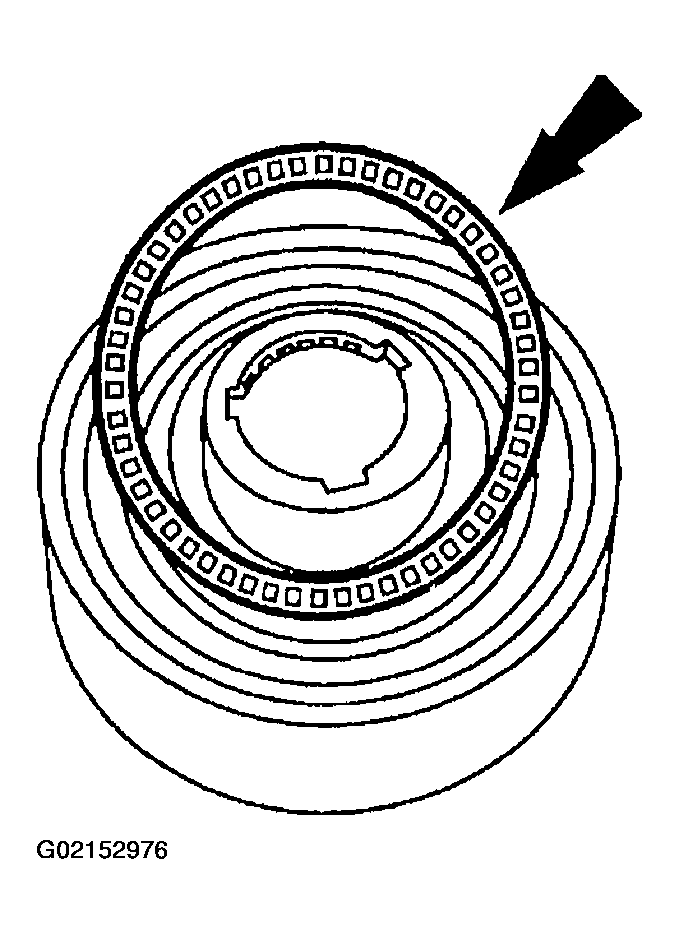

    Fig 3: Installing Needle Bearing Onto Output Shaft Ring Gear & Output Shaft Hub
    G02152976Courtesy of FORD MOTOR CO.
  3. Install the No. 10B needle bearing onto output shaft ring gear and output shaft hub.
