Special Tool(s)

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

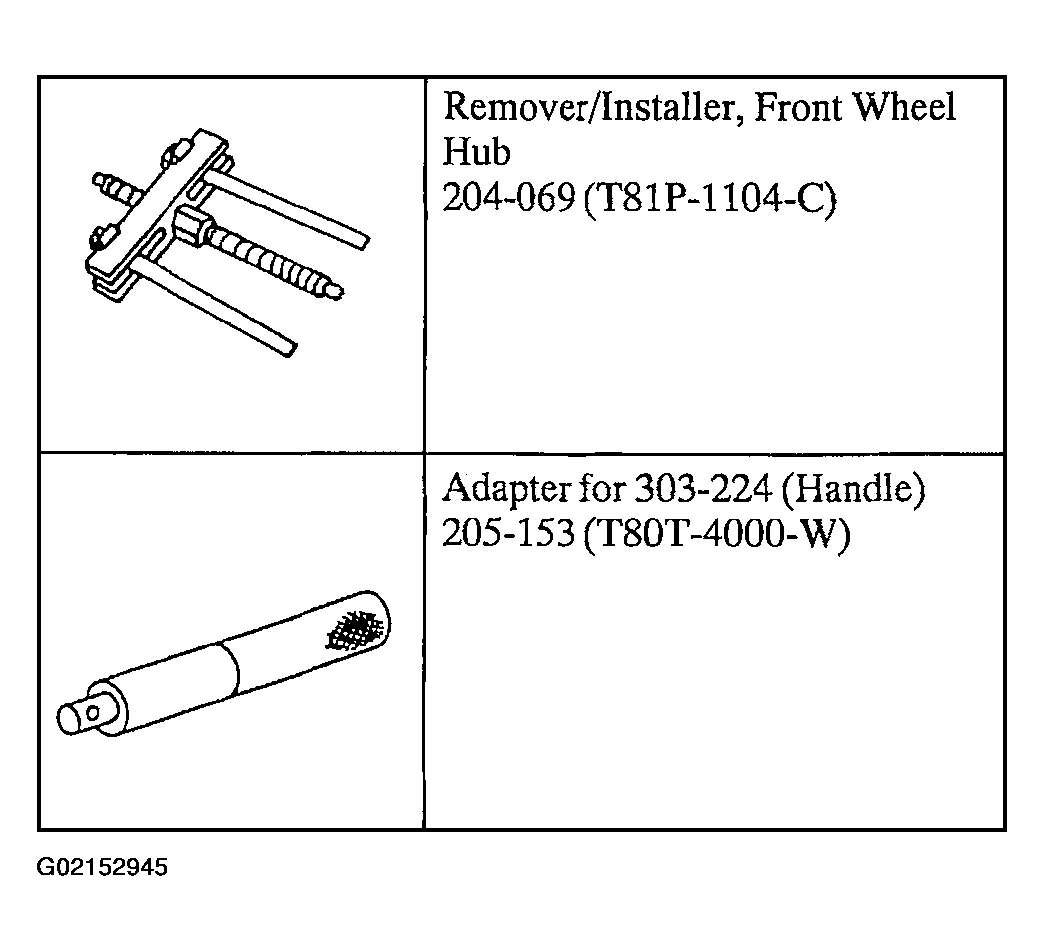

Fig 1: Identifying Special Tool(s) (1 Of 3)

Courtesy of FORD MOTOR CO.

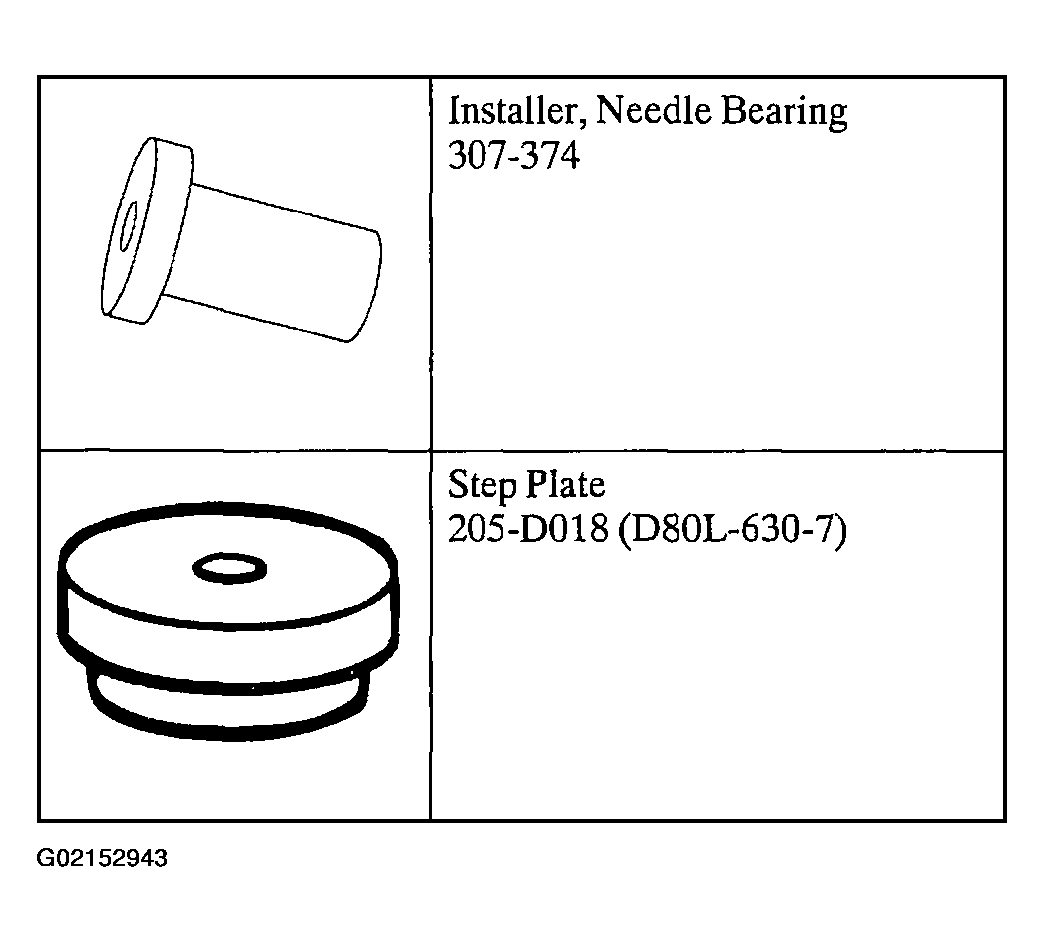

Fig 2: Identifying Special Tool(s) (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Special Tool(s) (3 Of 3)

Courtesy of FORD MOTOR CO.

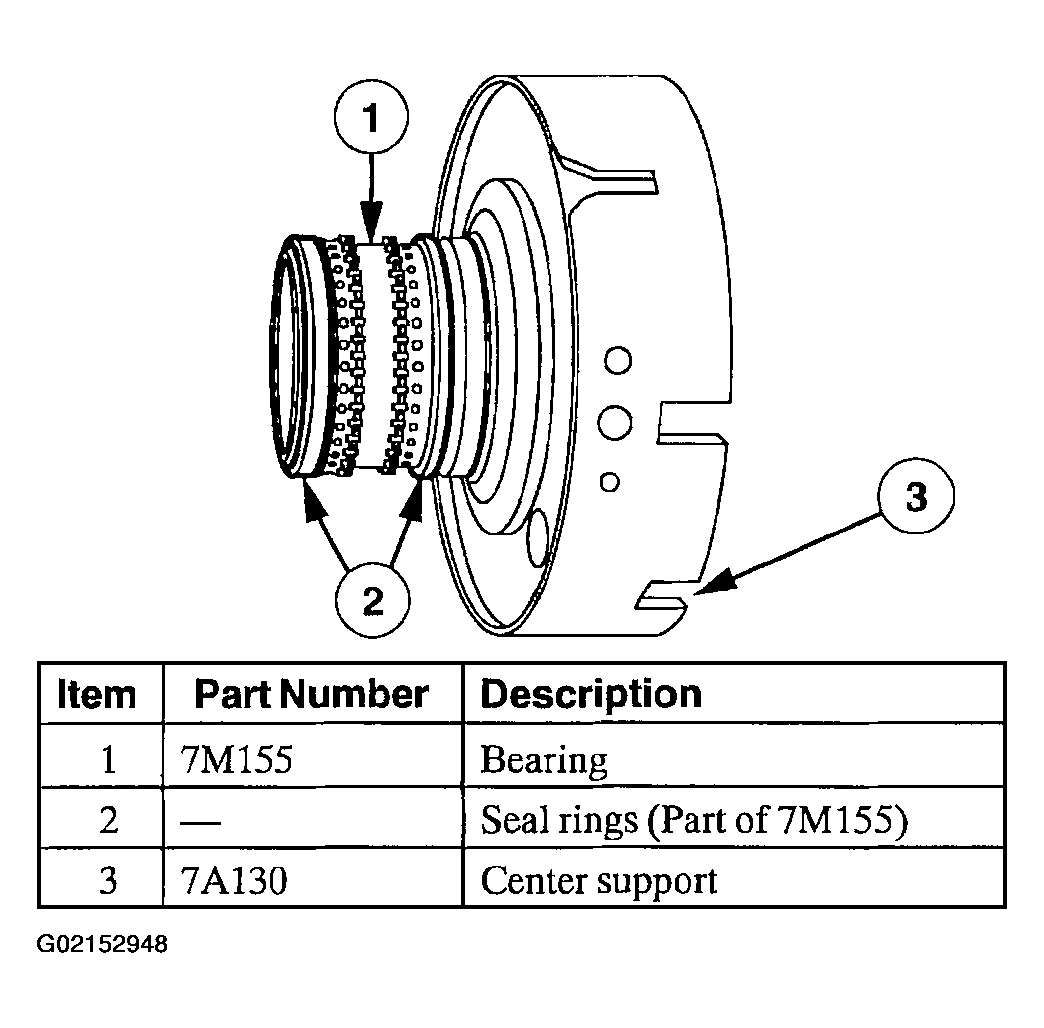

Fig 4: Identifying Center Support Assembly Components

Courtesy of FORD MOTOR CO.

NOTE: Thoroughly clean center support assembly and blow dry with compressed air.

NOTE: The center support is serviced as an assembly. Any damage requires installation of a new component.

Inspect the center support assembly for wear or damage.
1. Inspect the thrust surfaces for wear, scoring or damage.
2. Inspect the center support sealing surface.
3. Inspect the fluid passage for blockage or damage.
Fig 5: Inspecting Center Support Assembly
Courtesy of FORD MOTOR CO.

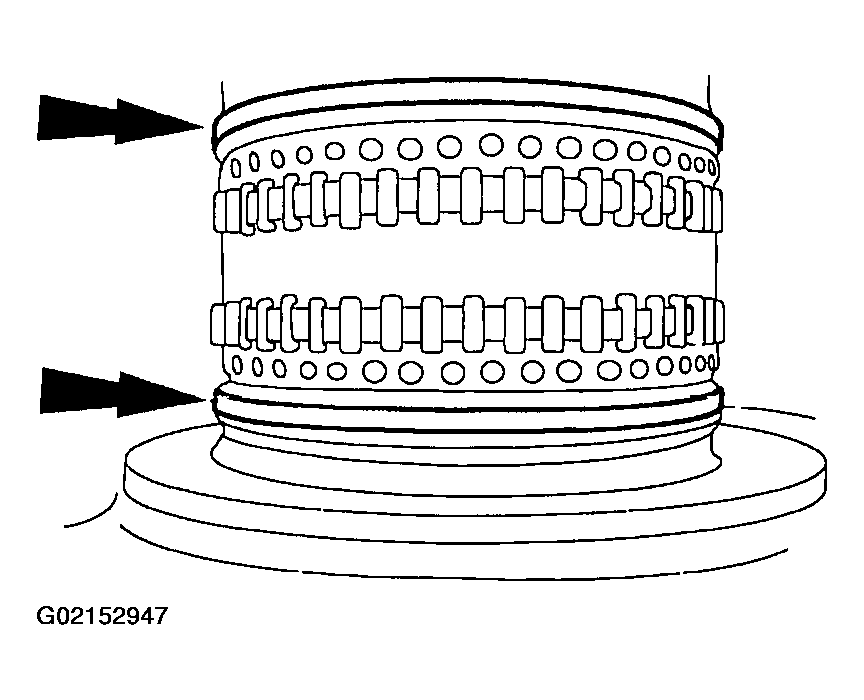

Inspect the seal rings for damage.

Fig 6: Inspecting Seal Rings
Courtesy of FORD MOTOR CO.

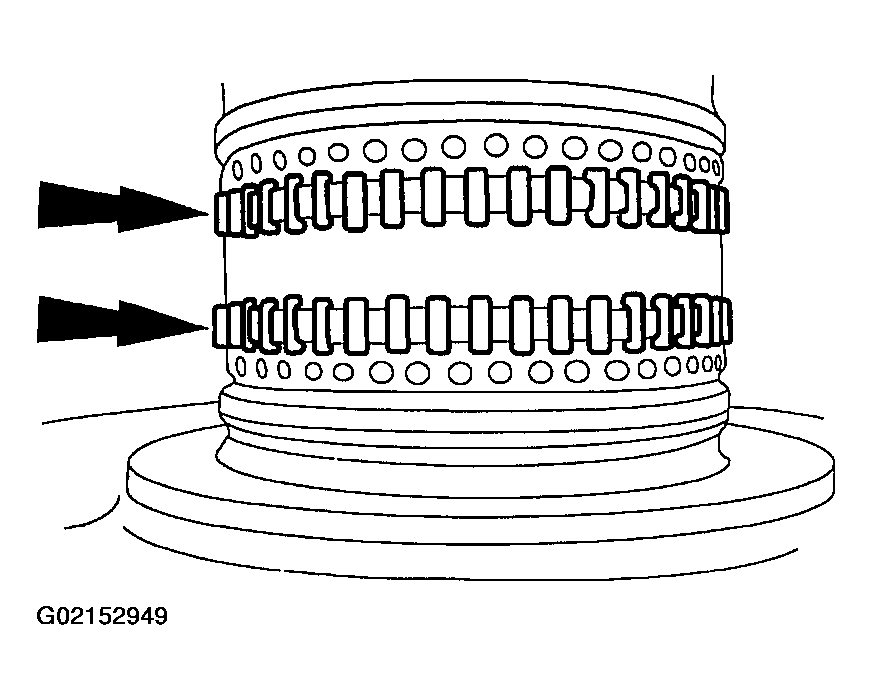

Inspect the bearing for missing rollers or damage.

Fig 7: Inspecting Bearing For Missing Rollers Or Damage
Courtesy of FORD MOTOR CO.

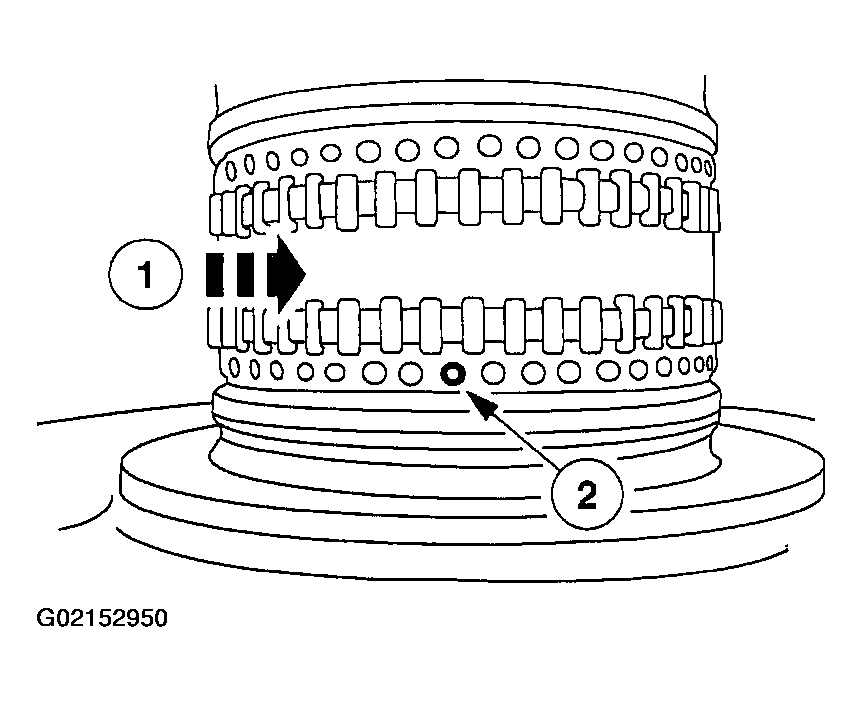

Inspect the direct clutch feed hole for blockage or damage.
1. Rotate center support bearing to locate the direct clutch feed hole.
2. Inspect the direct clutch feed hole for blockage or damage.
Fig 8: Inspecting Direct Clutch Feed Hole
Courtesy of FORD MOTOR CO.

NOTE: Carry out the rest of the procedure only if there is damage to the bearing.

NOTE: Inspect the needle bearing for damage and install new if necessary.

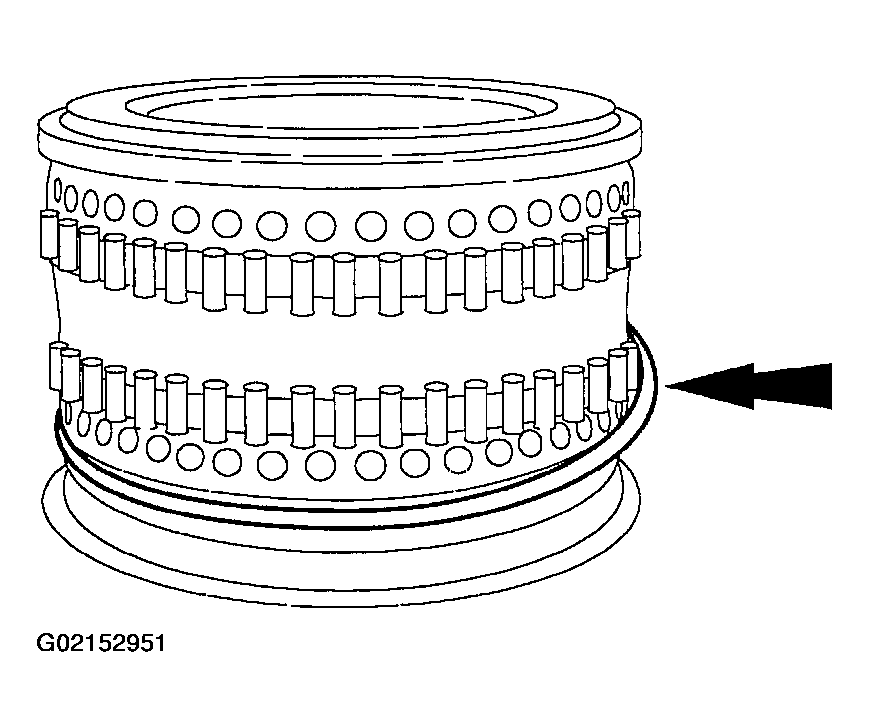

Fig 9: Removing Lower Seal

Courtesy of FORD MOTOR CO.

Remove the lower seal.
Assemble the special tools onto the center support.

Fig 10: Assembling Special Tools Onto Center Support
Courtesy of FORD MOTOR CO.

CAUTION: Do not overtighten the tool or damage to the bearing may occur.

NOTE: The special tool must fit into the lower seal groove.

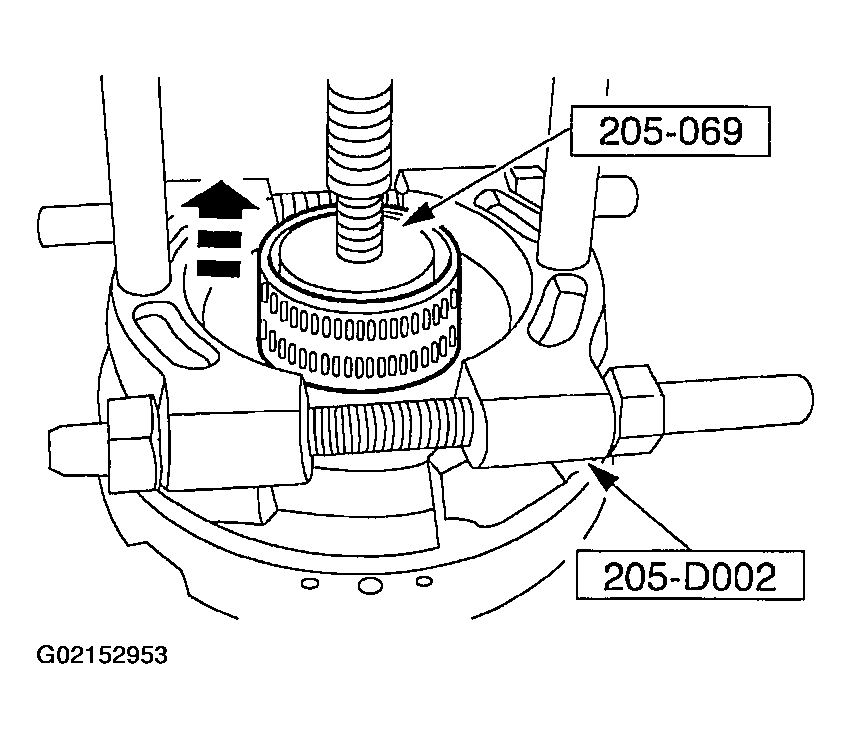

Fig 11: Removing Needle Bearing

Courtesy of FORD MOTOR CO.

Using the special tools, remove the needle bearing.
Inspect the front pump outer race for scoring or nicks. If any damage is found installation of a new pump assembly will be needed.

Fig 12: Inspecting Front Pump Outer Race For Scoring Or Nicks
Courtesy of FORD MOTOR CO.
