Pinpoint Test E: Turbine Shaft Speed (TSS), Intermediate Shaft Speed (ISS), & Output Shaft Speed (OSS) Sensors

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the Turbine Shaft Speed (TSS), Intermediate Shaft Speed (ISS), and Output Shaft Speed (OSS) sensor connector illustrations. See Figure, Figure and Figure.

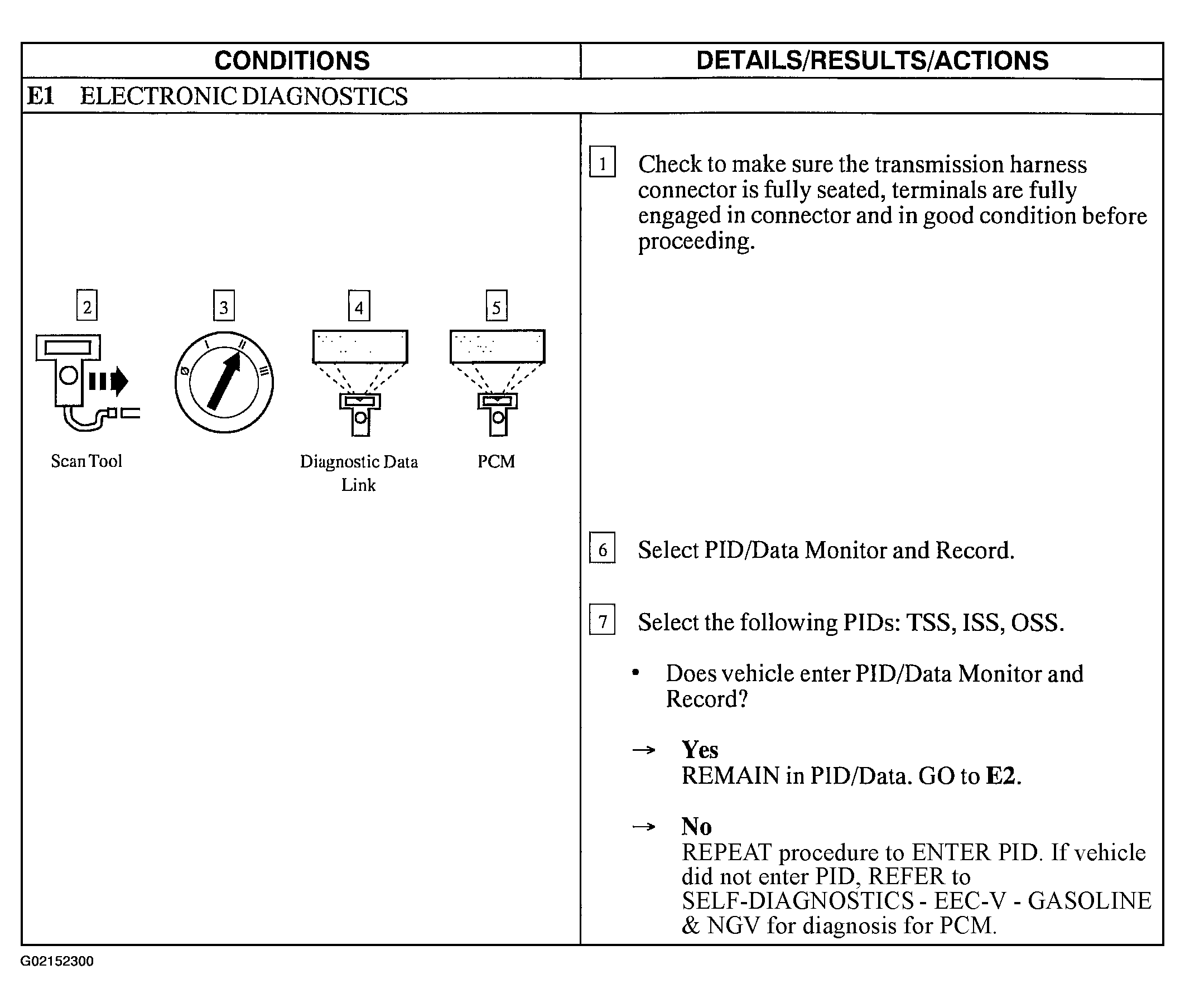

Fig 1: Pinpoint Test E: Turbine Shaft Speed (TSS), Intermediate Shaft Speed (ISS) & Output Shaft Speed (OSS) Sensors (E1)
G02152300Courtesy of FORD MOTOR CO.

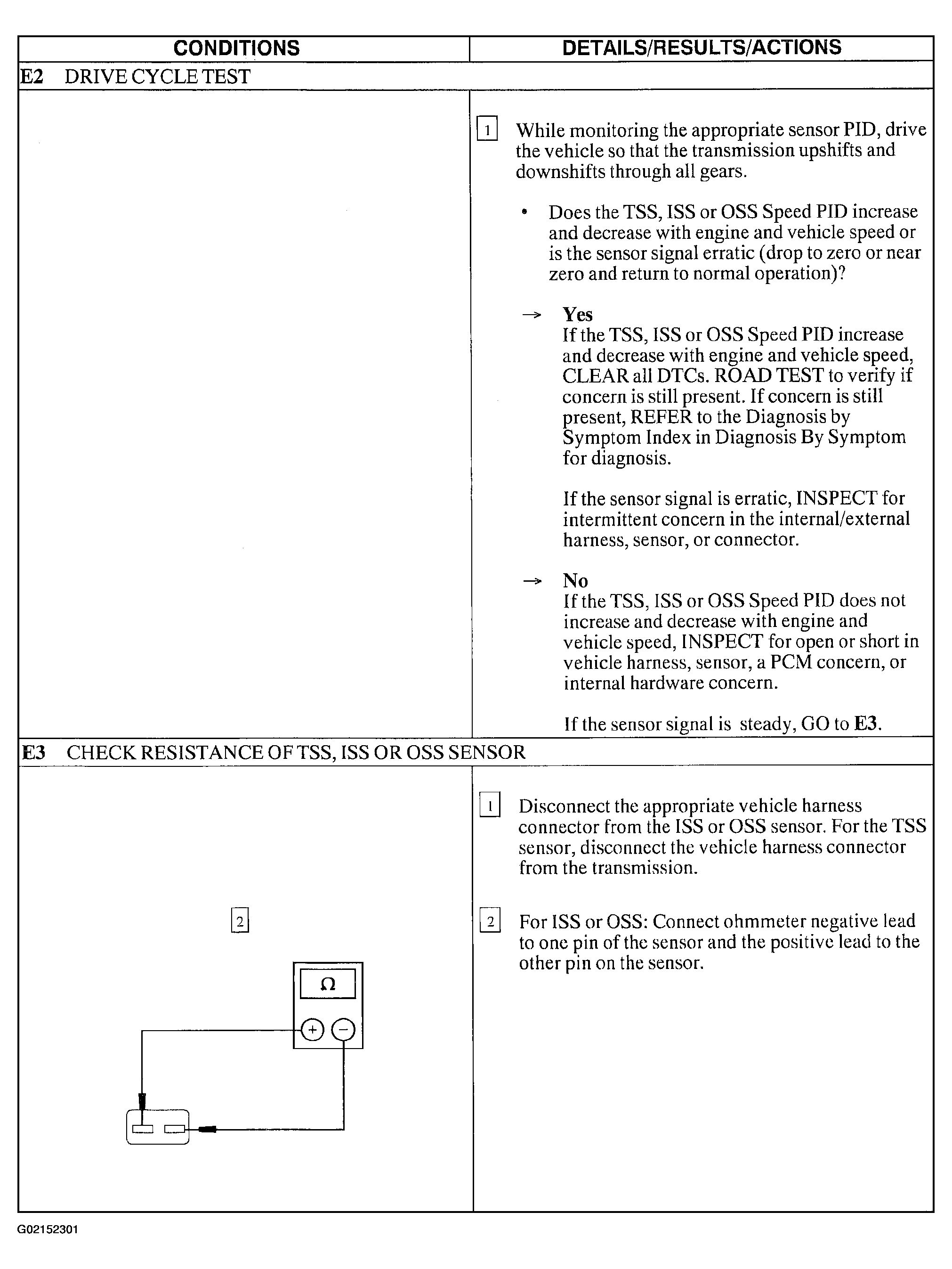

Fig 2: Pinpoint Test E: Turbine Shaft Speed (TSS), Intermediate Shaft Speed (ISS) & Output Shaft Speed (OSS) Sensors (E2-E3)
G02152301Courtesy of FORD MOTOR CO.

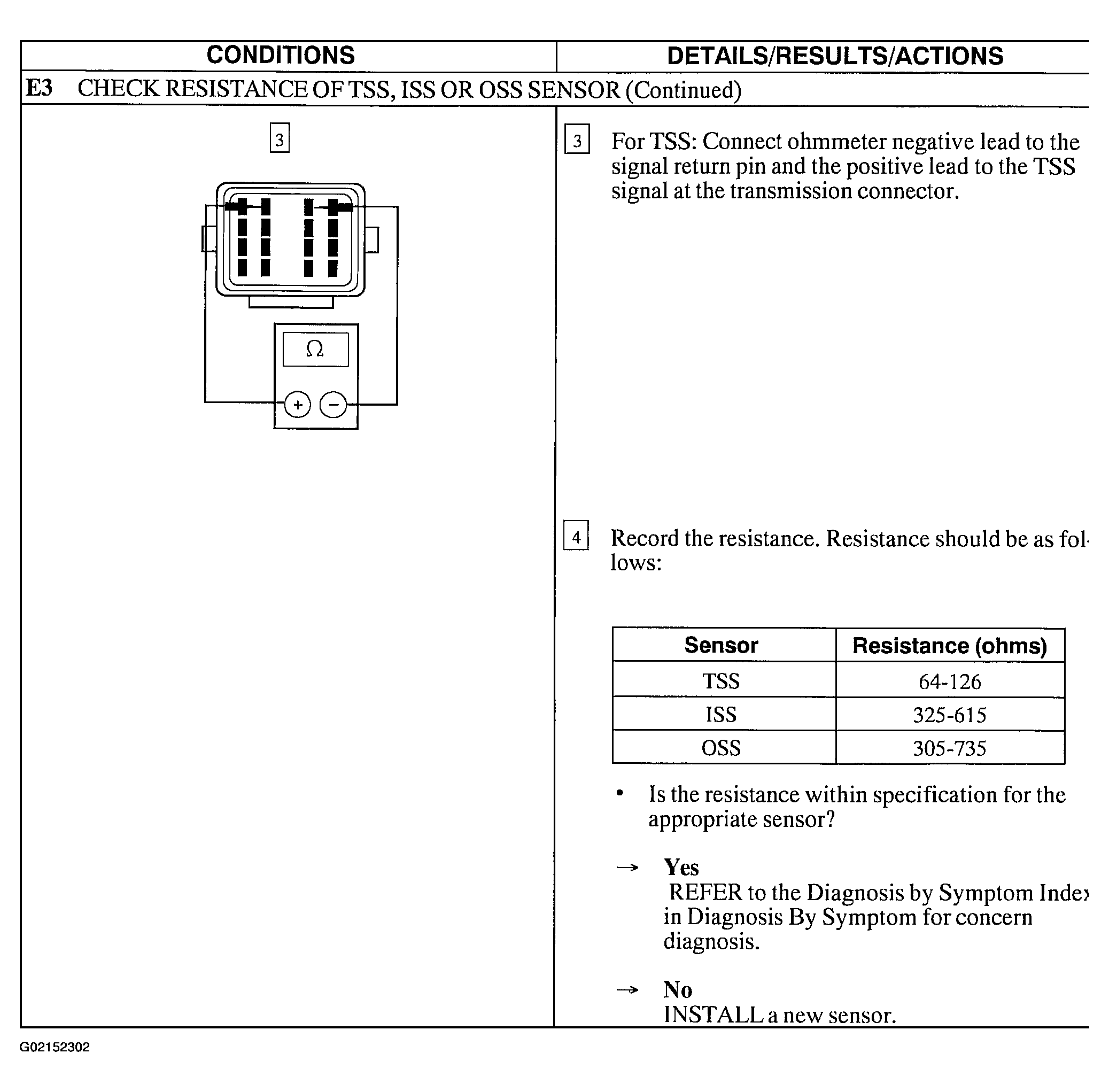

Fig 3: Pinpoint Test E: Turbine Shaft Speed (TSS), Intermediate Shaft Speed (ISS) & Output Shaft Speed (OSS) Sensors (E3)
G02152302Courtesy of FORD MOTOR CO.
