Shift Solenoid Failure Mode Chart "Always Off"

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Failed ON due to Powertrain Control Module (PCM) and/or vehicle wiring concerns, solenoid electrically, mechanically or hydraulically stuck OFF.

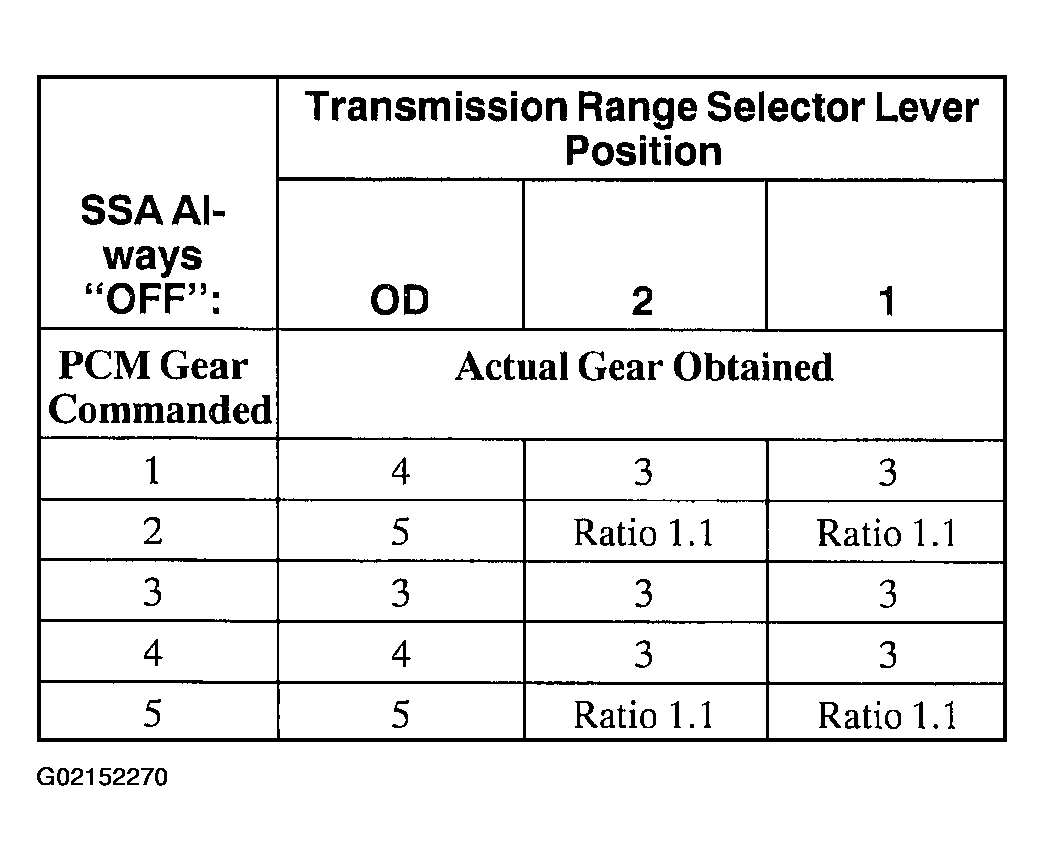

Fig 1: Shift Solenoid Failure Mode Chart - SSA Always Off

Courtesy of FORD MOTOR CO.

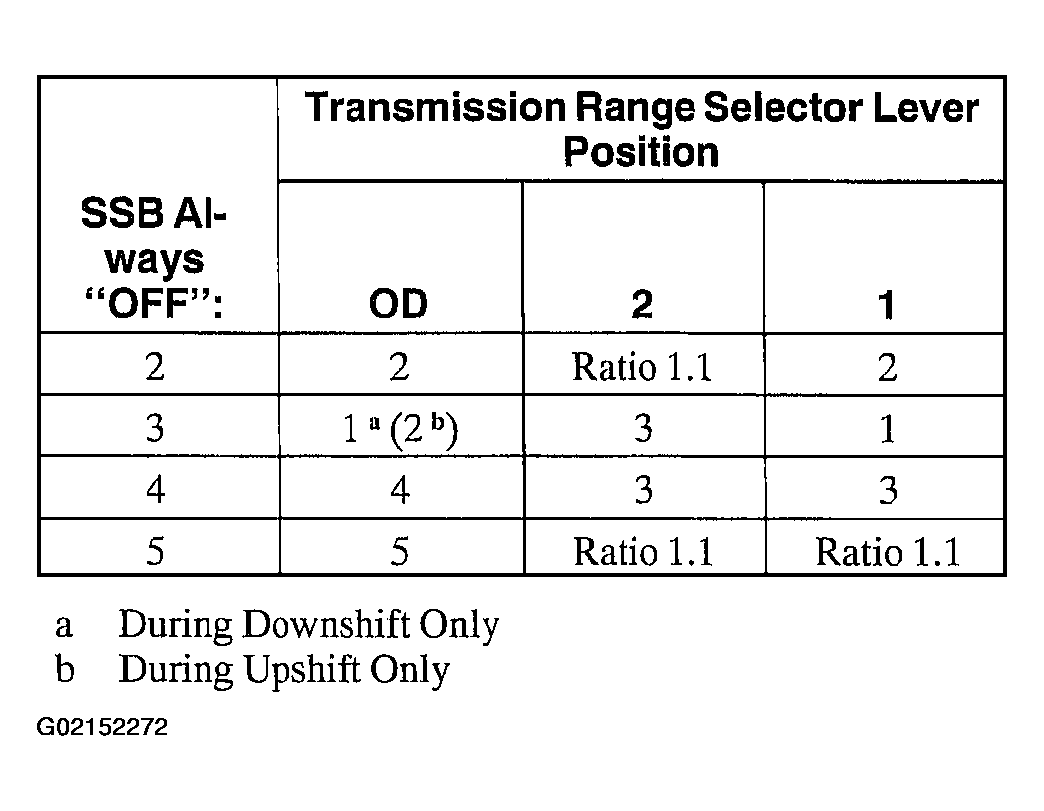

Fig 2: Shift Solenoid Failure Mode Chart - SSB Always Off (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 3: Shift Solenoid Failure Mode Chart - SSB Always Off (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 4: Shift Solenoid Failure Mode Chart - SSC Always Off

Courtesy of FORD MOTOR CO.

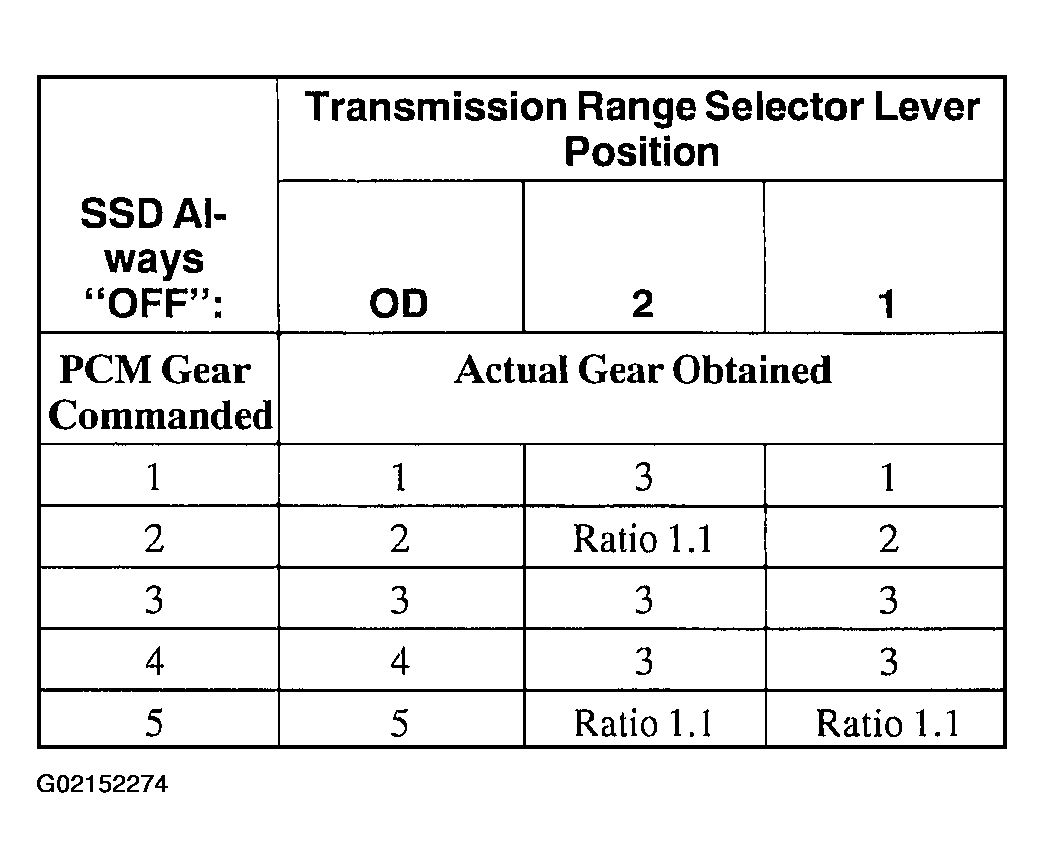

Fig 5: Shift Solenoid Failure Mode Chart - SSD Always Off

Courtesy of FORD MOTOR CO.
