Diagnostic Trouble Code Chart: Notes

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

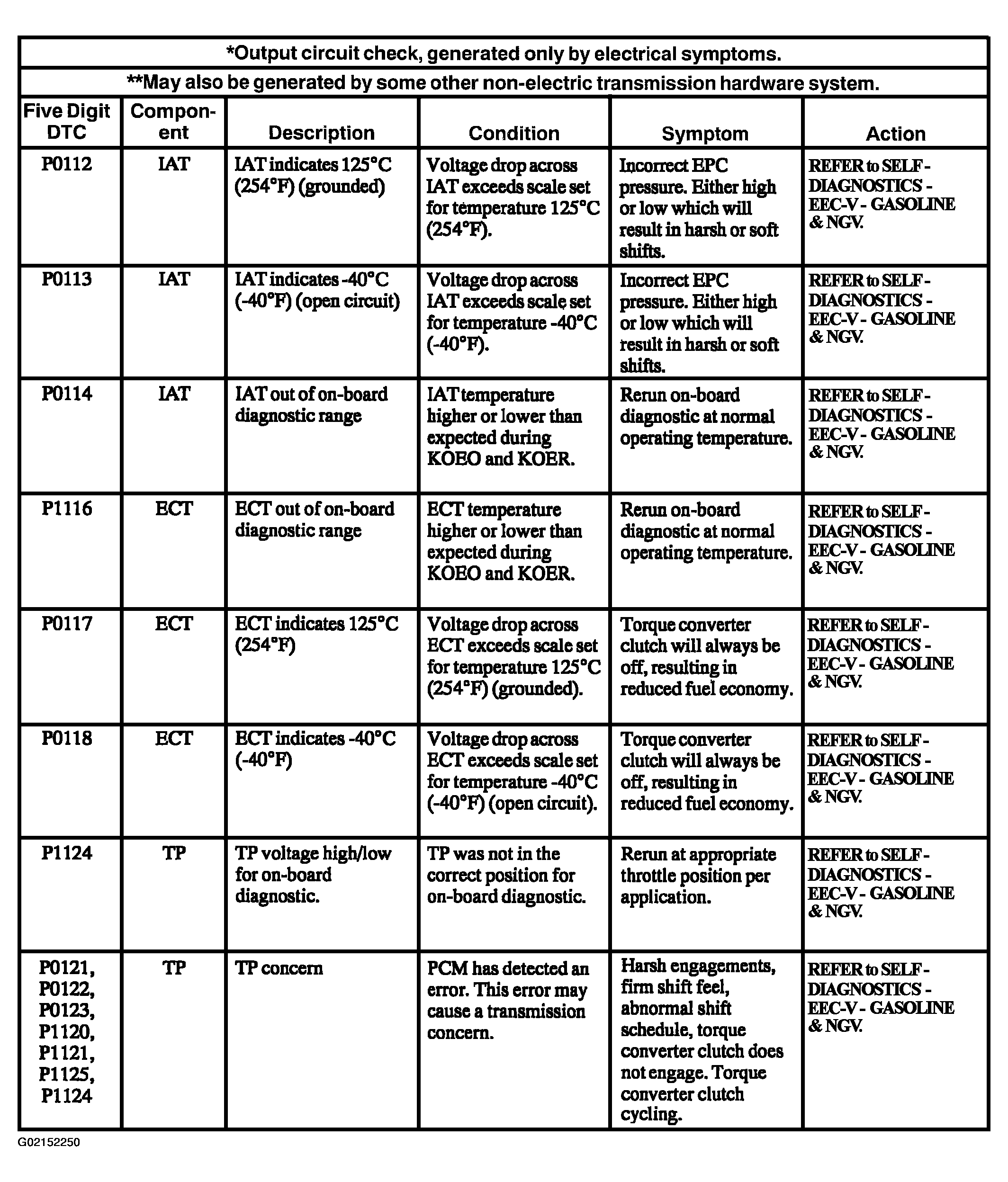

Fig 1: DTC's P0112, P0113, P0114, P1116, P0117, P0118, P1124, P0121, P0122, P0123, P1120, P1121, P1125 & P1124

Courtesy of FORD MOTOR CO.

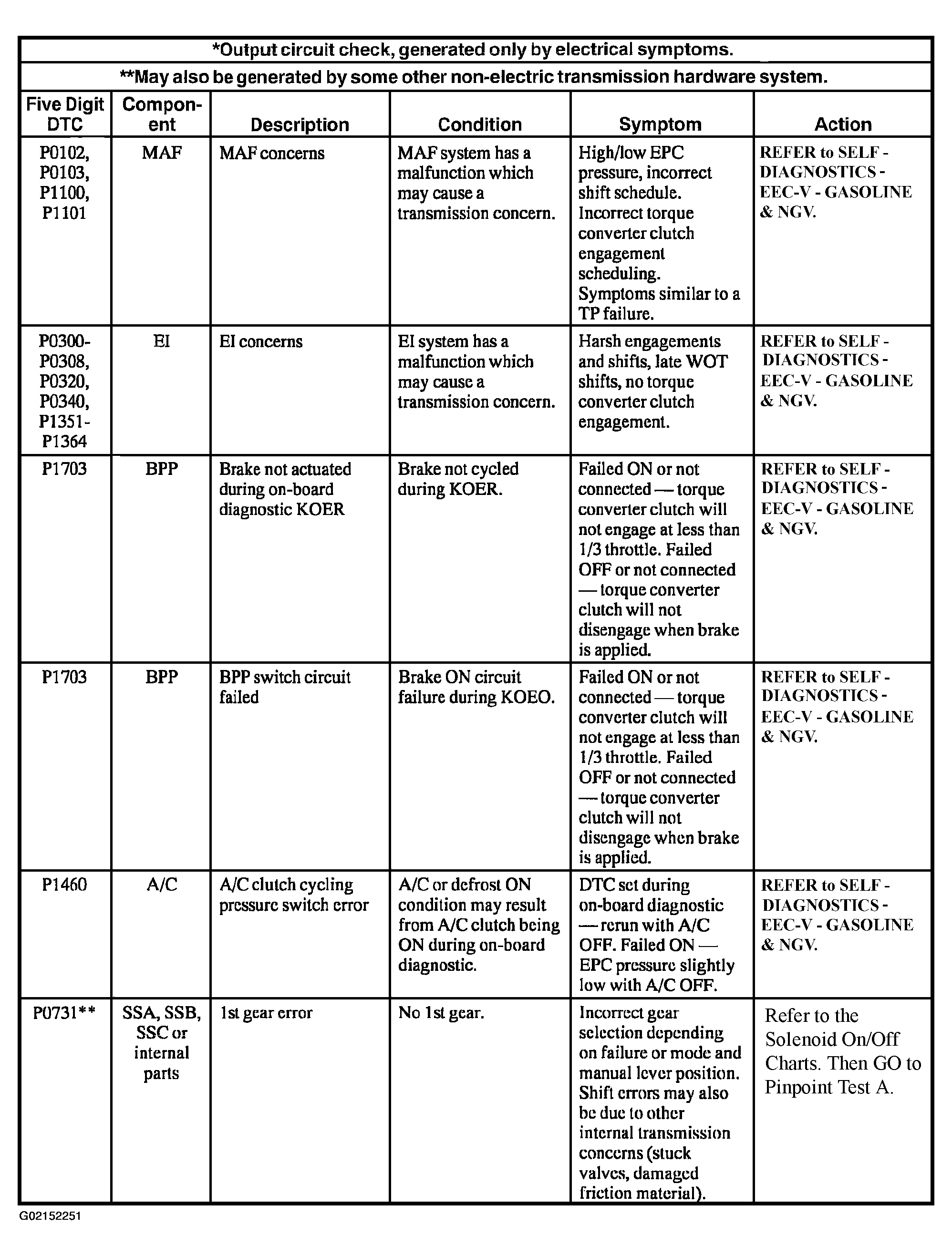

Fig 2: DTC's P0102, P0103, P1100, P1101, P0300-P0308, P0320, P0340, P01351-P1364, P1703, P1460 & P0731

Courtesy of FORD MOTOR CO.

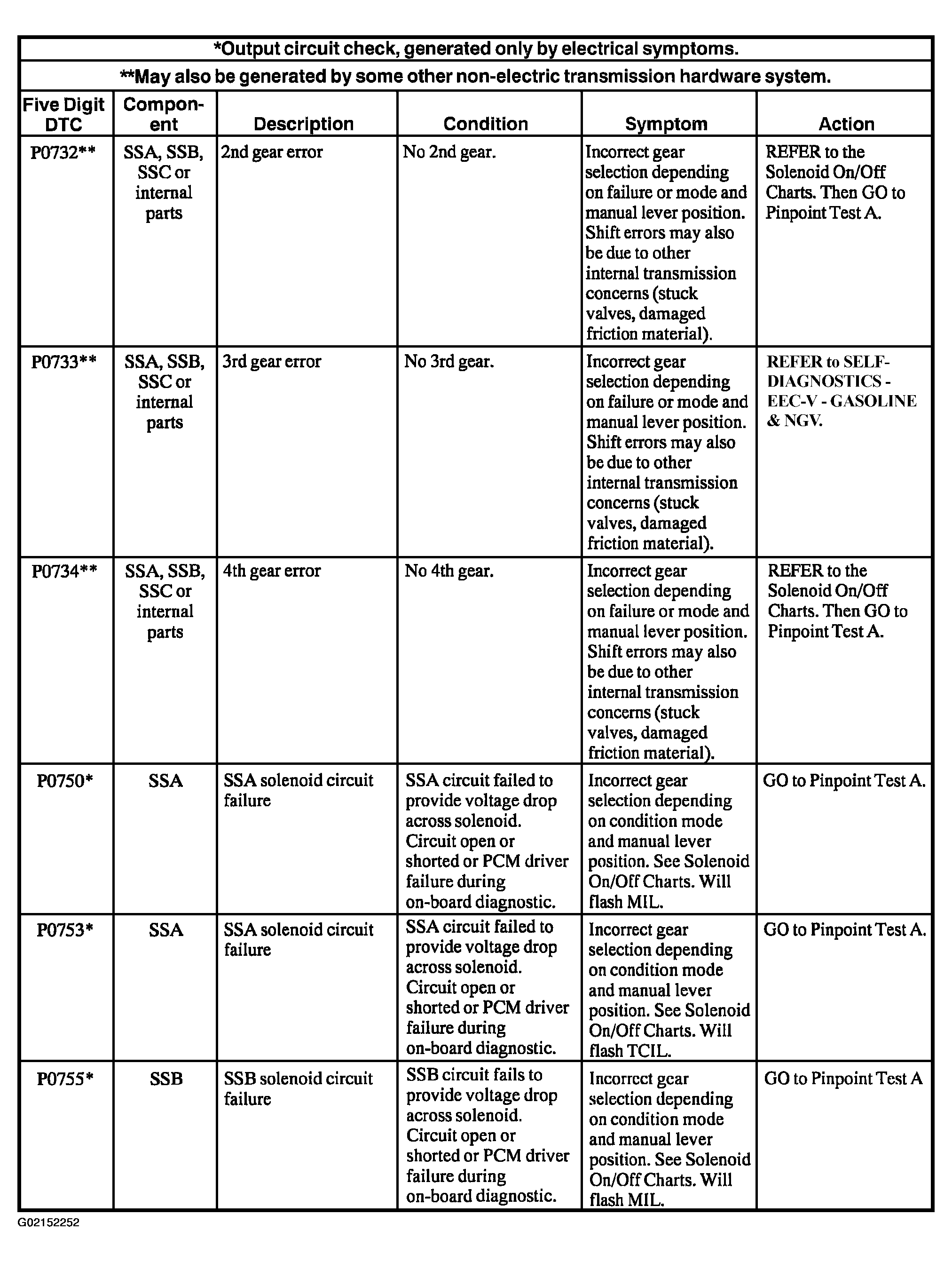

Fig 3: DTC's P0732, P0733, P0734, P0750, P0753 & P0755

Courtesy of FORD MOTOR CO.

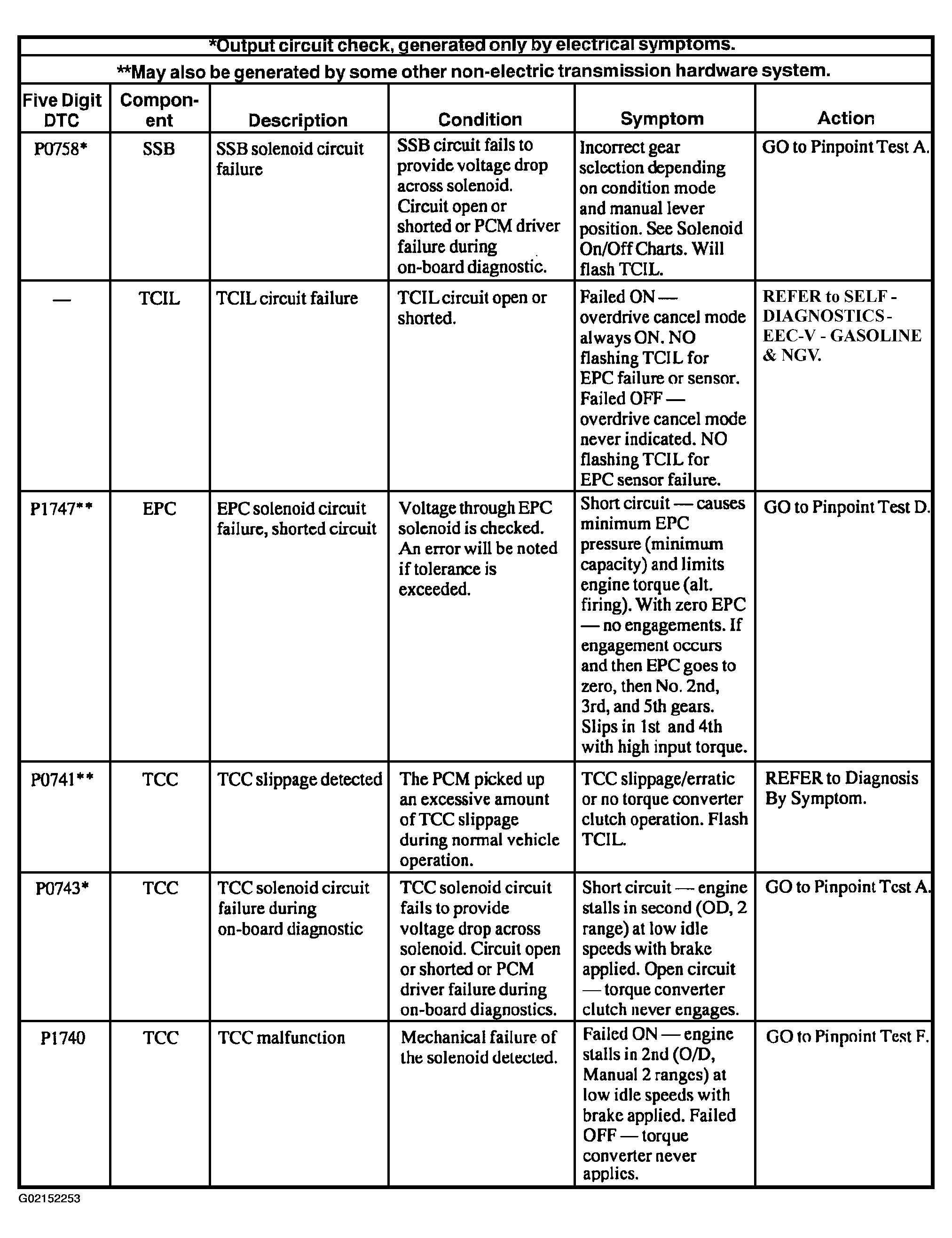

Fig 4: DTC's P0758, P1747, P0741, P0743 & P1740

Courtesy of FORD MOTOR CO.

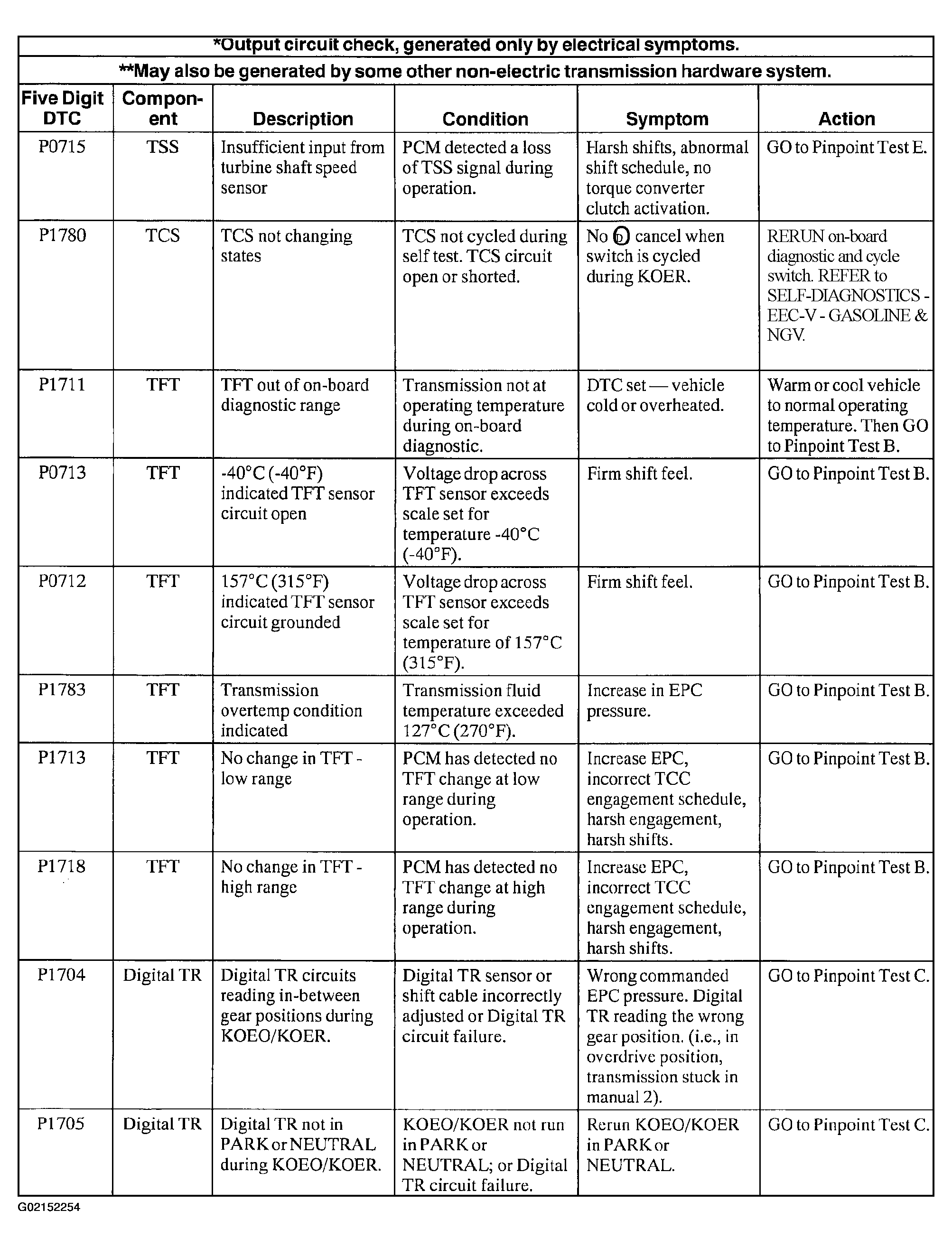

Fig 5: DTC's P0715, P1780, P1711, P0713, P0712, P1783, P1713, P1718, P1704 & P1705

Courtesy of FORD MOTOR CO.

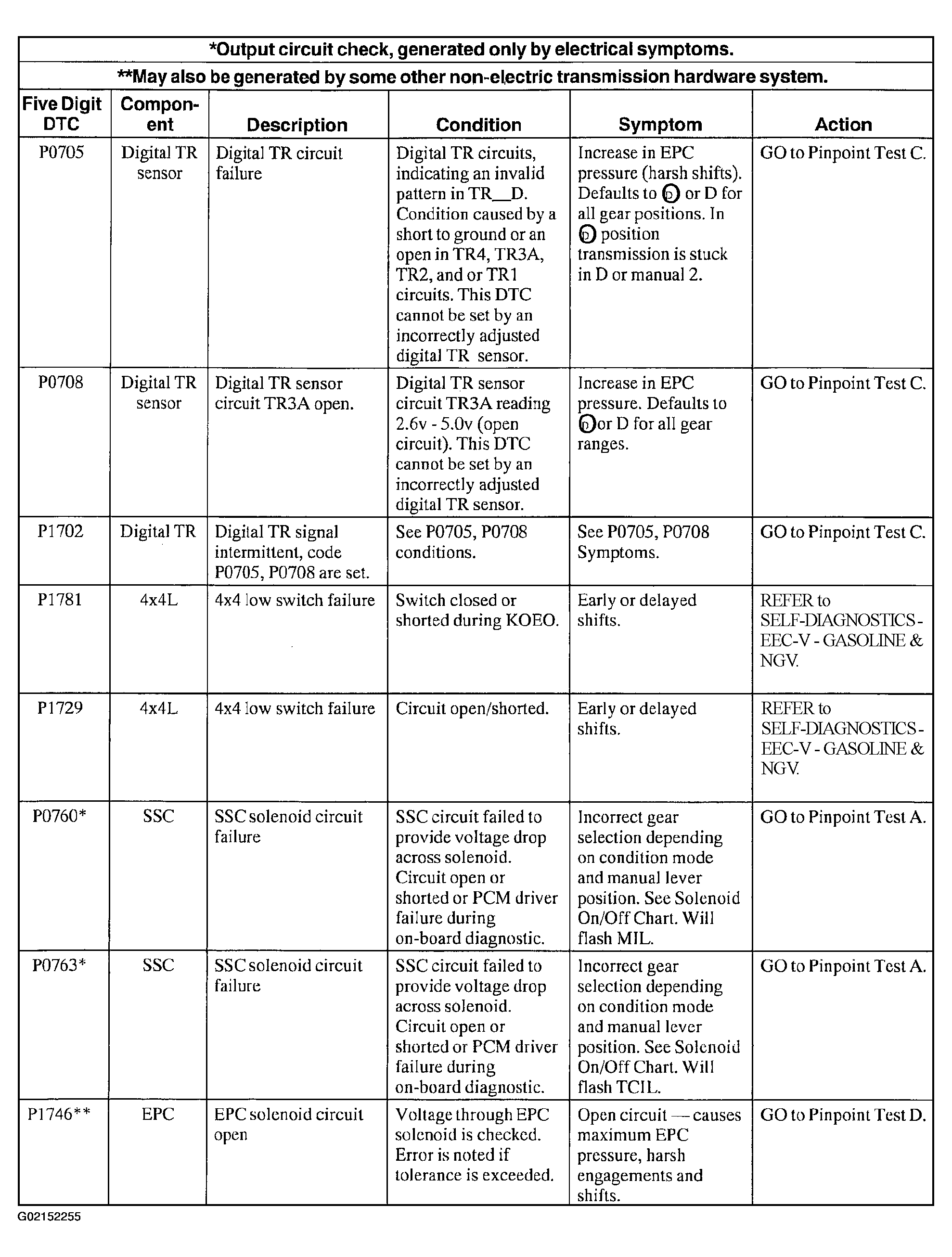

Fig 6: DTC's P0705, P0708, P1702, P1781, P1729, P0760, P0763 & P1746

Courtesy of FORD MOTOR CO.

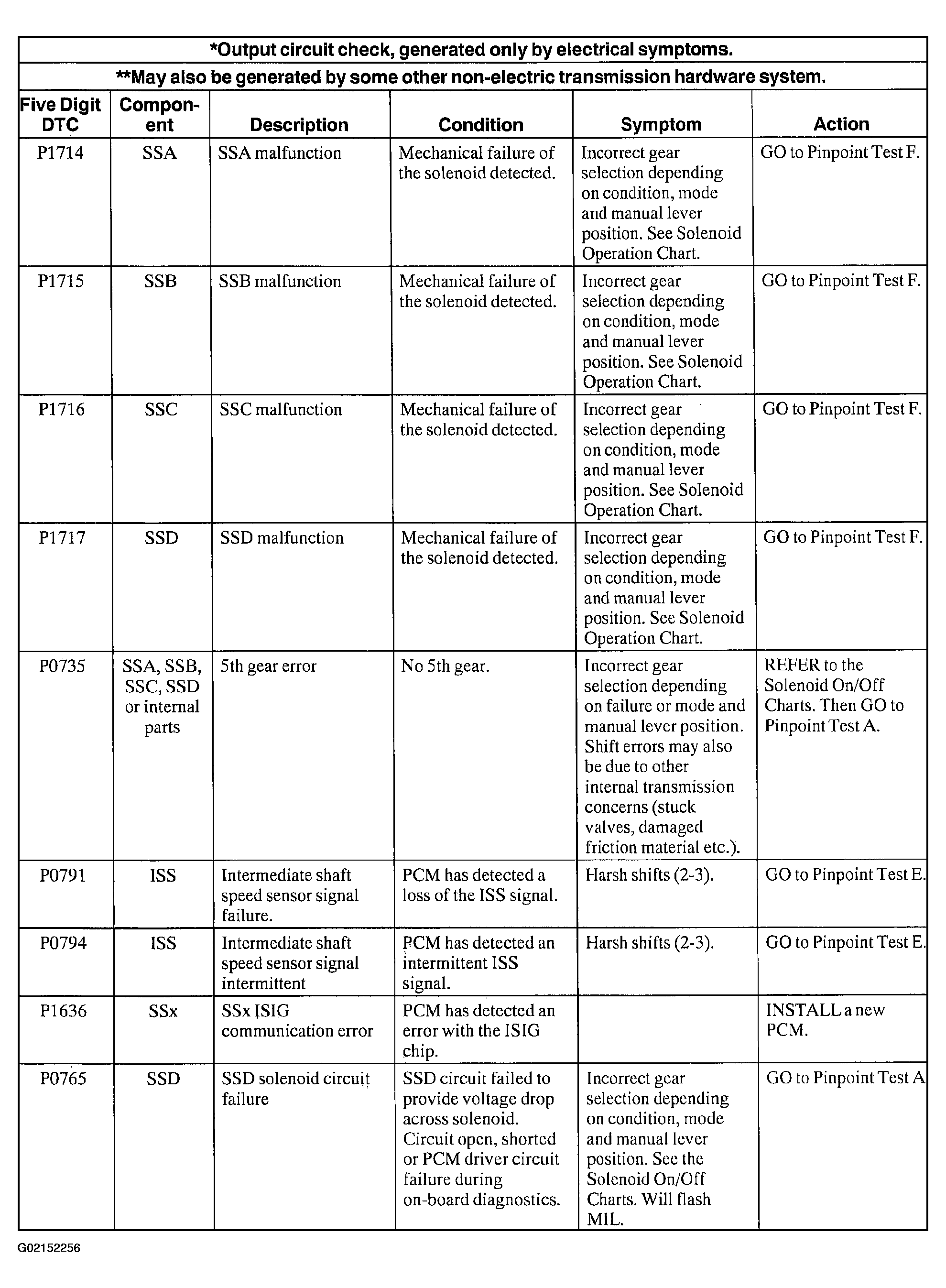

Fig 7: DTC's P1714, P1715, P1716, P1717, P0735, P0791, P0794, P1636 & P0765

Courtesy of FORD MOTOR CO.

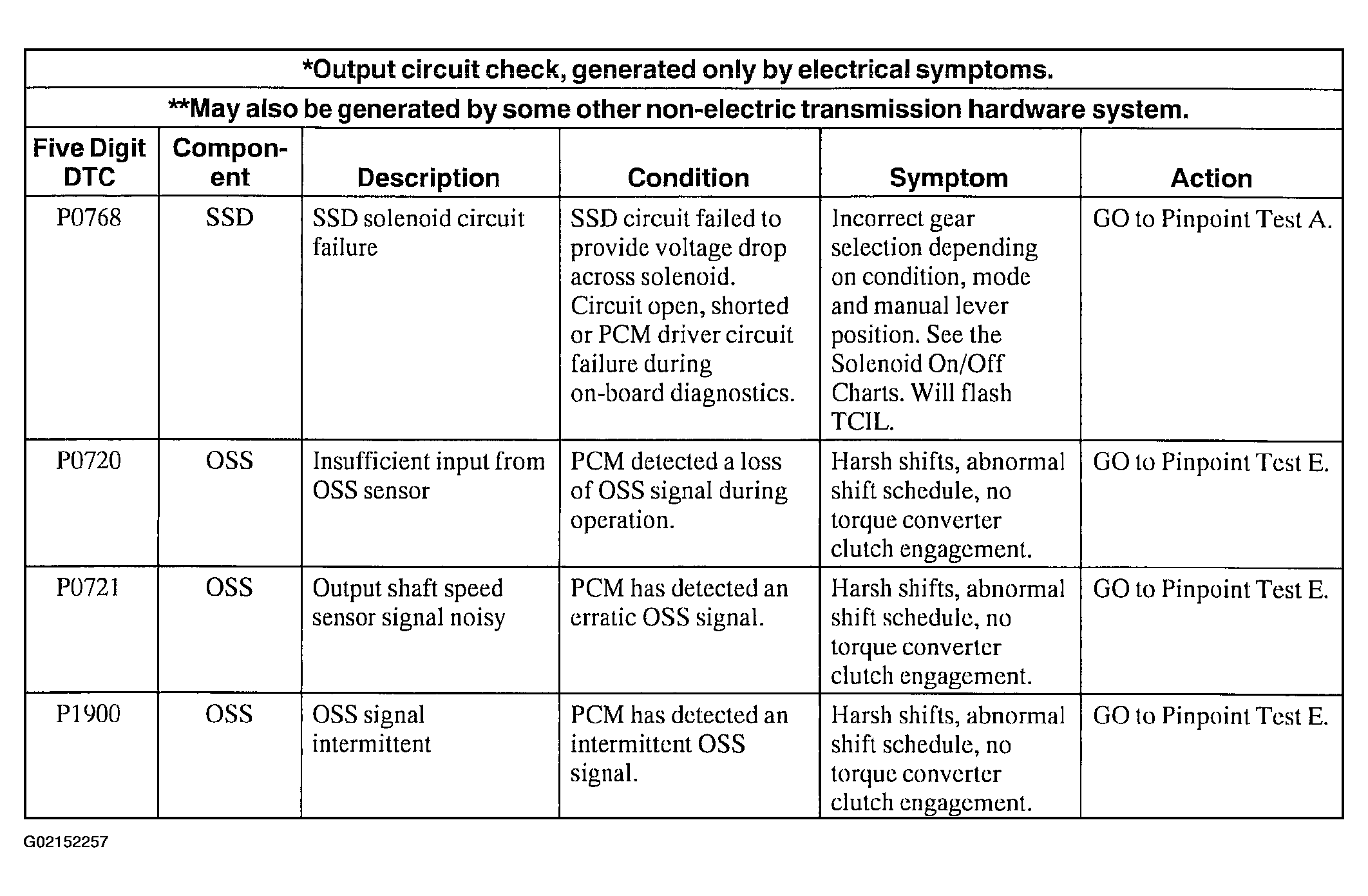

Fig 8: DTC's P0768, P0720, P0721 & P1900

Courtesy of FORD MOTOR CO.
