Shift Concerns: Soft/Slipping 4-3 Downshifts (Automatic) (Routines 229/329)

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Shift Concerns: Soft/Slipping 4-3 Downshifts (Automatic) - Diagnostic Procedure (1 Of 2)

Courtesy of FORD MOTOR CO.

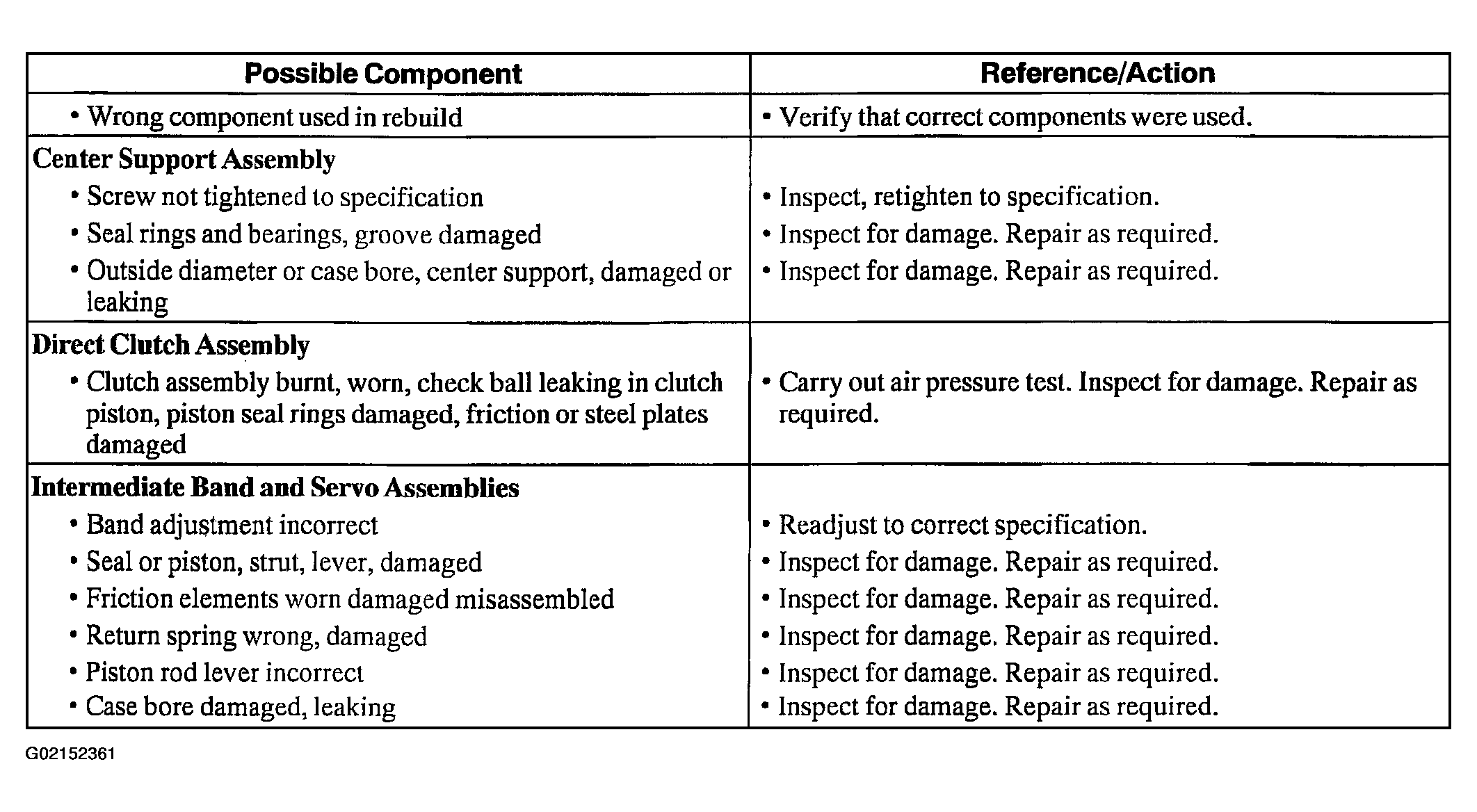

Fig 2: Shift Concerns: Soft/Slipping 4-3 Downshifts (Automatic) - Diagnostic Procedure (2 Of 2)

Courtesy of FORD MOTOR CO.
