Shift Concerns: No 1-2 Shift (Automatic) (Routines 220/320)

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

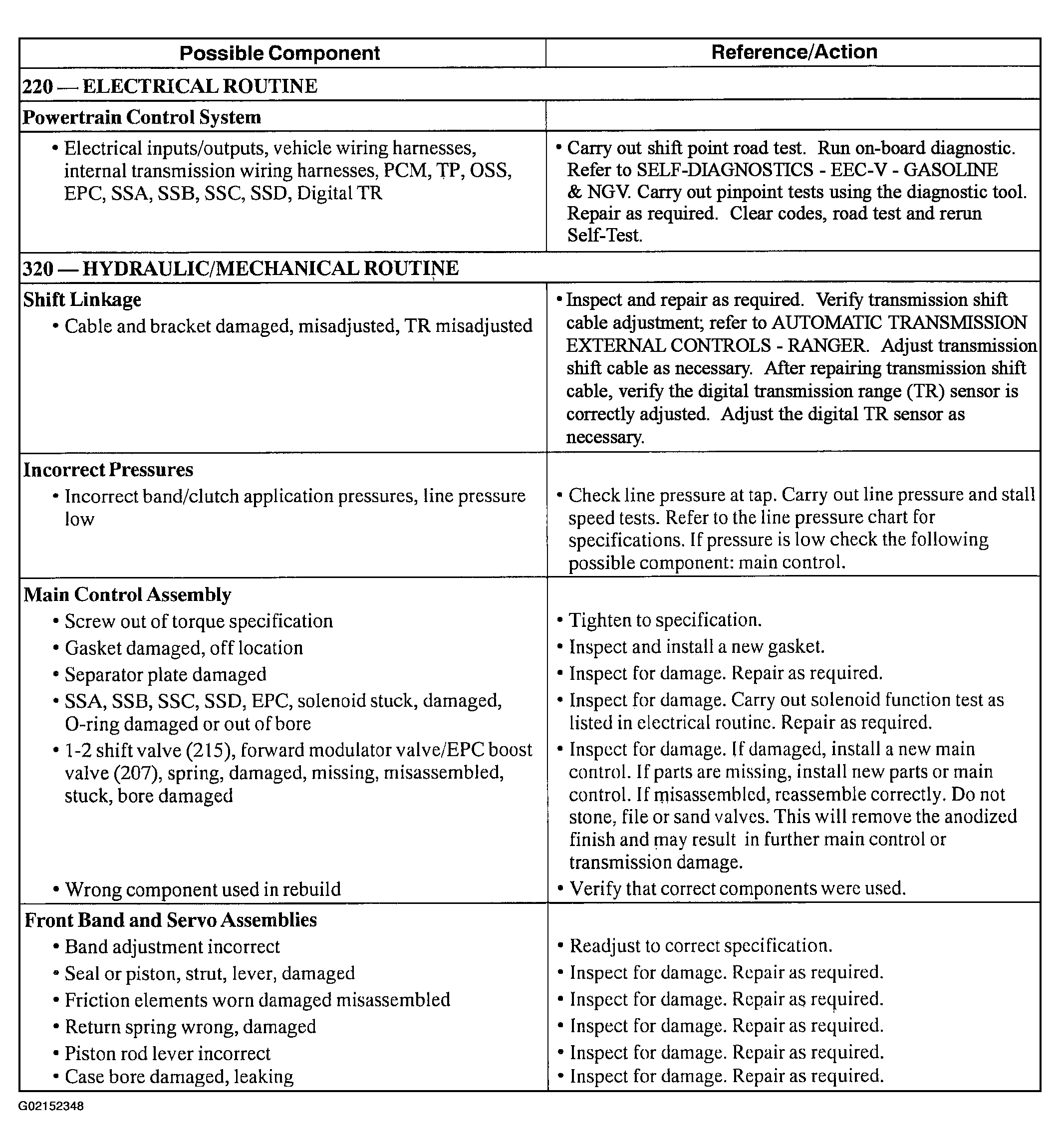

Fig 1: Shift Concerns: No 1-2 Shift (Automatic) - Diagnostic Procedure (1 Of 2)
G02152348Courtesy of FORD MOTOR CO.
