Shift Concerns: Harsh 3-2 (Routines 236/336)

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

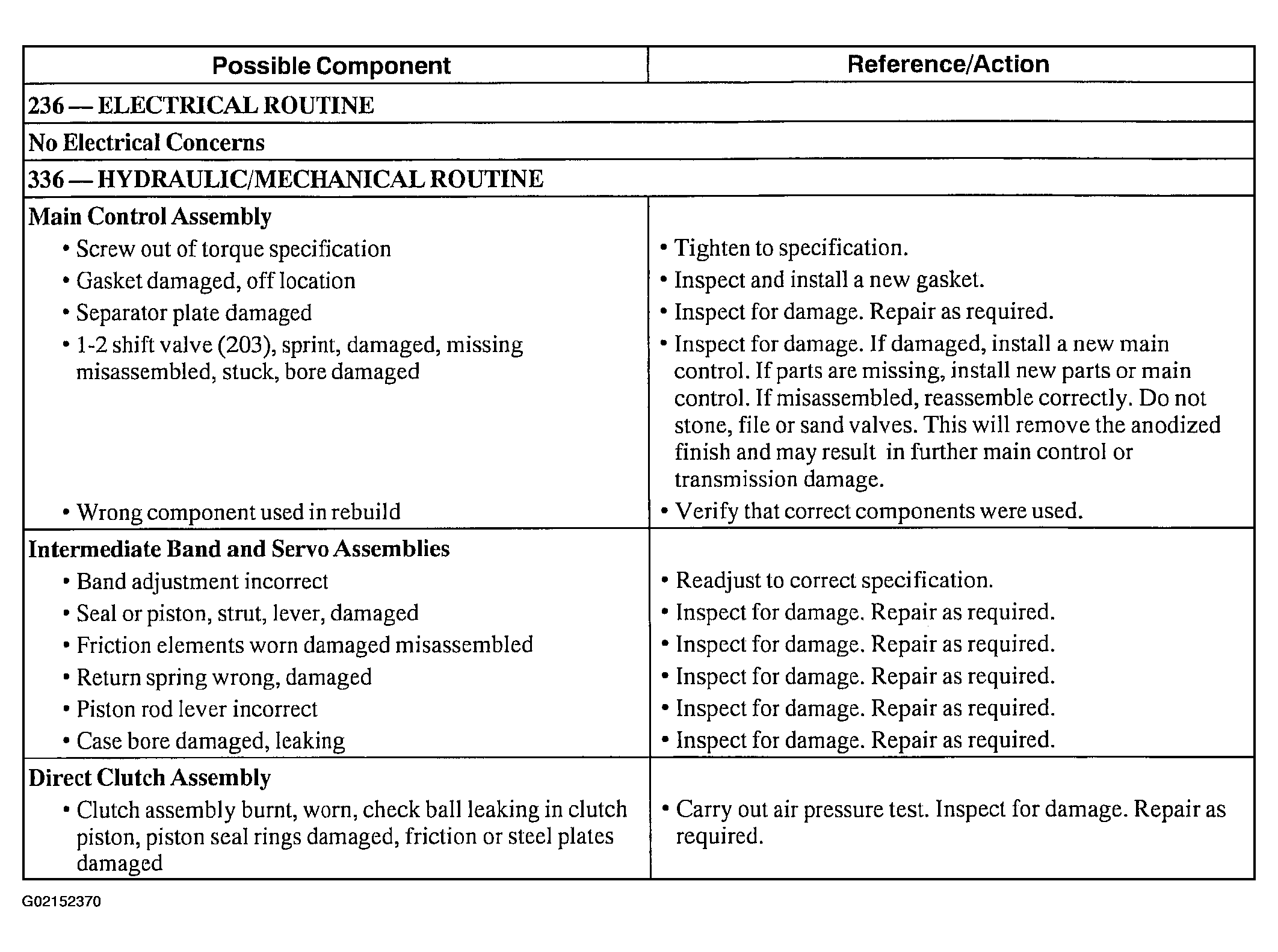

Fig 1: Shift Concerns: Harsh 3-2 - Diagnostic Procedure
G02152370Courtesy of FORD MOTOR CO.
