Section 303 (Overhaul - Automatic Transmission)
>>
Diagnosis & Testing
>>
Diagnostic Routines
>>
Shift Concerns: Feel - Soft/Slipping (Routines 213/313)
Shift Concerns: Feel - Soft/Slipping (Routines 213/313)
WARNING:
This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

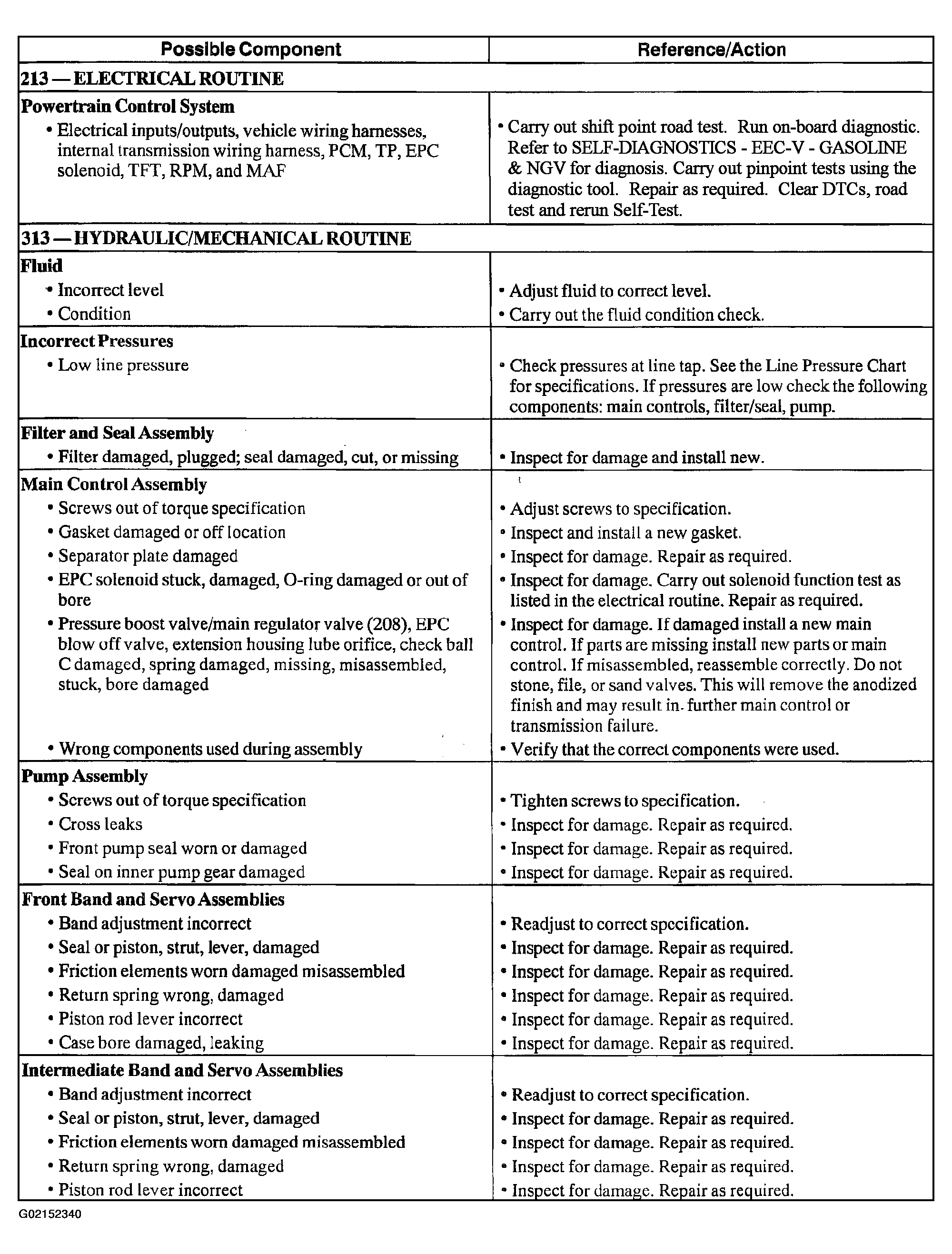

Fig 1: Shift Concerns: Feel - Soft/Slipping - Diagnostic Procedure (1 Of 2)
Courtesy of FORD MOTOR CO.

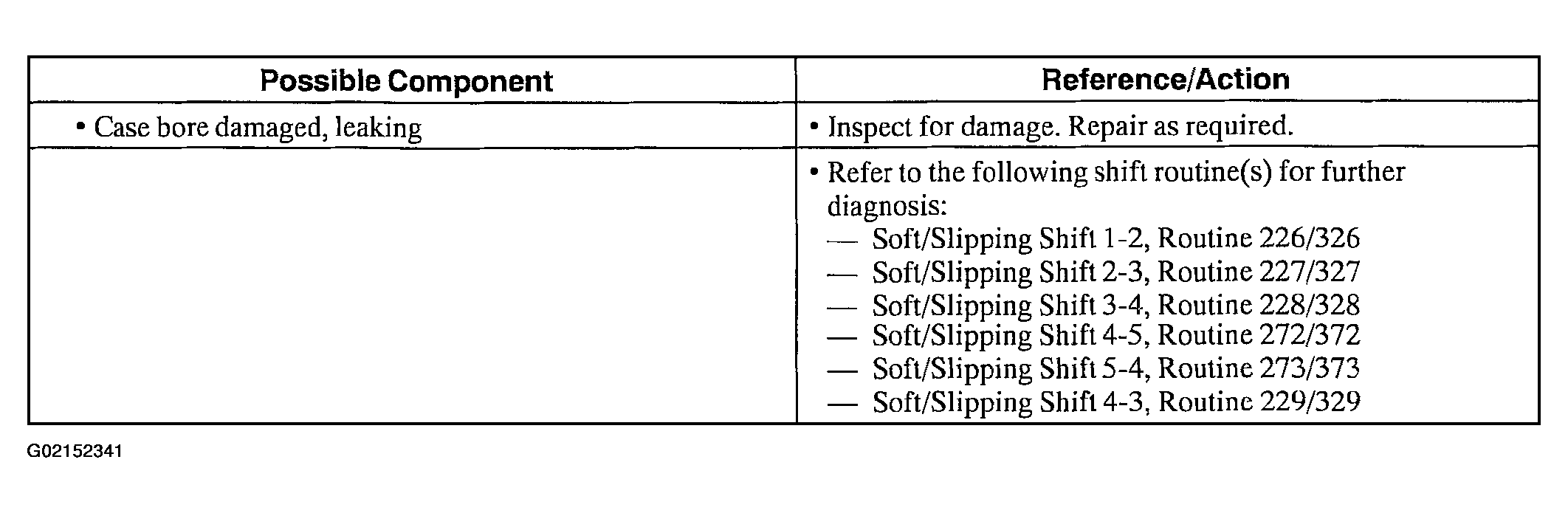

Fig 2: Shift Concerns: Feel - Soft/Slipping - Diagnostic Procedure (2 Of 2)
Courtesy of FORD MOTOR CO.
