Section 303 (Overhaul - Automatic Transmission)
>>
Diagnosis & Testing
>>
Diagnostic Routines
>>
Engagement Concern: Delayed/Soft Reverse (Routines 206/306)
Engagement Concern: Delayed/Soft Reverse (Routines 206/306)
WARNING:
This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

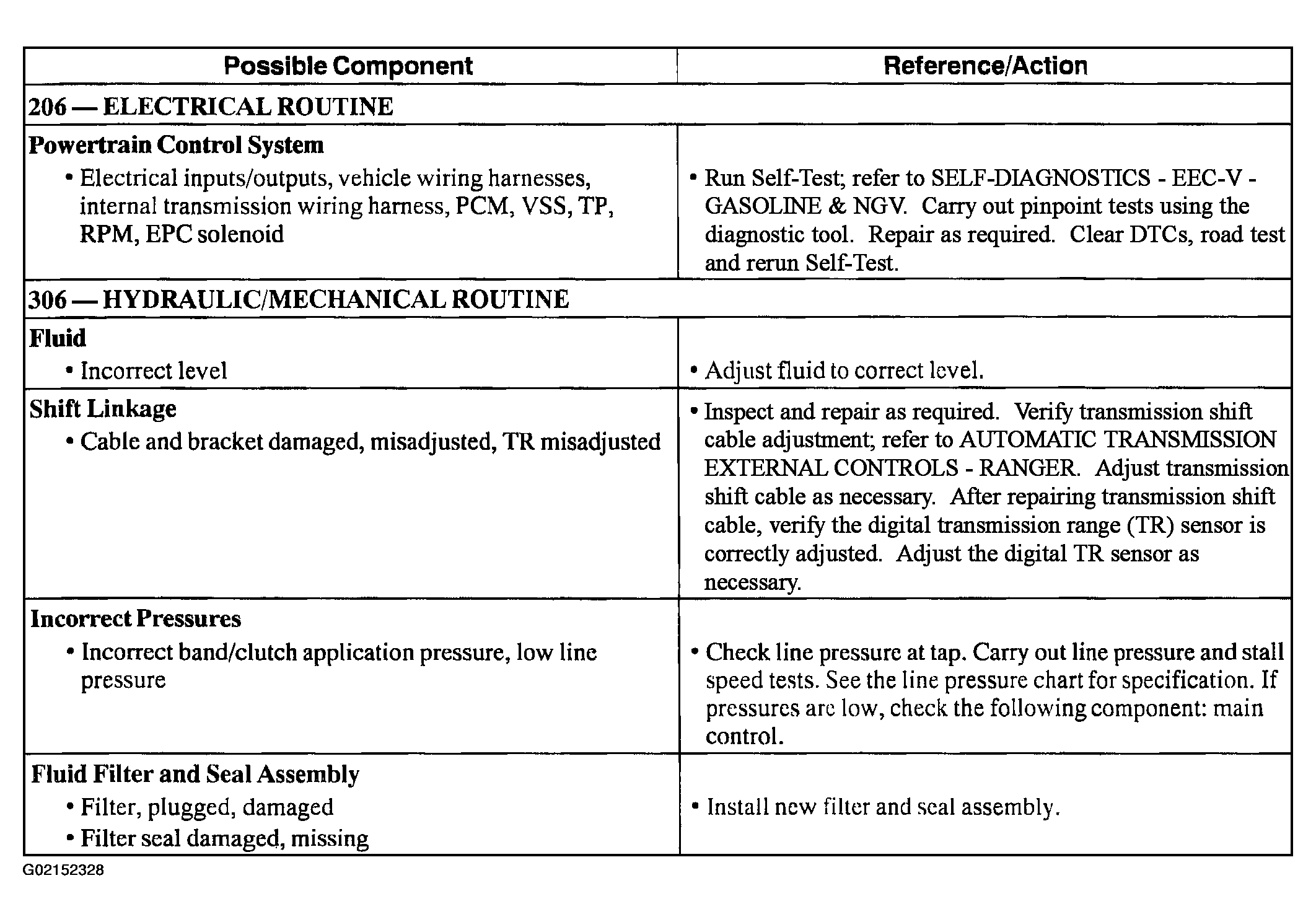

Fig 1: Engagement Concern: Delayed/Soft Forward - Diagnostic Procedure (1 Of 2)
Courtesy of FORD MOTOR CO.

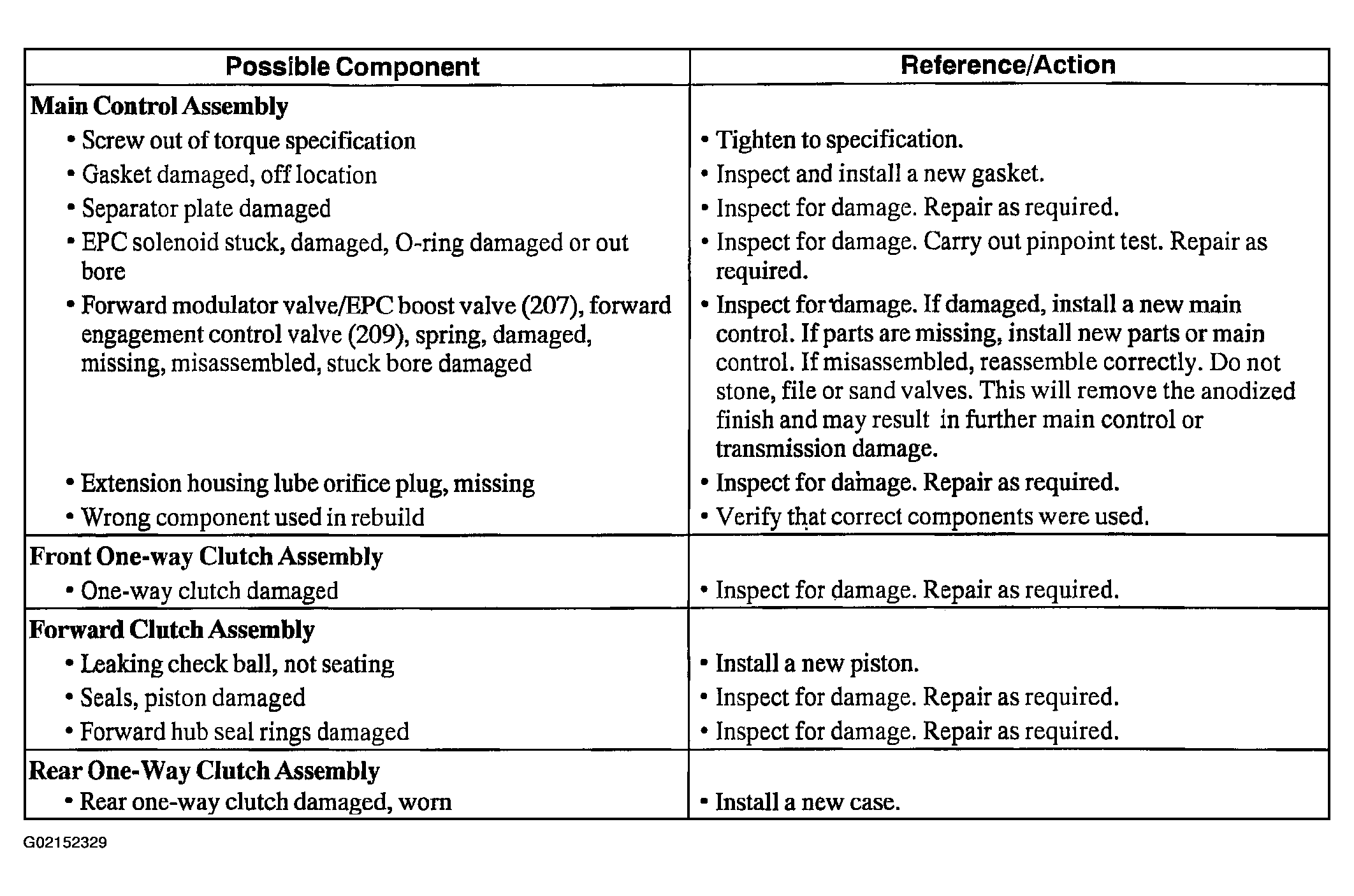

Fig 2: Engagement Concern: Delayed/Soft Forward - Diagnostic Procedure (2 Of 2)
Courtesy of FORD MOTOR CO.
