Disassembled Views

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

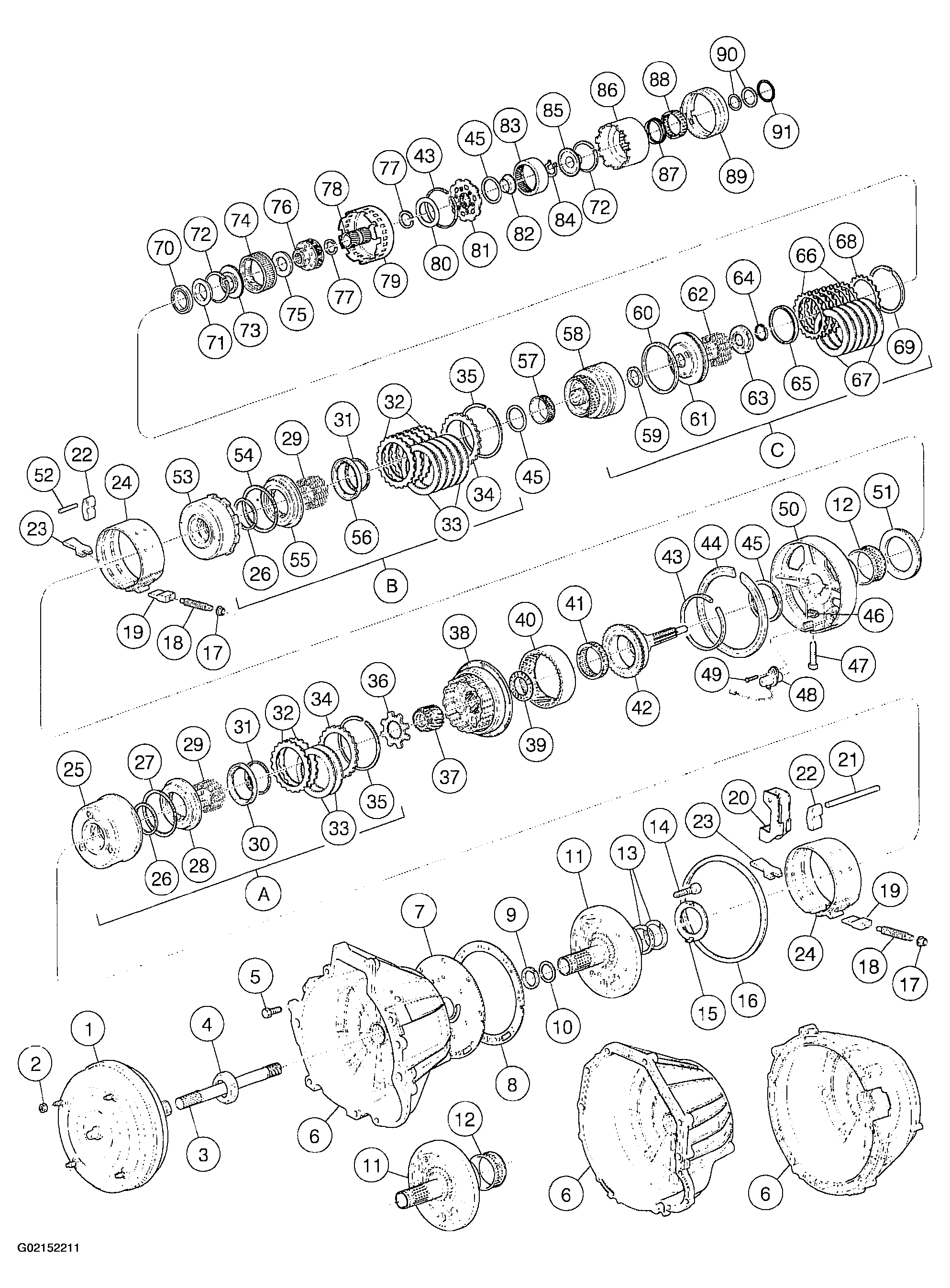

Fig 1: Identifying Automatic Transmission Components - 5R44E & 5R55E (1 Of 10)

Courtesy of FORD MOTOR CO.

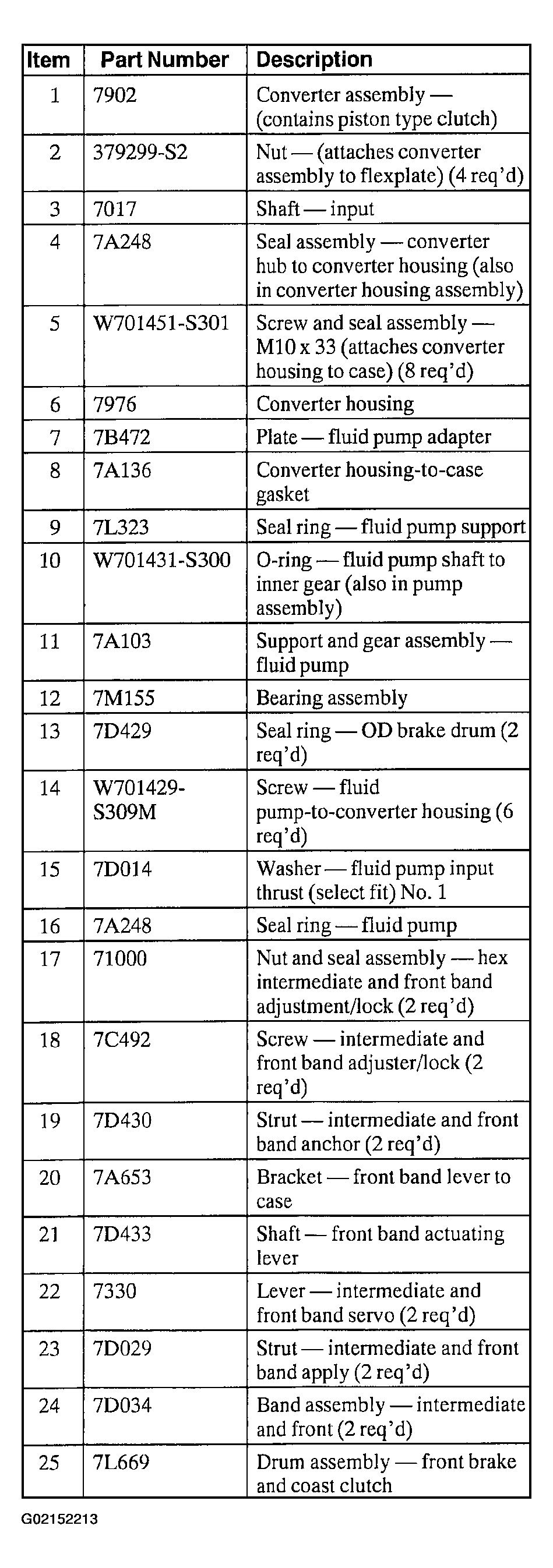

Fig 2: Identifying Automatic Transmission Components - 5R44E & 5R55E (2 Of 10)

Courtesy of FORD MOTOR CO.

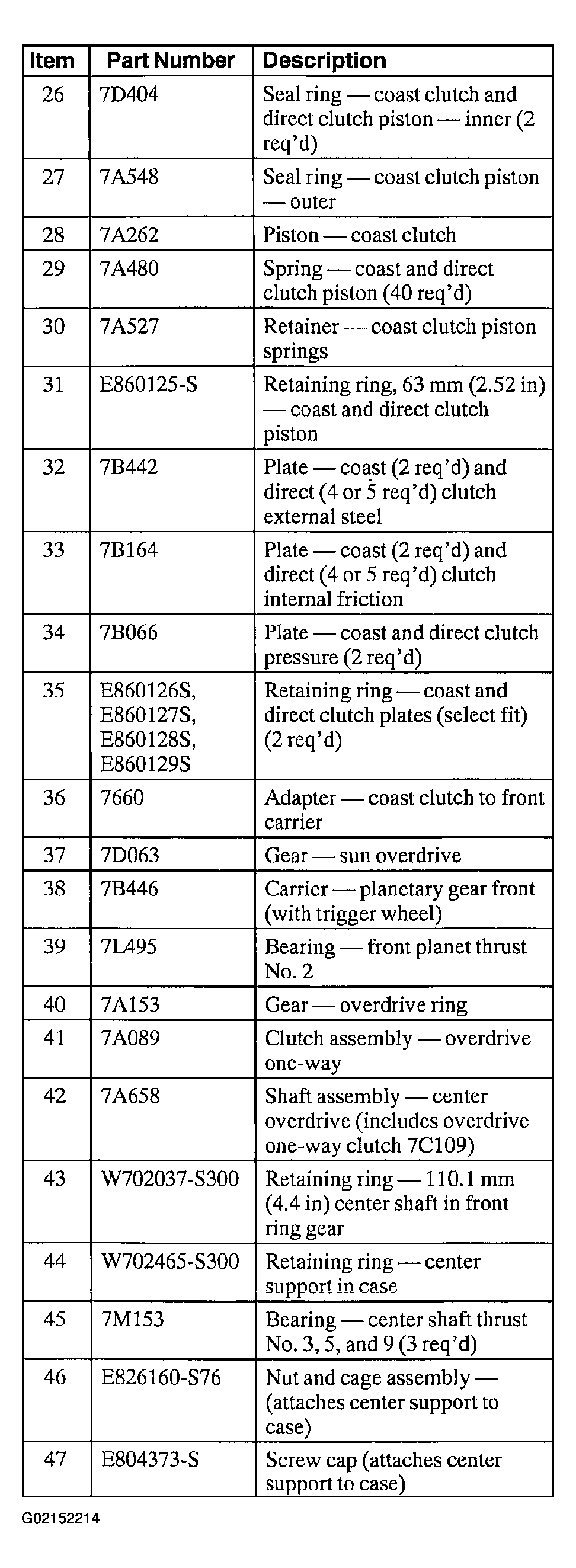

Fig 3: Identifying Automatic Transmission Components - 5R44E & 5R55E (3 Of 10)

Courtesy of FORD MOTOR CO.

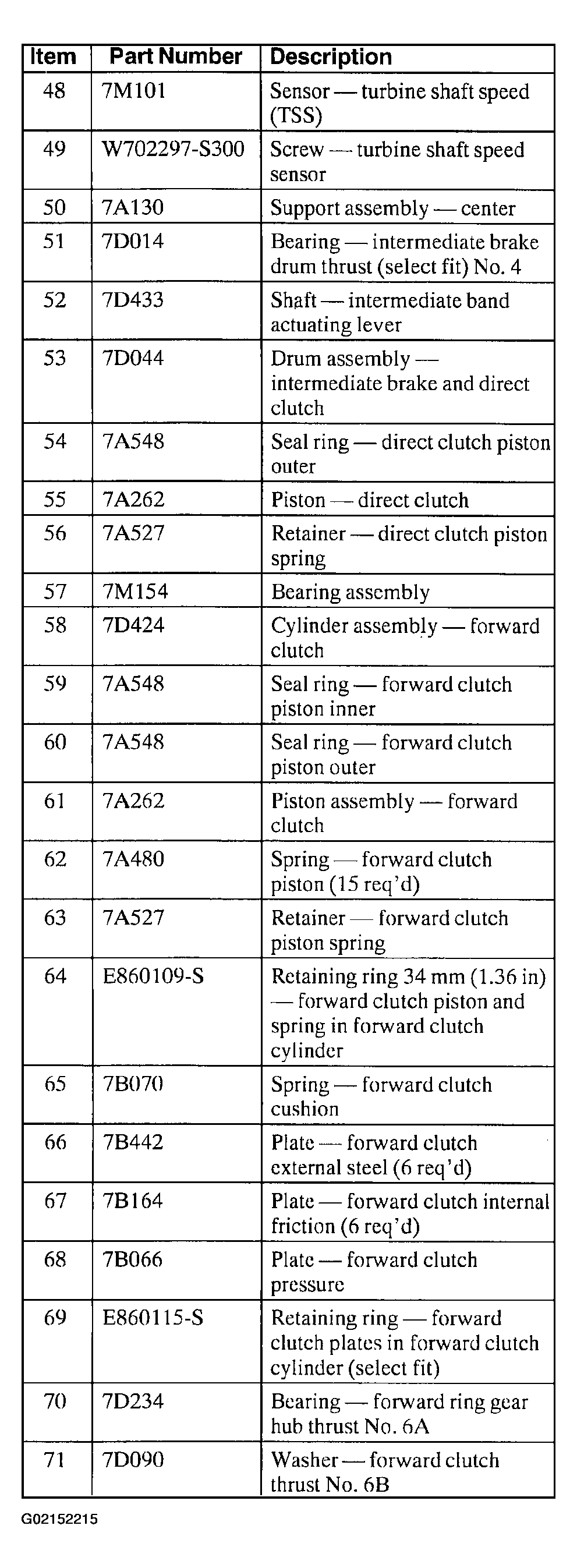

Fig 4: Identifying Automatic Transmission Components - 5R44E & 5R55E (4 Of 10)

Courtesy of FORD MOTOR CO.

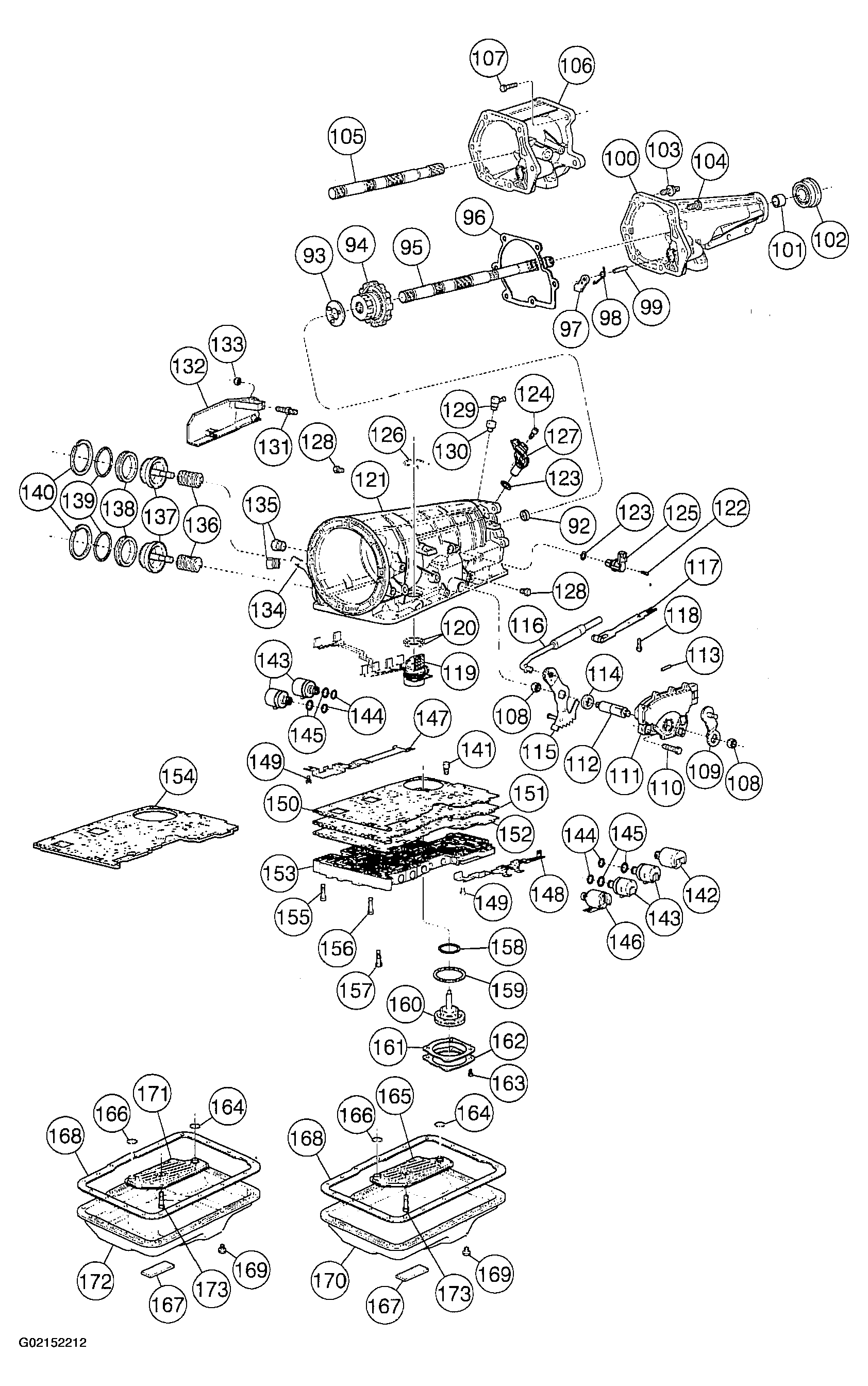

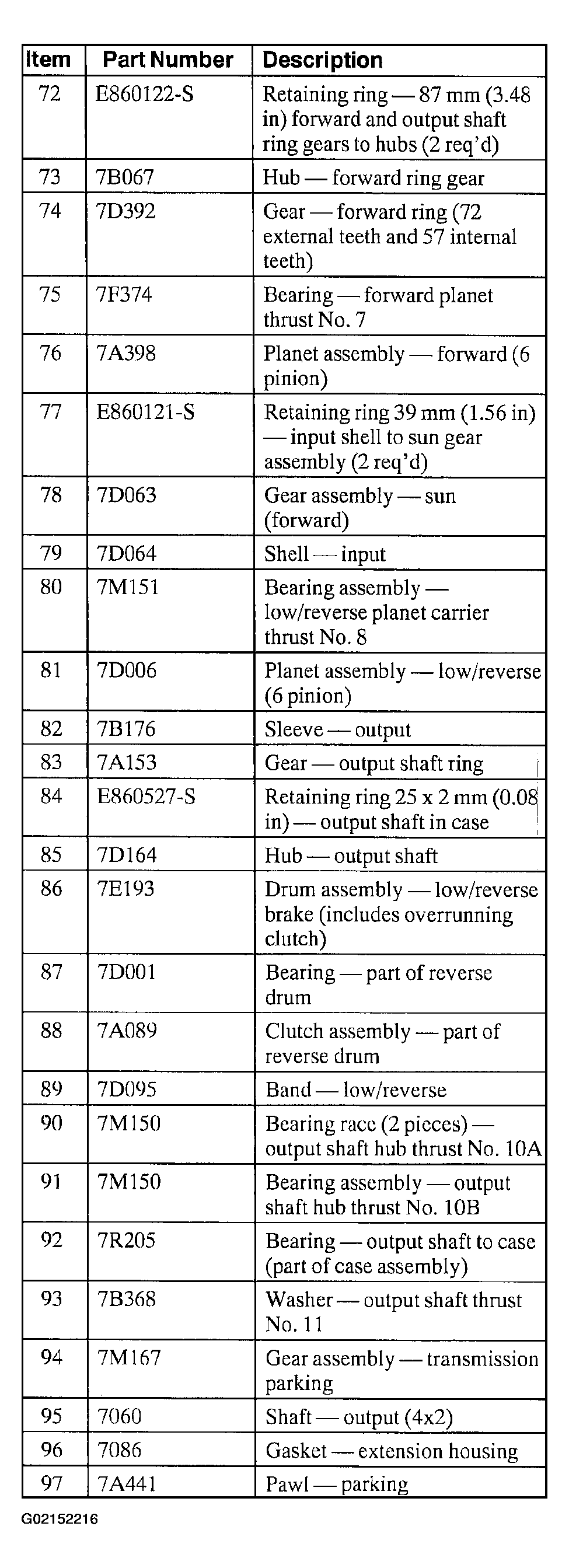

Fig 5: Identifying Automatic Transmission Components - 5R44E & 5R55E (5 Of 10)

Courtesy of FORD MOTOR CO.

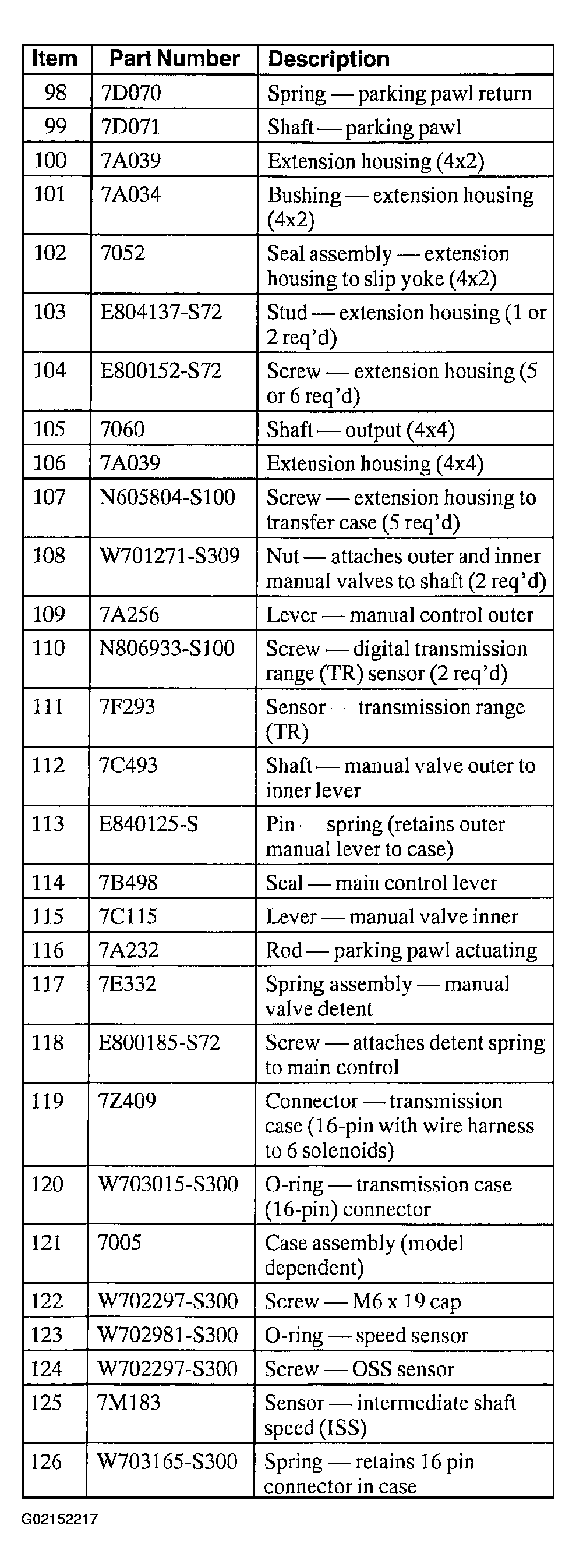

Fig 6: Identifying Automatic Transmission Components - 5R44E & 5R55E (6 Of 10)

Courtesy of FORD MOTOR CO.

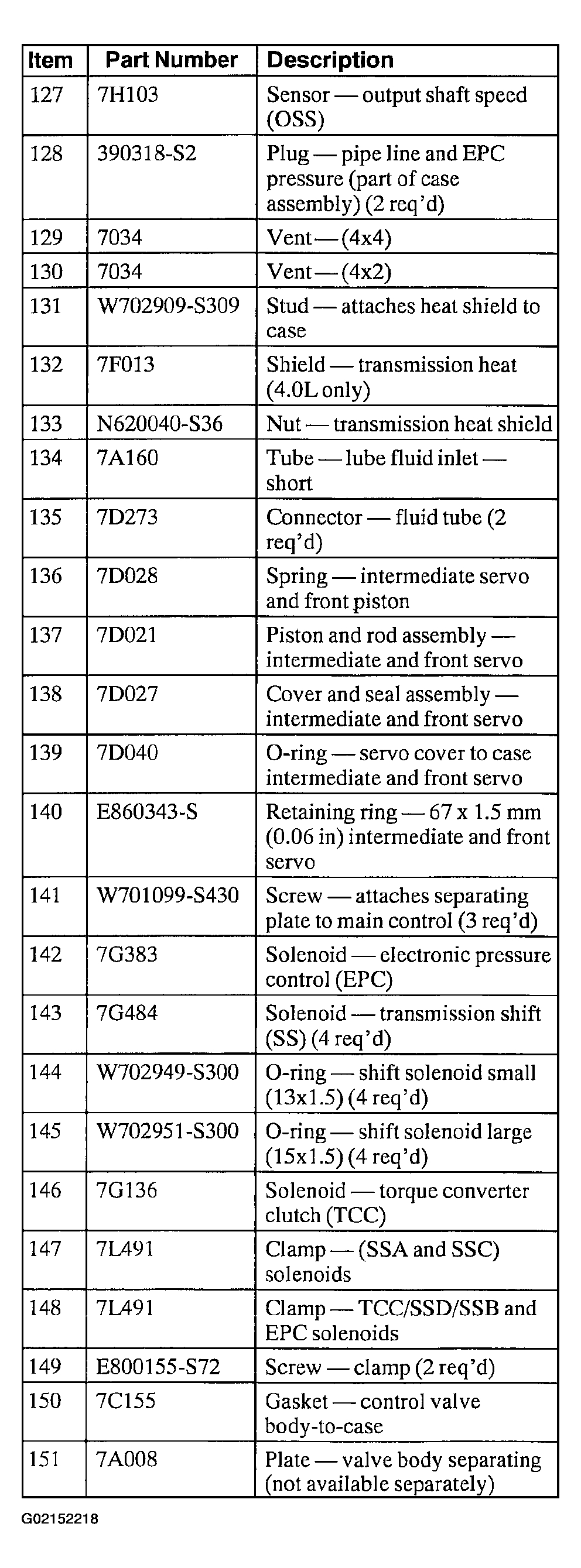

Fig 7: Identifying Automatic Transmission Components - 5R44E & 5R55E (7 Of 10)

Courtesy of FORD MOTOR CO.

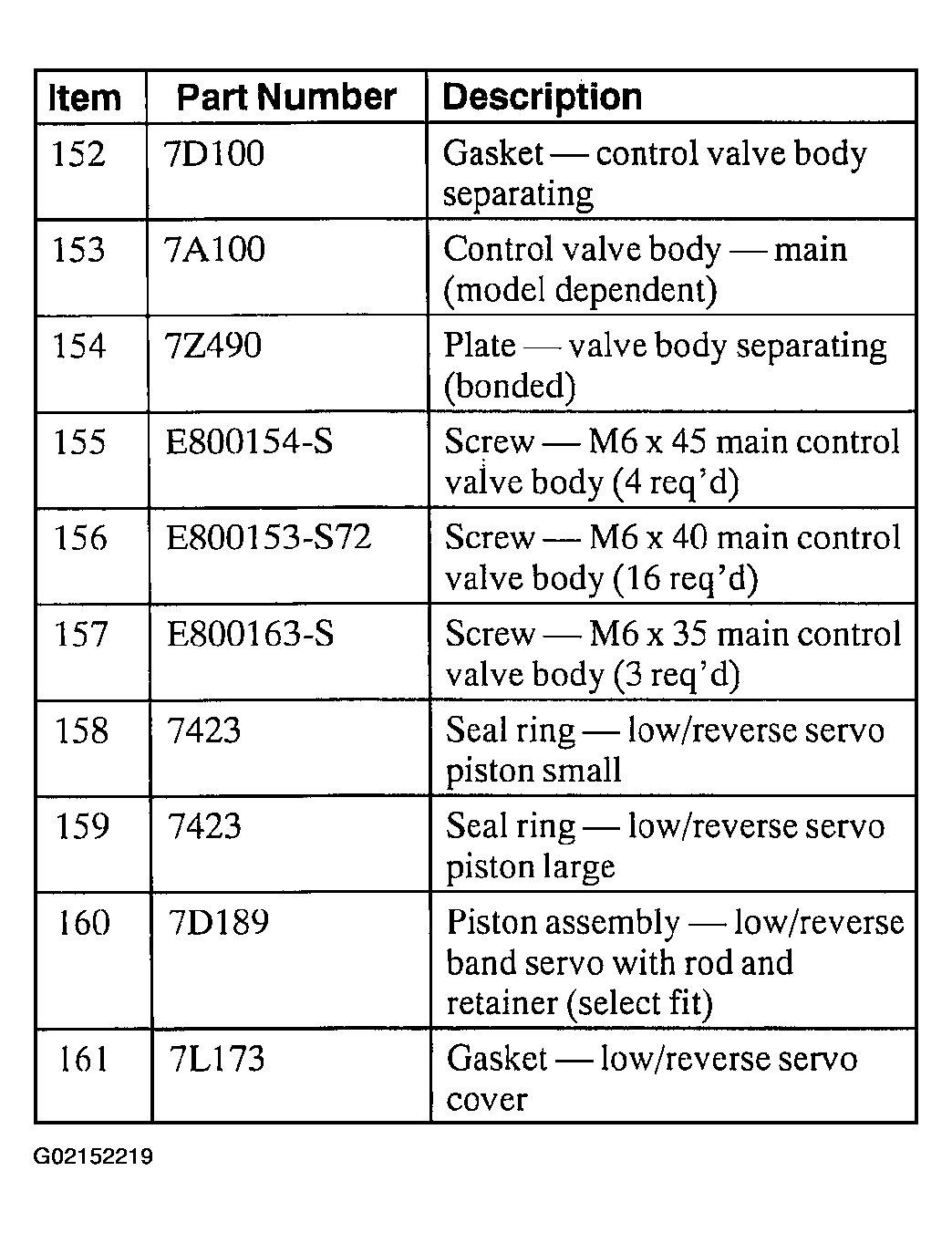

Fig 8: Identifying Automatic Transmission Components - 5R44E & 5R55E (8 Of 10)

Courtesy of FORD MOTOR CO.

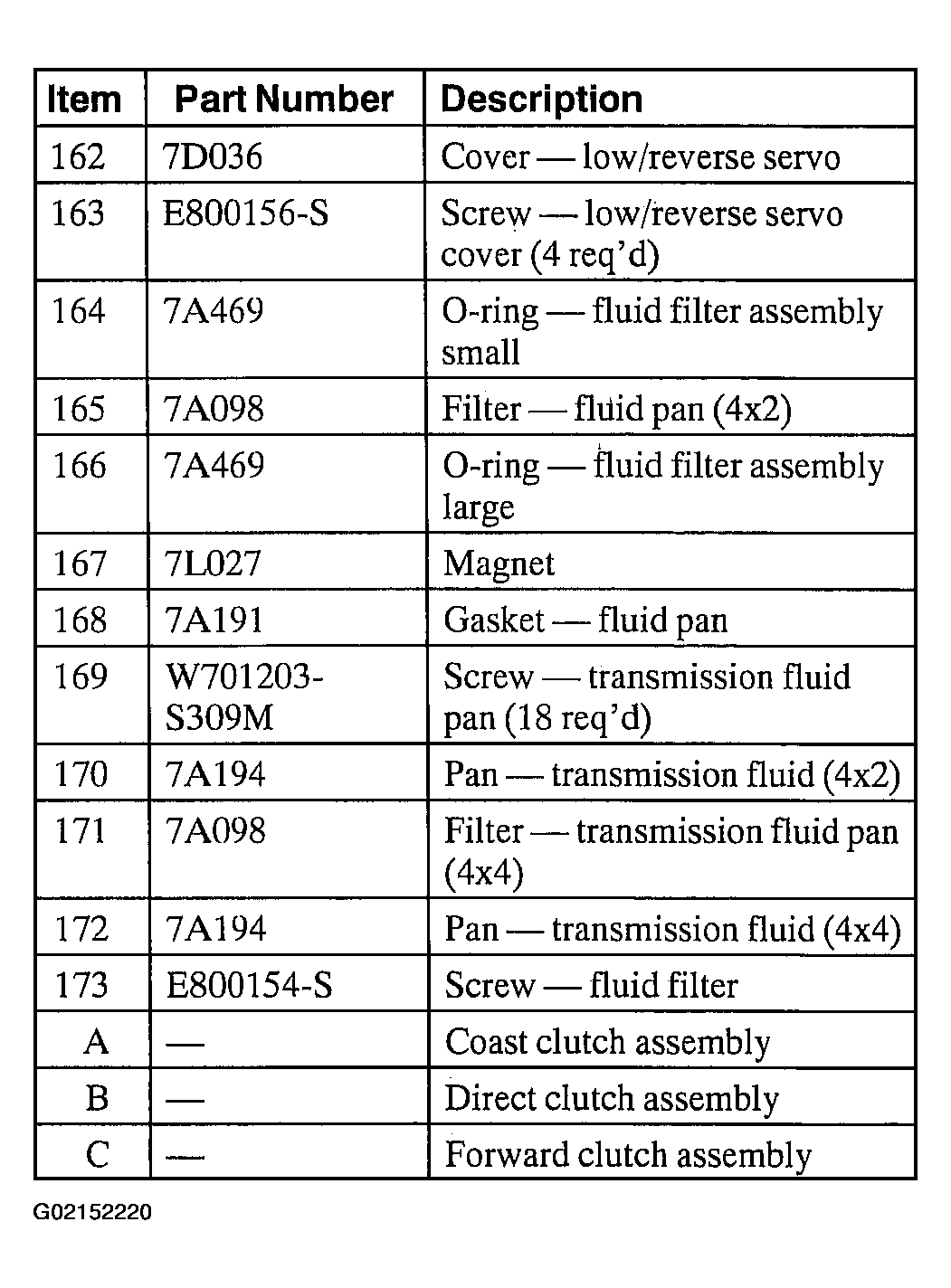

Fig 9: Disassembling Sequence Of Automatic Transmission - 5R44E & 5R55E (9 Of 10)

Courtesy of FORD MOTOR CO.

Fig 10: Disassembling Sequence Of Automatic Transmission - 5R44E & 5R55E (10 Of 10)

Courtesy of FORD MOTOR CO.
