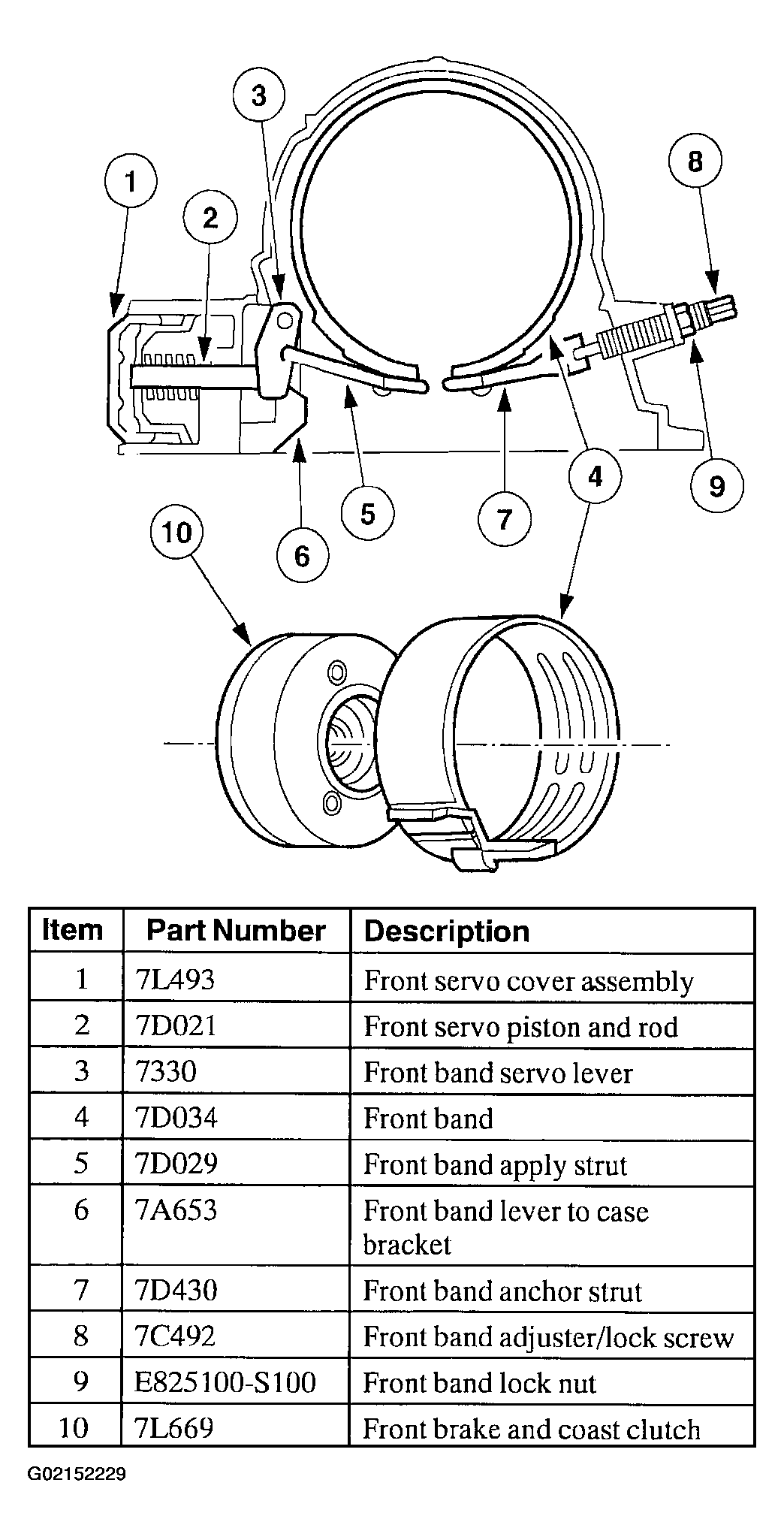

Band - Front
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Hydraulic pressure is applied to the front side of the front servo.
- This pressure causes the servo to stroke and apply force to the band.
- This action causes the front brake and coast clutch drum to be held.
- The front band holds the front brake and coast clutch drum to the case in 2nd and 5th gears.
- This causes the front sun gear to be held stationary through the coast clutch adapter and the front brake and coast clutch drum.
