Item 6: Brake Disc Removal Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: If it is necessary to machine the brake disc, only use a hub-mount brake lathe.

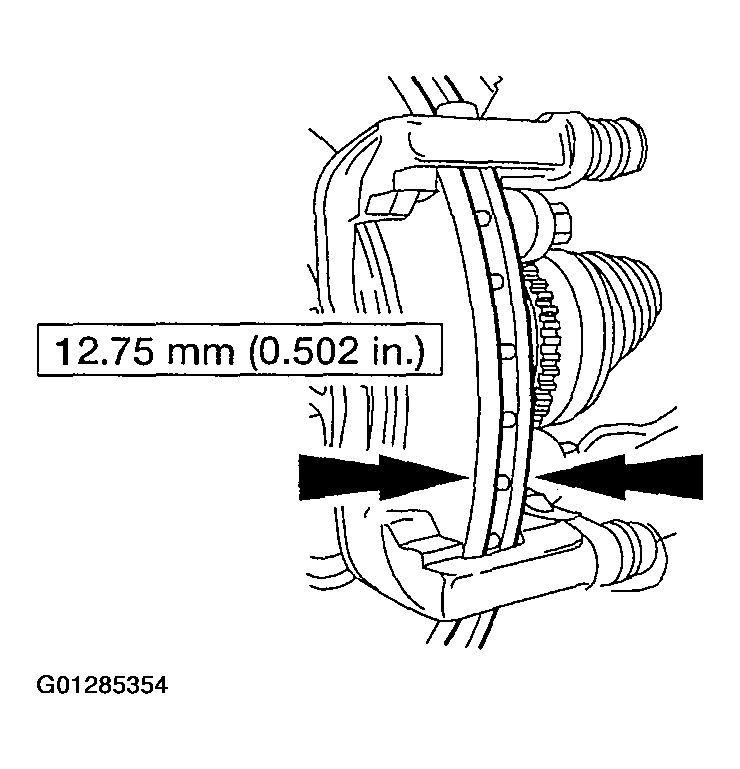

    Fig 1: Measuring Brake Disc
    G01285354Courtesy of FORD MOTOR CO.
  1. Measure the brake disc and resurface as necessary. Install a new brake disc if not within specification.
