Item 2: Brake Caliper Removal Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parking brake cable end from the parking brake lever arm.

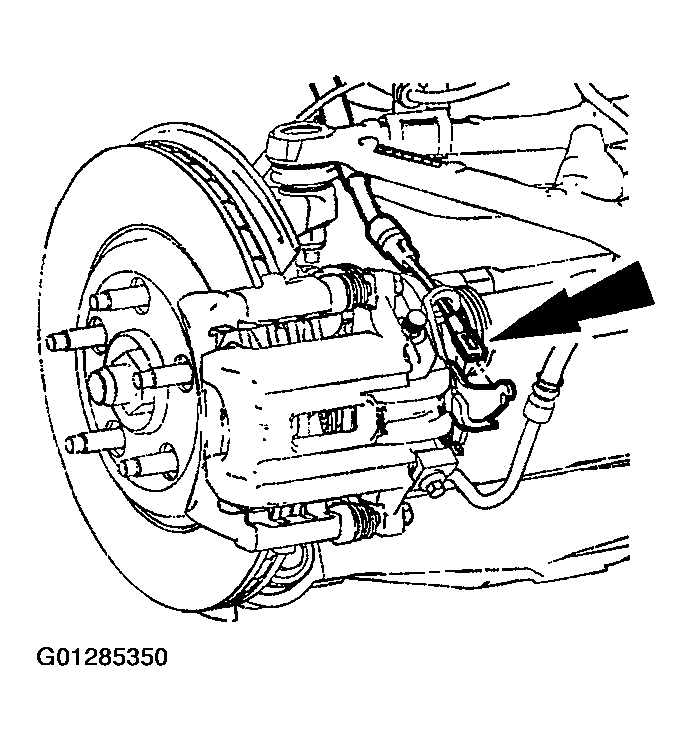

    Fig 1: Removing Parking Brake Cable End From Parking Brake Lever Arm
    G01285350Courtesy of FORD MOTOR CO.
  2. Disconnect the parking brake cable and conduit from the brake caliper.

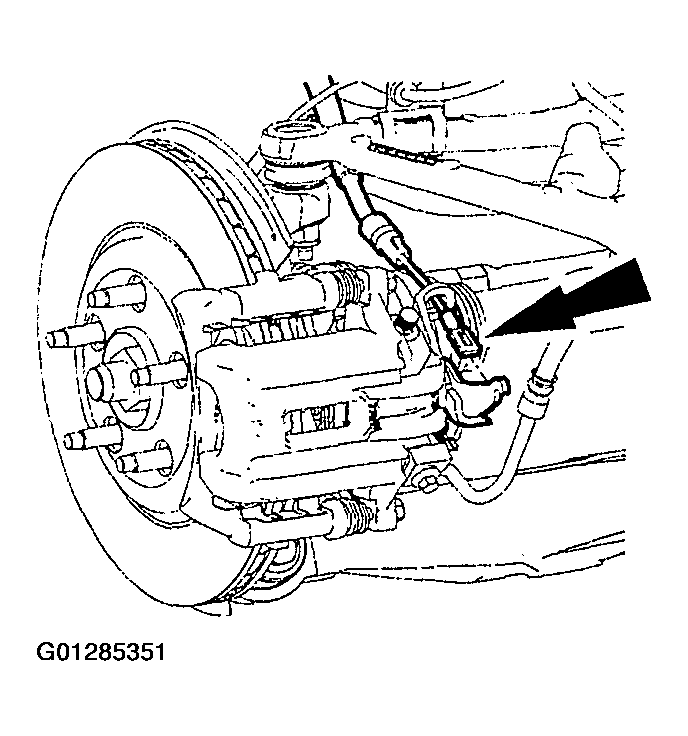

    Fig 2: Disconnecting Parking Brake Cable And Conduit From Brake Caliper
    G01285351Courtesy of FORD MOTOR CO.
  3. Remove the caliper flow bolt and copper washers. Discard the copper washers.

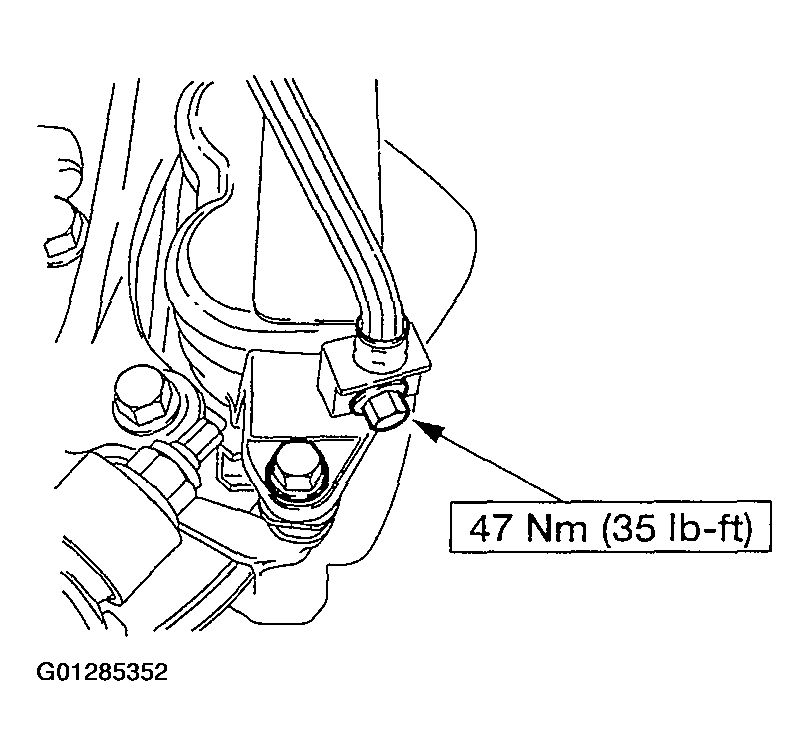

    Fig 3: Removing Caliper Flow Bolt And Copper Washers
    G01285352Courtesy of FORD MOTOR CO.
