Brake Master Cylinder and Brake Booster: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the components in the order indicated in Fig 1.

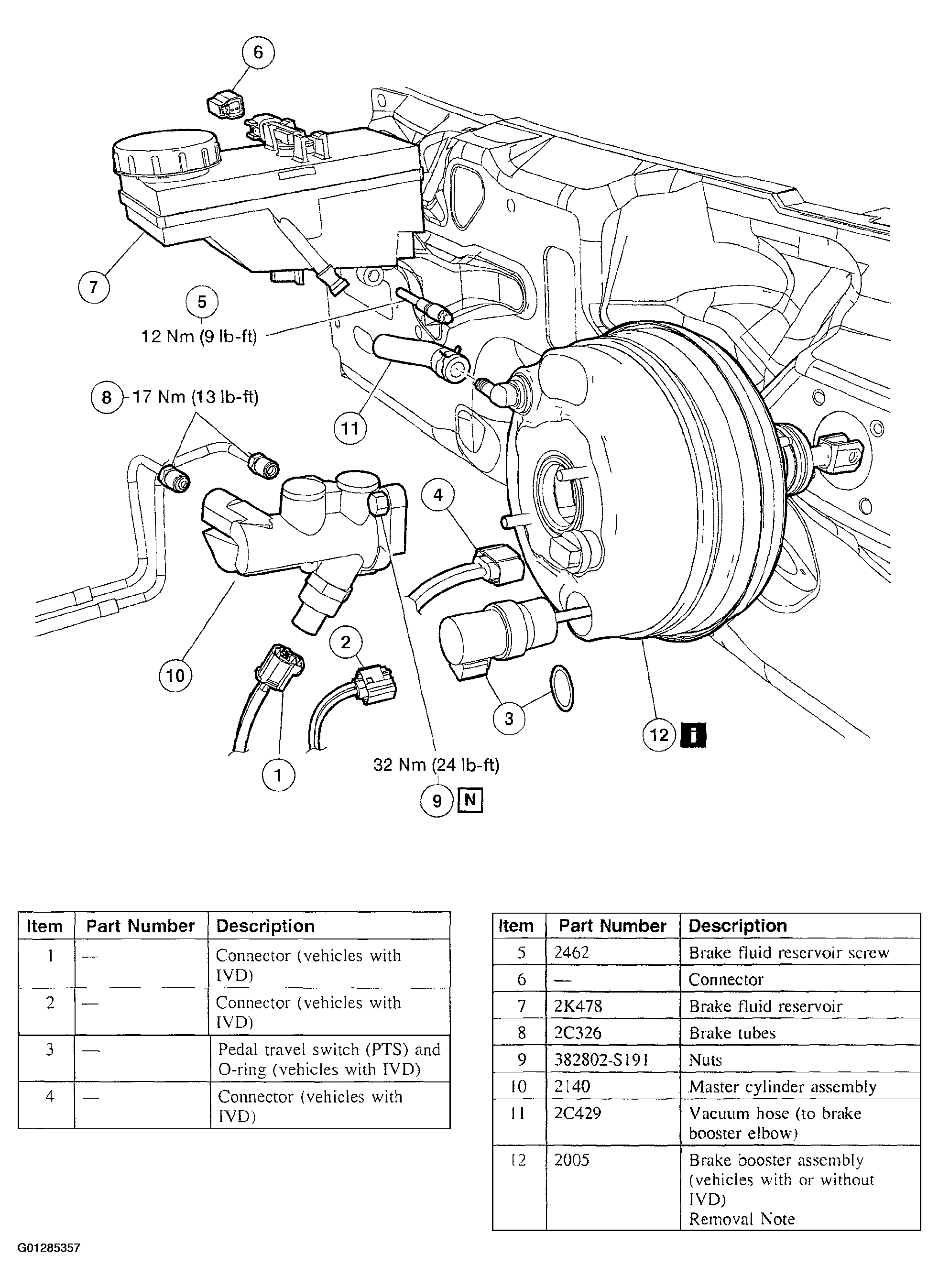

    Fig 1: Identifying Removing Sequence Of Brake Master Cylinder and Brake Booster
    G01285357Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
