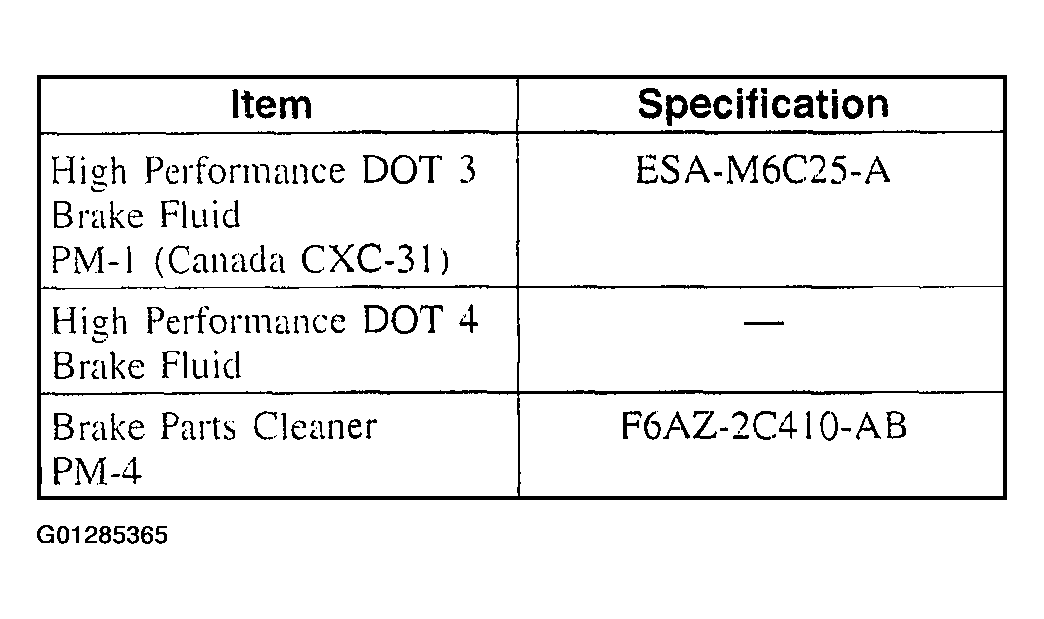

Item 12: Brake Booster Assembly Removal Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the vapor management valve (VMV) and bracket assembly and position it aside.

Fig 1: Removing Vapor Management Valve (VMV) And Bracket Assembly
Courtesy of FORD MOTOR CO.
Remove the wiper arm nuts and remove wiper arms.

Fig 2: Removing Wiper Arm Nuts And Wiper Arms
Courtesy of FORD MOTOR CO.
Disconnect the washer hose.

Fig 3: Disconnecting Washer Hose
Courtesy of FORD MOTOR CO.

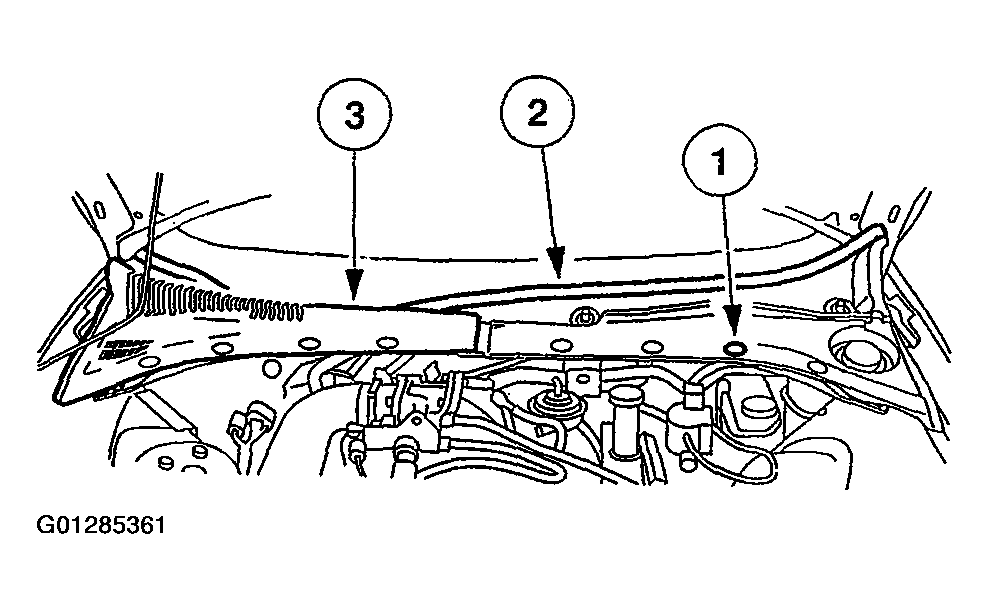

Remove the cowl cover.
1. Remove the cowl cover pushpins.
2. Remove the cowl cover rubber trim.
3. Remove the cowl cover.
Fig 4: Removing Cowl Cover
Courtesy of FORD MOTOR CO.

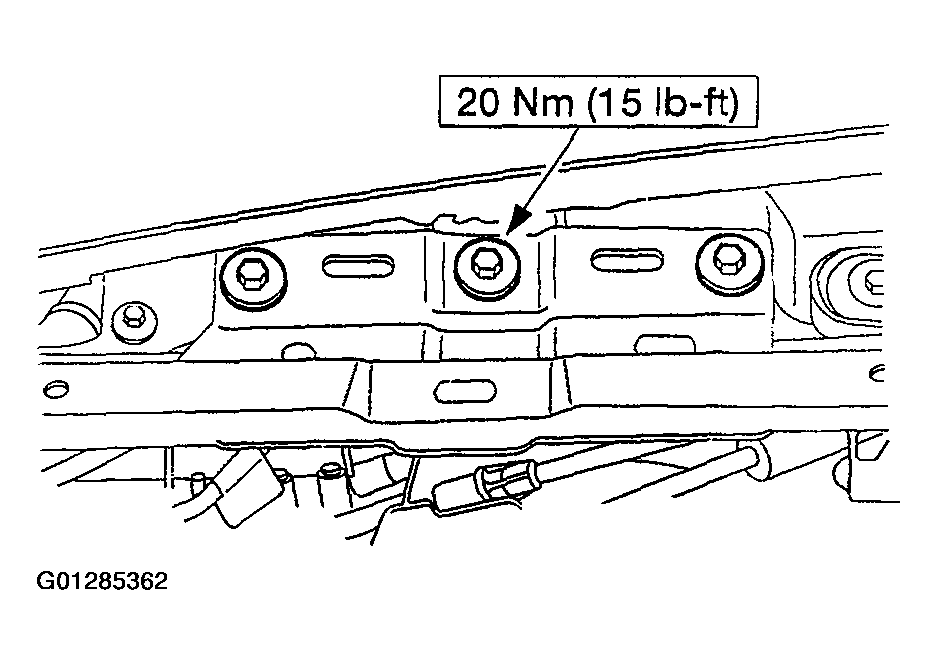

Remove the cowl brace center bolts. Remove the cowl brace end bolts and the bracket.

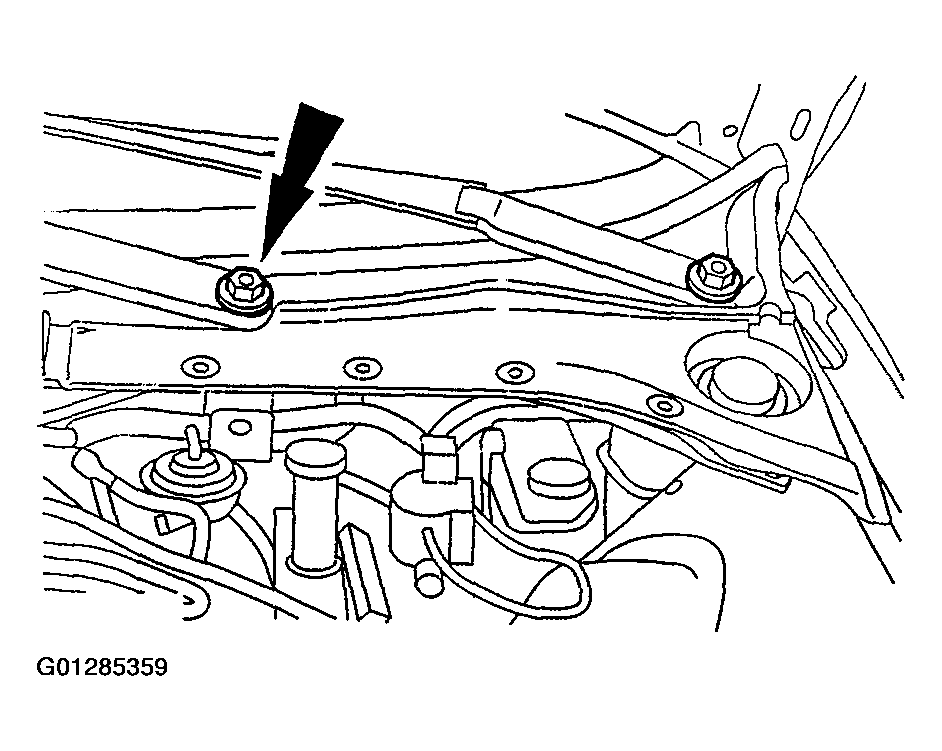

Fig 5: Removing Cowl Brace Center Bolts
Courtesy of FORD MOTOR CO.
Disconnect the coolant reservoir return hose.

Fig 6: Disconnecting Coolant Reservoir Return Hose
Courtesy of FORD MOTOR CO.

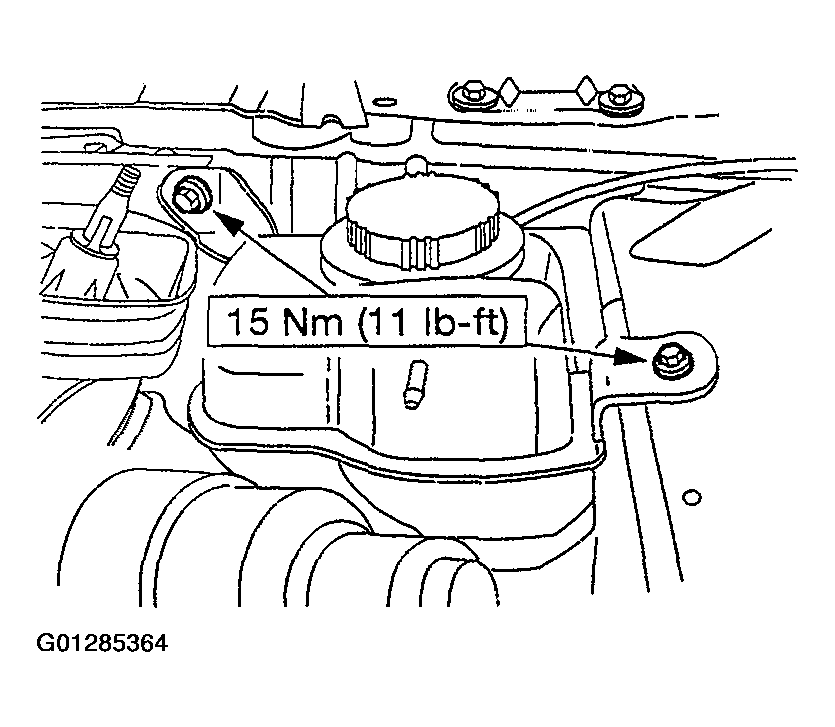

Remove the coolant reservoir bolts.

Fig 7: Removing Coolant Reservoir Bolts
Courtesy of FORD MOTOR CO.

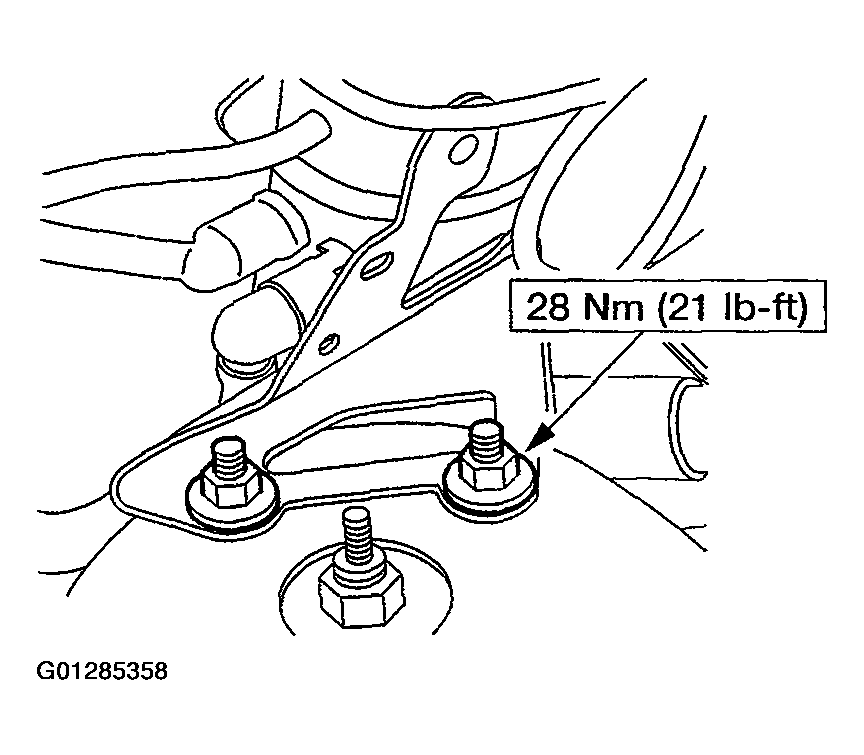

Remove and discard the brake booster-to-brake pedal bracket nuts.

Fig 8: Removing Brake Booster-To-Brake Pedal Bracket Nuts
Courtesy of FORD MOTOR CO.
Disconnect the brake pedal pin from the brake booster input shaft.
1. Remove the brake pedal pin clip.
2. Disconnect the booster input shaft from the brake pedal pin.
