Disassembly and Assembly

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the disc brake caliper. For additional information, refer to FRONT DISC BRAKE .
Secure the disc brake caliper in a vise.

NOTE: Do not hone the piston bores. If the bores are excessively scored or corroded, install a new brake disc caliper.

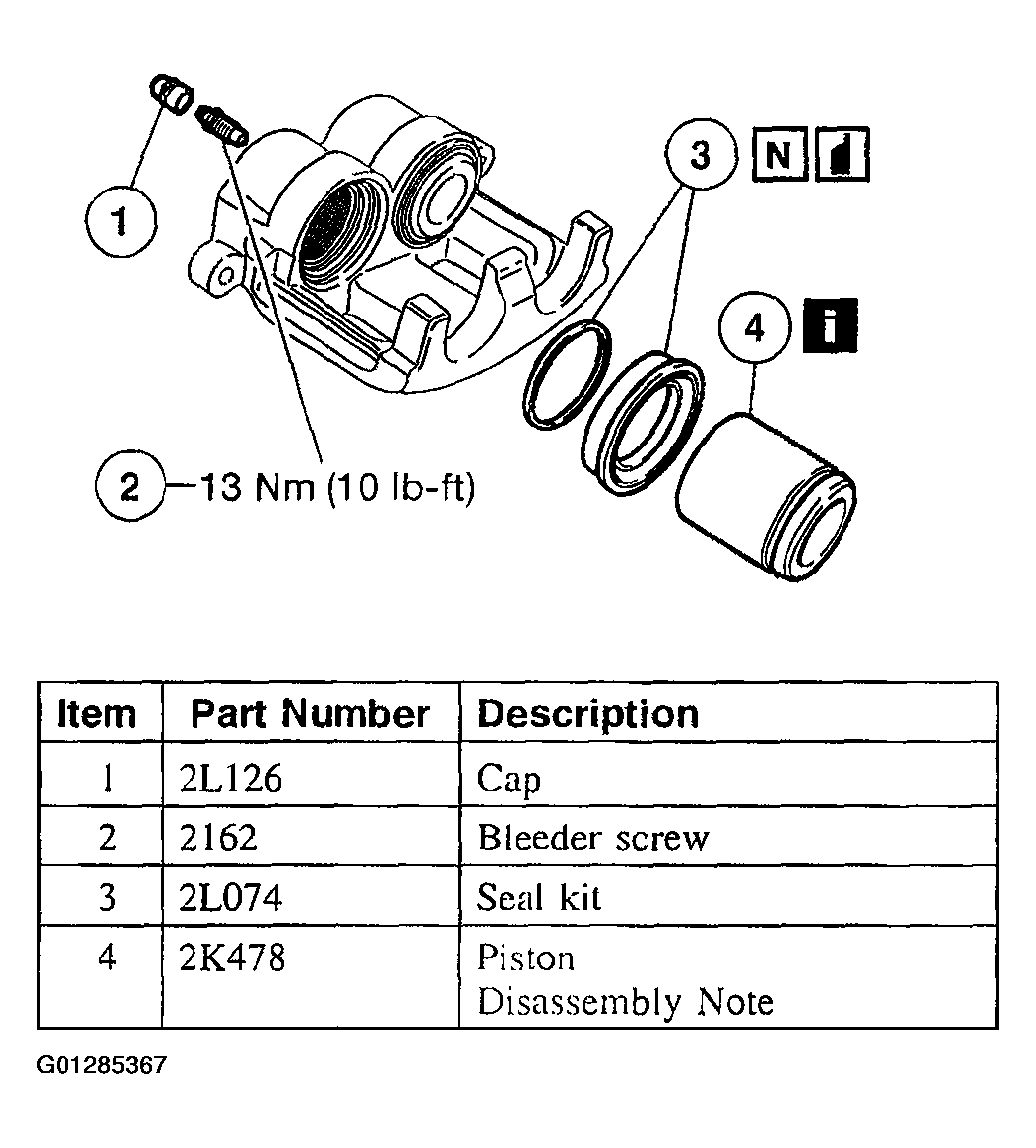

Fig 1: Identifying Removing Sequence Of Brake Caliper - Front

Courtesy of FORD MOTOR CO.

Disassemble the components in the order indicated in Fig 1.
To assemble, reverse the disassembly procedure.
