Pinpoint Test D: DTC B1990: Pedal Forward/Rearward Feedback Circuit Failure

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

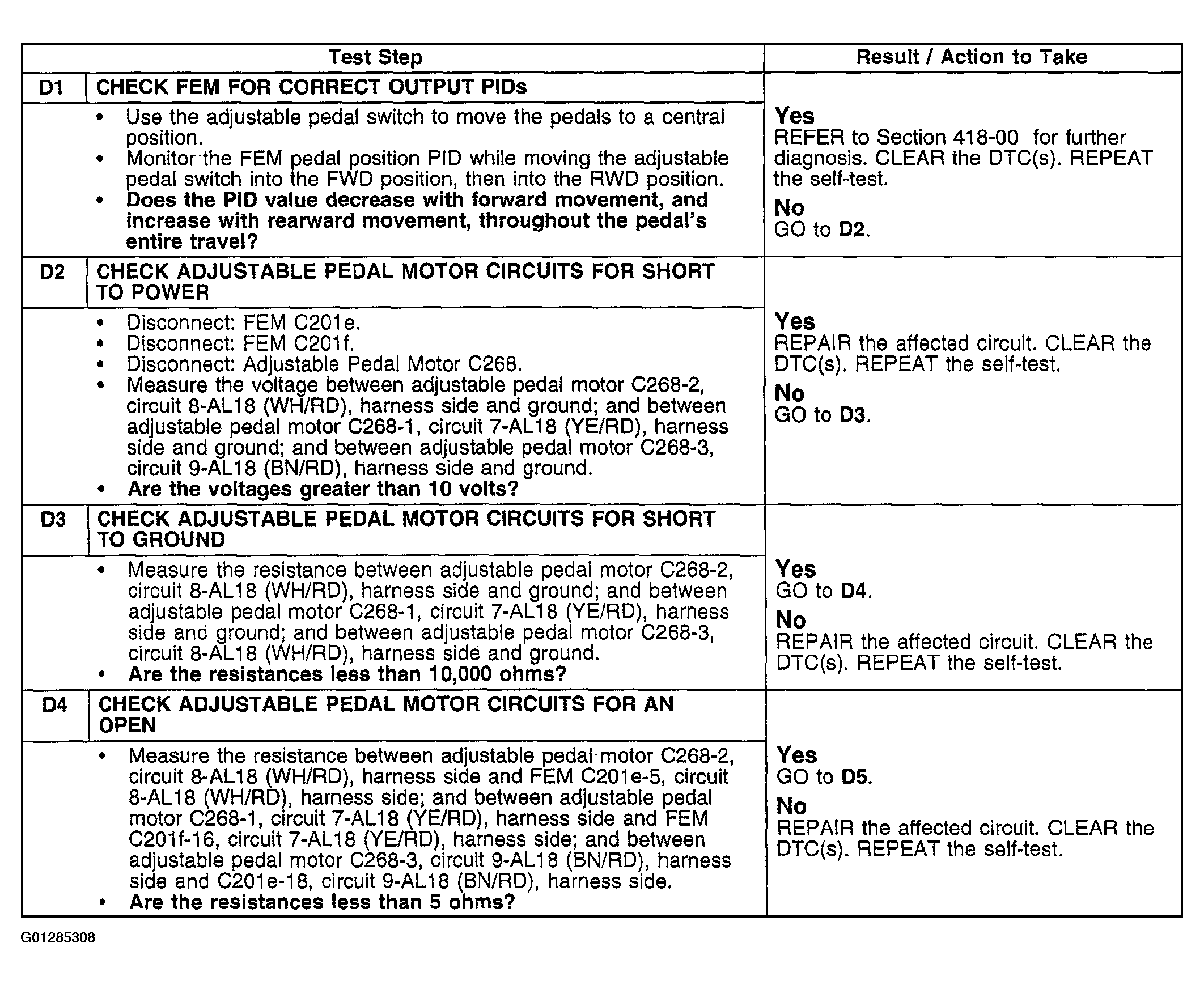

Fig 1: Pinpoint Test D: DTC B1990: Pedal Forward/Rearward Feedback Circuit Failure (Steps D1-D4)
G01285308Courtesy of FORD MOTOR CO.

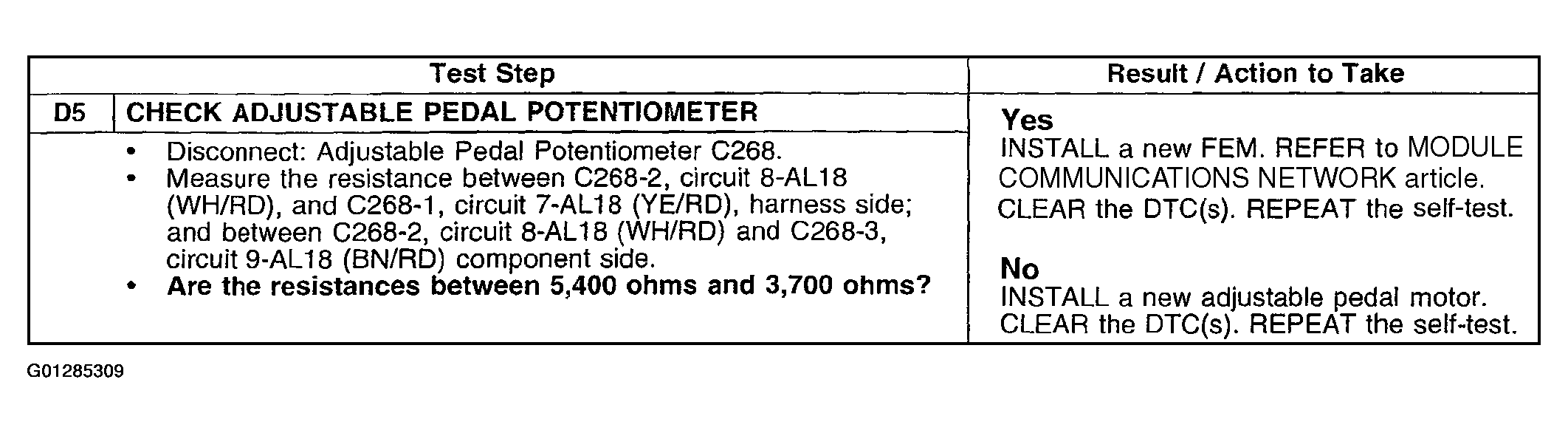

Fig 2: Pinpoint Test D: DTC B1990: Pedal Forward/Rearward Feedback Circuit Failure (Steps D5)
G01285309Courtesy of FORD MOTOR CO.
