Pinpoint Test C: Adjustable Pedal Does Not Operate

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

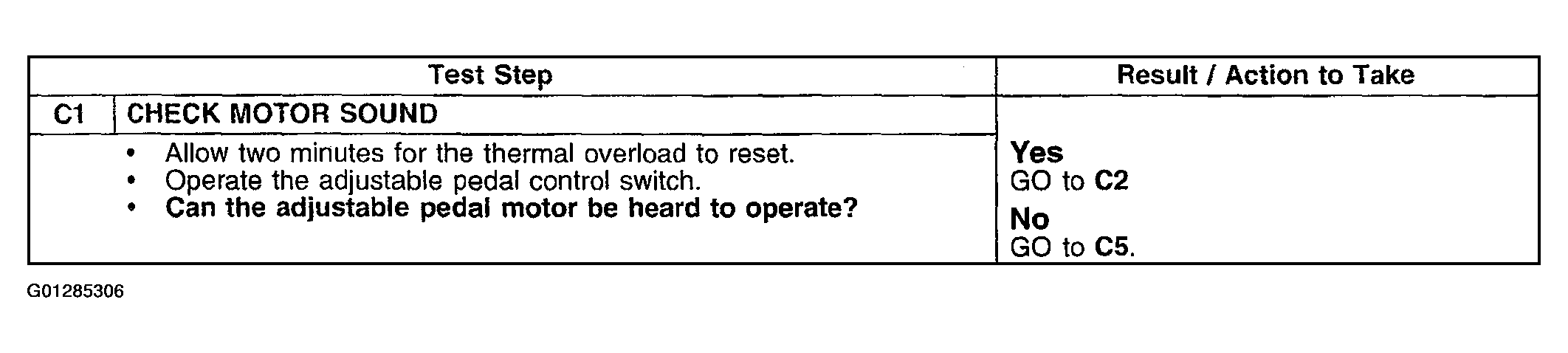

Fig 1: Pinpoint Test C: Adjustable Pedal Does Not Operate (Steps C1)
G01285306Courtesy of FORD MOTOR CO.

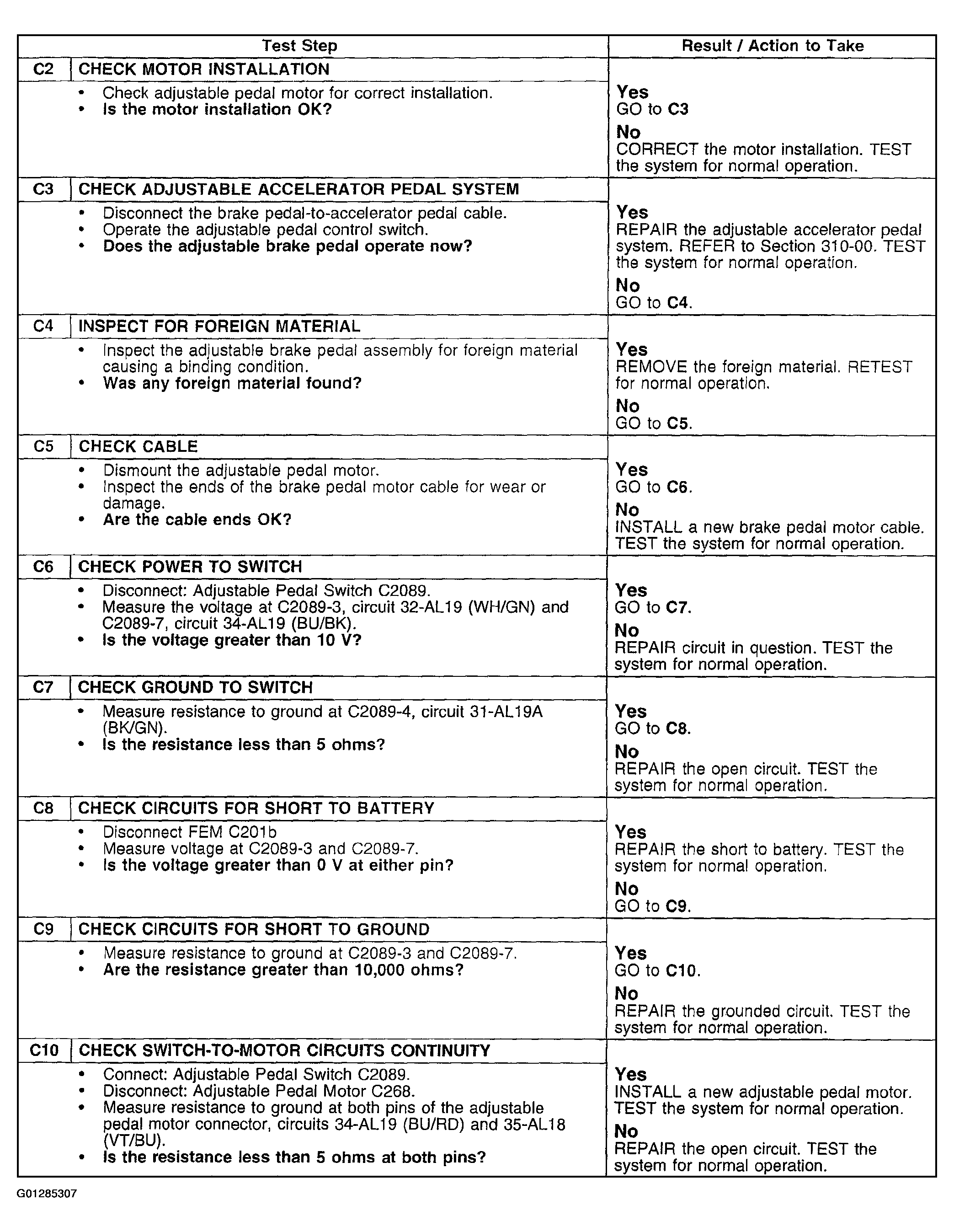

Fig 2: Pinpoint Test C: Adjustable Pedal Does Not Operate (Steps C2-C10)
G01285307Courtesy of FORD MOTOR CO.
