Adjustable Pedals
WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
- Verify the customer concern by operating the adjustable pedals.
- Visually inspect for obvious signs of mechanical or electrical damage. Refer to the following chart:

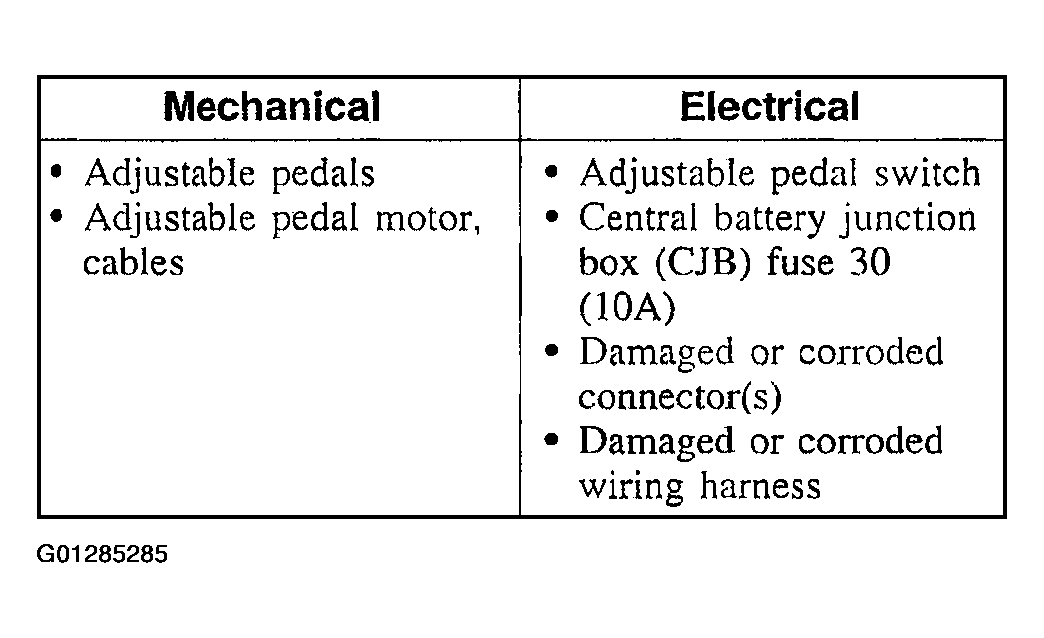

Visual Inspection Chart
- If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
- If the scan tool does not power up, refer to the scan tool manual.
- Carry out the DATA LINK DIAGNOSTIC TEST. If the scan tool responds with:
- CKT914, CKT915 or CKT70 - ALL ECUS NO RESP/NOT EQUIP, refer to MODULE COMMUNICATIONS NETWORK .
- NO RESP/NOT EQUIP for Front Electronic Module (FEM), refer to MODULE COMMUNICATIONS NETWORK .
- System passed, retrieve and record the continuous DTCs and carry out self-test diagnostics for the FEM.
- If the DTCs retrieved are related to the concern, go to FRONT ELECTRONIC MODULE (FEM) DIAGNOSTIC TROUBLE CODE (DTC) INDEX .
- If no DTCs related to the concern are retrieved, GO to SYMPTOM CHART Chart to continue diagnostics.
