Electronic Parking Brake (EPB) Module-C4205b

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

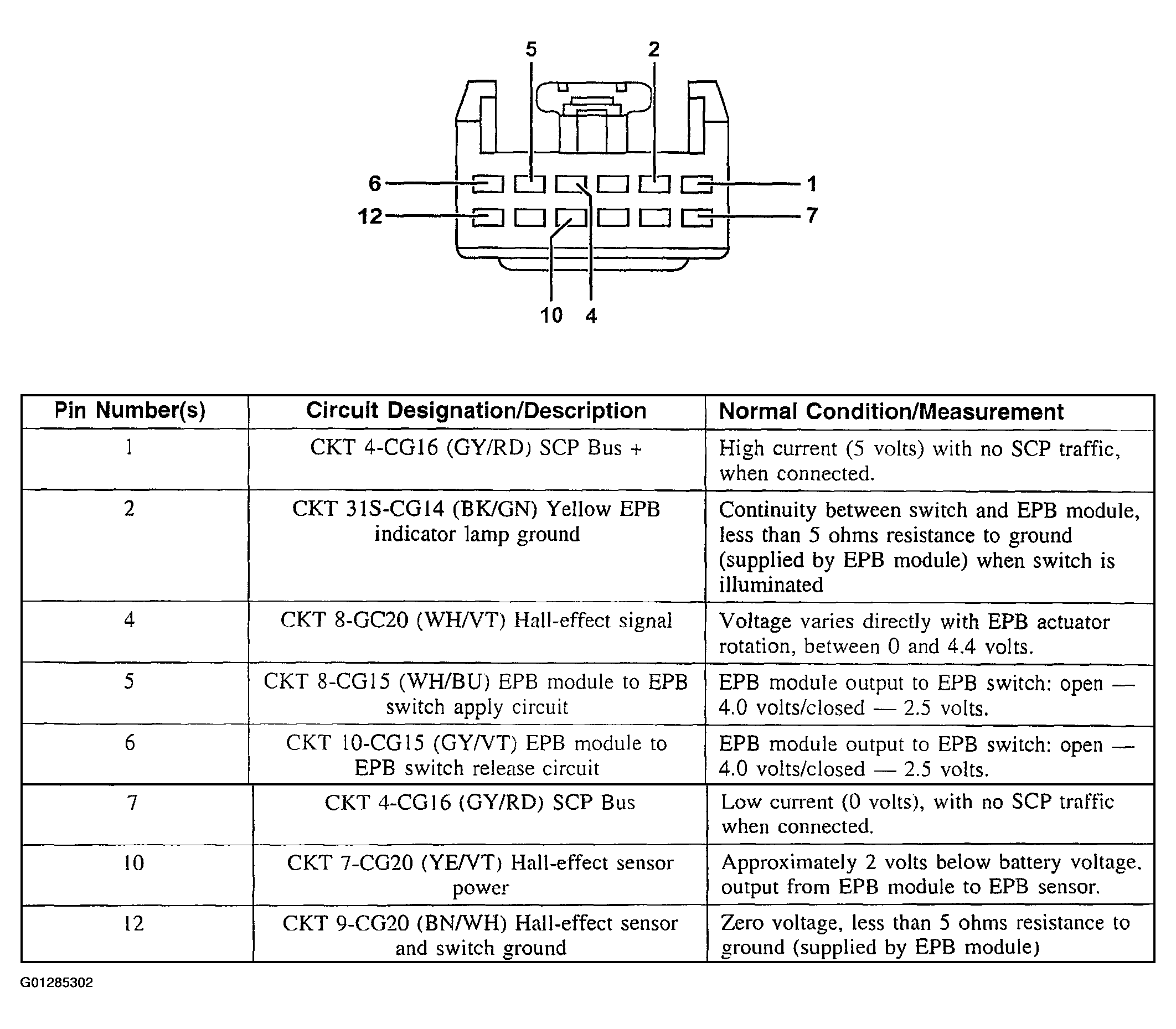

Fig 1: Identifying Electronic Parking Brake (EPB) Module-C4205b Connector Reference And Terminal Readings
G01285302Courtesy of FORD MOTOR CO.
