Transmission Support Crossmember: Removal

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the vehicle on a hoist. Place in NEUTRAL. For additional information, refer to JACKING & HOISTING .
  2. Disconnect the RH HO2S sensor connector.

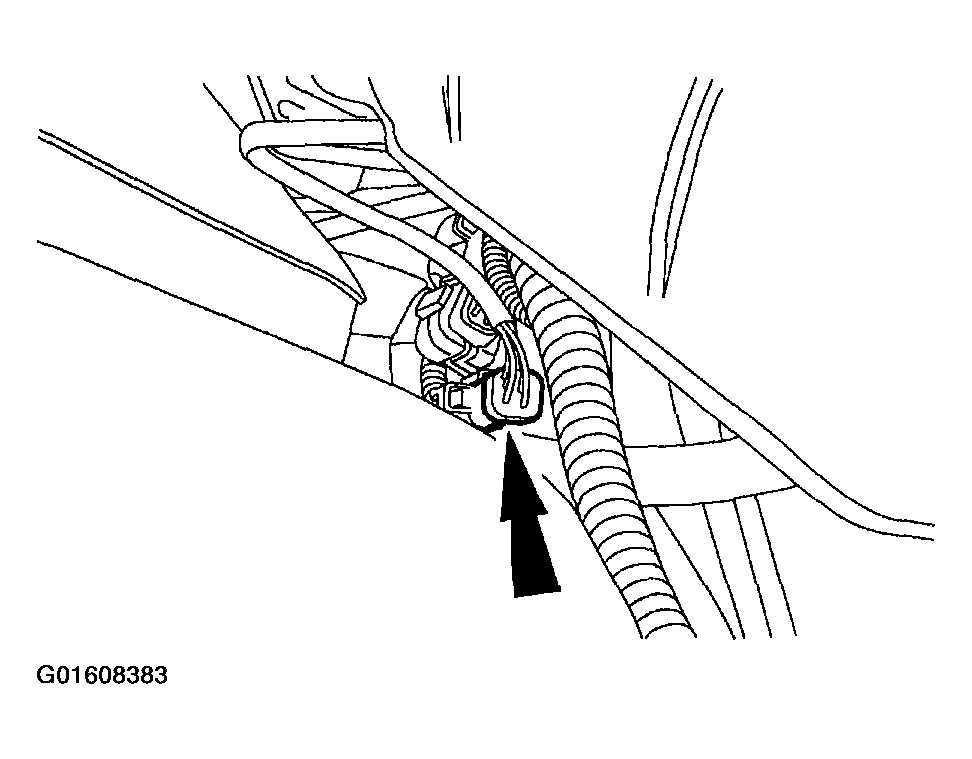

    Fig 1: Disconnecting RH HO2S Sensor Connector
    G01608383Courtesy of FORD MOTOR CO.
  3. Disconnect the RH catalyst monitor connector.

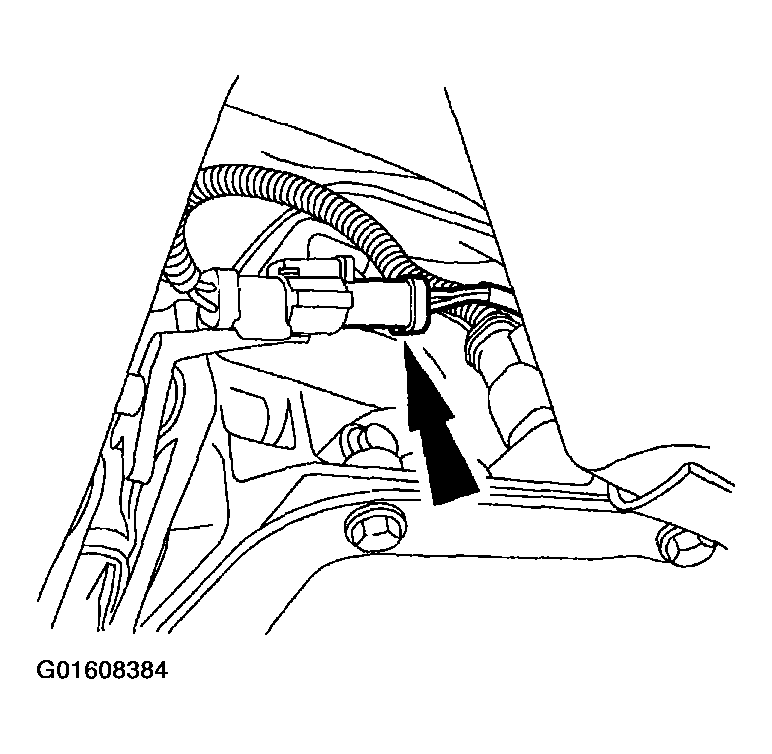

    Fig 2: Disconnecting RH Catalyst Monitor Connector
    G01608384Courtesy of FORD MOTOR CO.
  4. Remove the bolts from the RH exhaust flange.

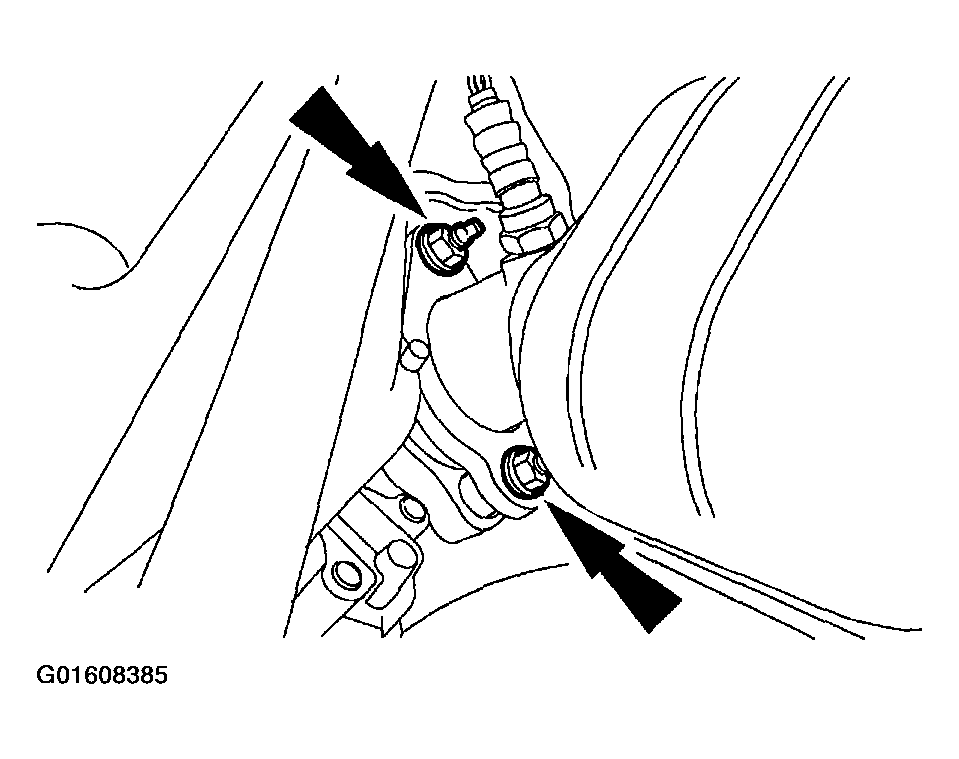

    Fig 3: Removing Bolts From RH Exhaust Flange
    G01608385Courtesy of FORD MOTOR CO.
  5. Loosen the exhaust clamp and remove the RH exhaust pipe.

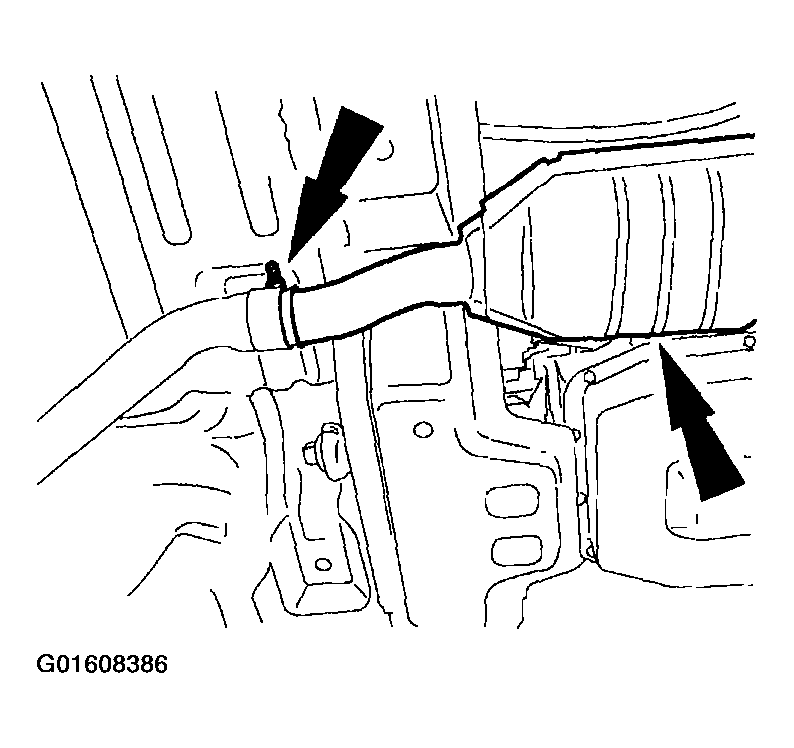

    Fig 4: Loosening Exhaust Clamp
    G01608386Courtesy of FORD MOTOR CO.
  6. Disconnect the LH HO2S sensor connector.

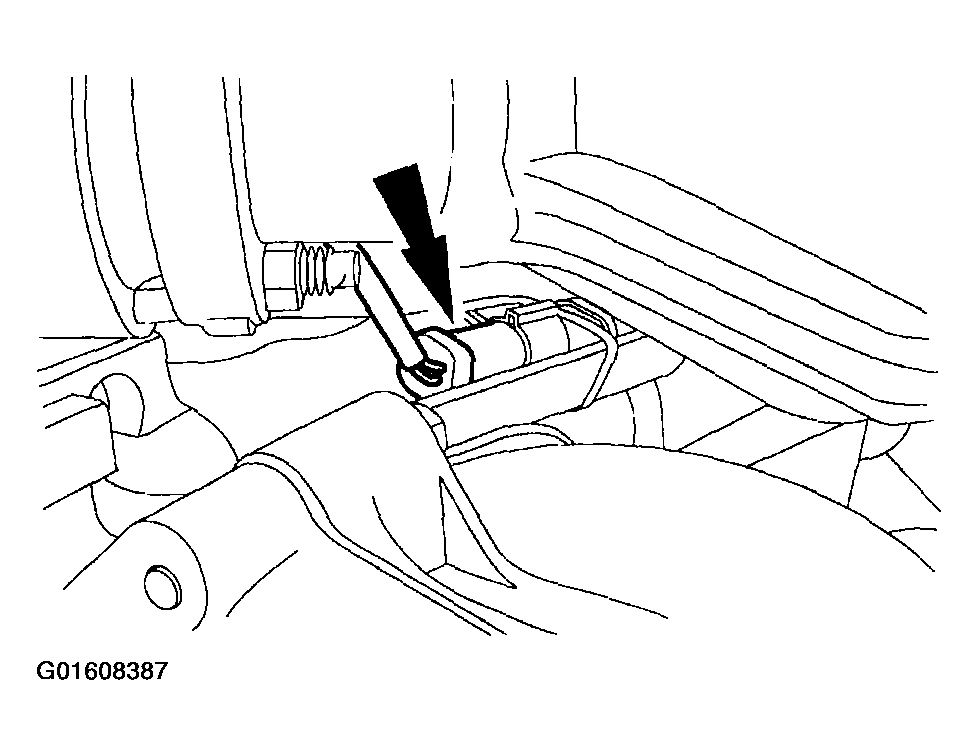

    Fig 5: Disconnecting LH HO2S Sensor Connector
    G01608387Courtesy of FORD MOTOR CO.
  7. Disconnect the LH catalyst monitor connector.

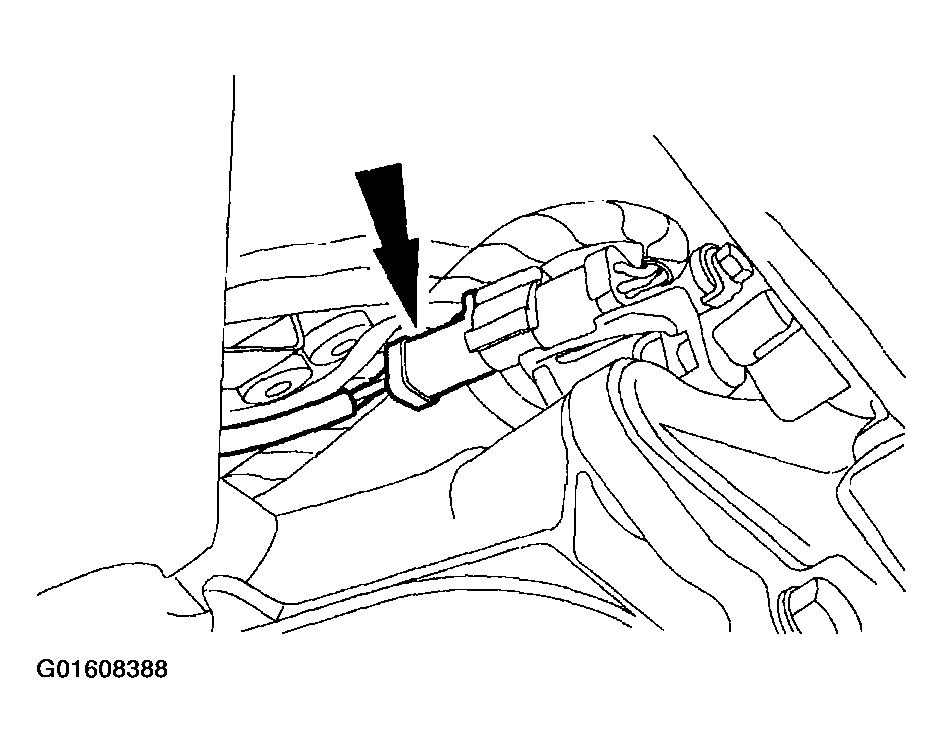

    Fig 6: Disconnecting LH Catalyst Monitor Connector
    G01608388Courtesy of FORD MOTOR CO.
  8. Remove the bolts from the LH exhaust flange.

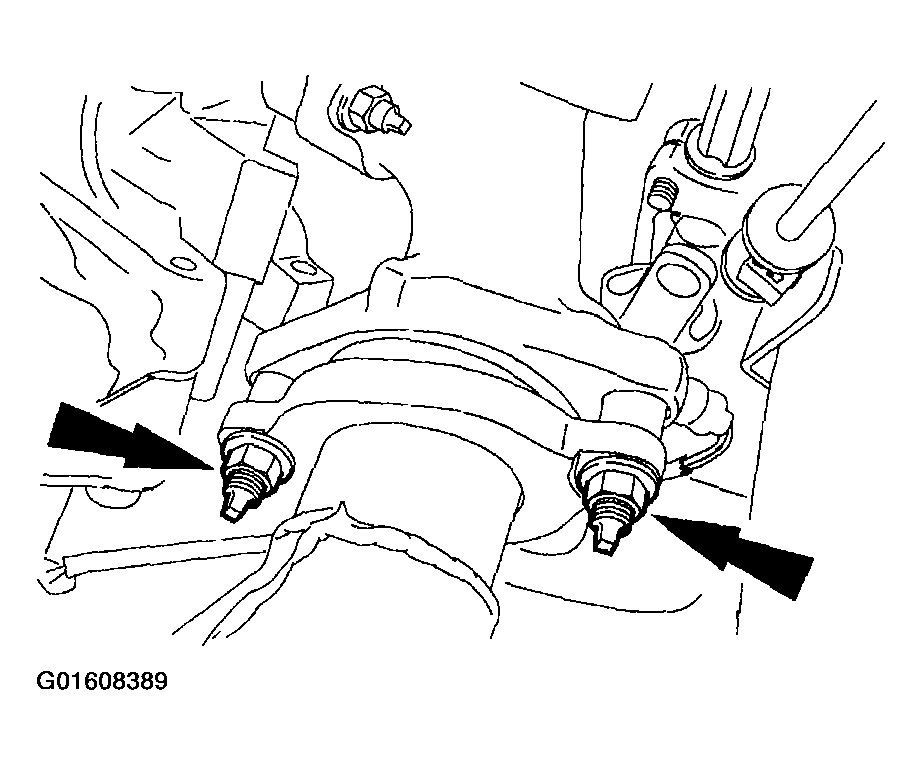

    Fig 7: Removing Bolts From LH Exhaust Flange
    G01608389Courtesy of FORD MOTOR CO.
  9. Loosen the exhaust clamp and remove the LH exhaust pipe.

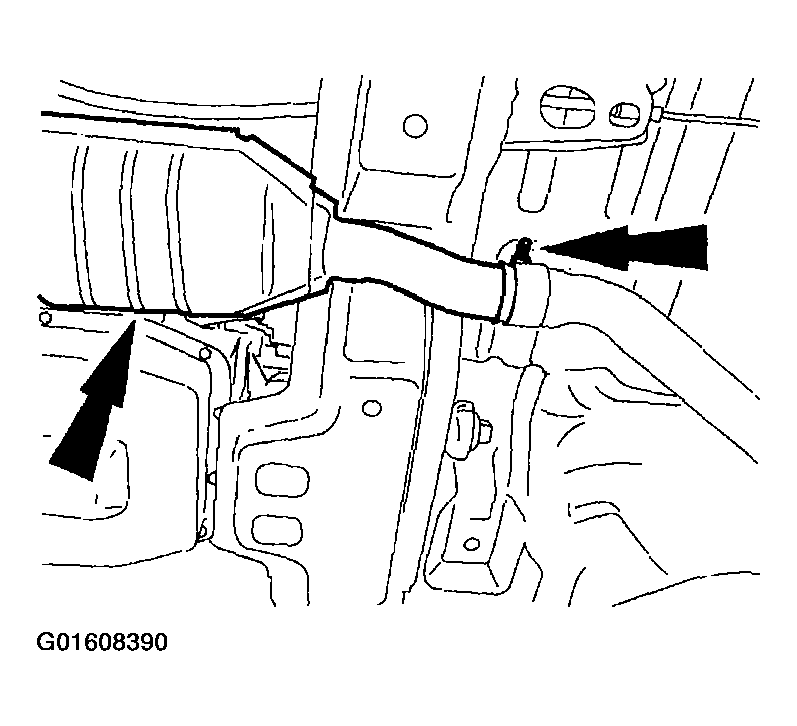

    Fig 8: Loosening Exhaust Clamp
    G01608390Courtesy of FORD MOTOR CO.
  10. Remove the rear transmission insulator nuts.
    Fig 9: Removing Rear Transmission Insulator Nuts
    G01608391Courtesy of FORD MOTOR CO.
  11. Install a suitable transmission jack.
  12. Remove the RH side crossmember bolts.
    Fig 10: Removing RH Side Crossmember Bolts
    G01608392Courtesy of FORD MOTOR CO.
  13. Remove the LH side crossmember bolts.

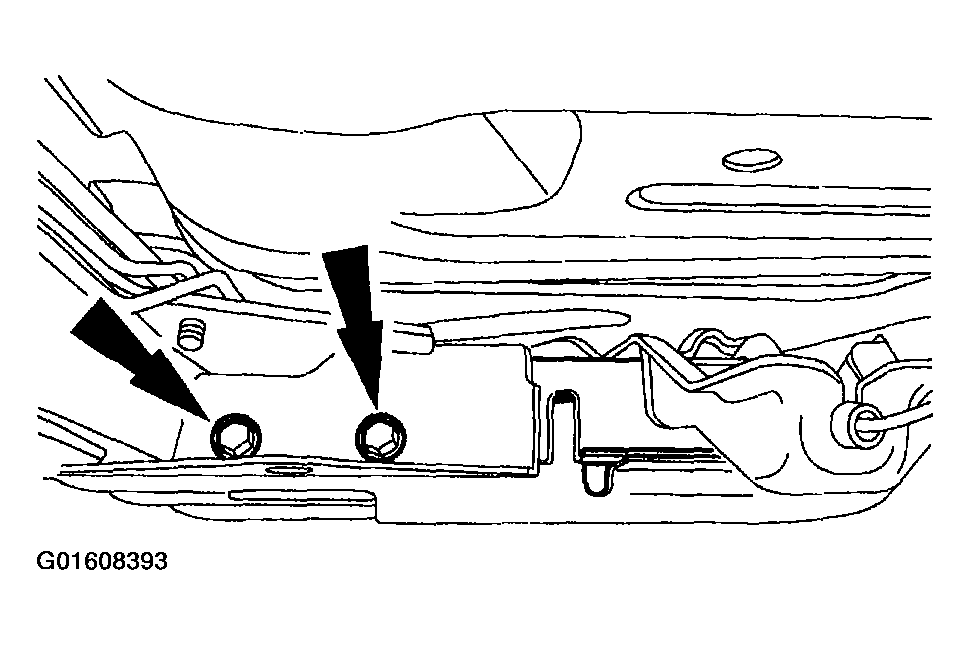

    Fig 11: Removing LH Side Crossmember Bolts
    G01608393Courtesy of FORD MOTOR CO.
  14. Remove the bolts and remove the parking brake cable bracket and position aside.

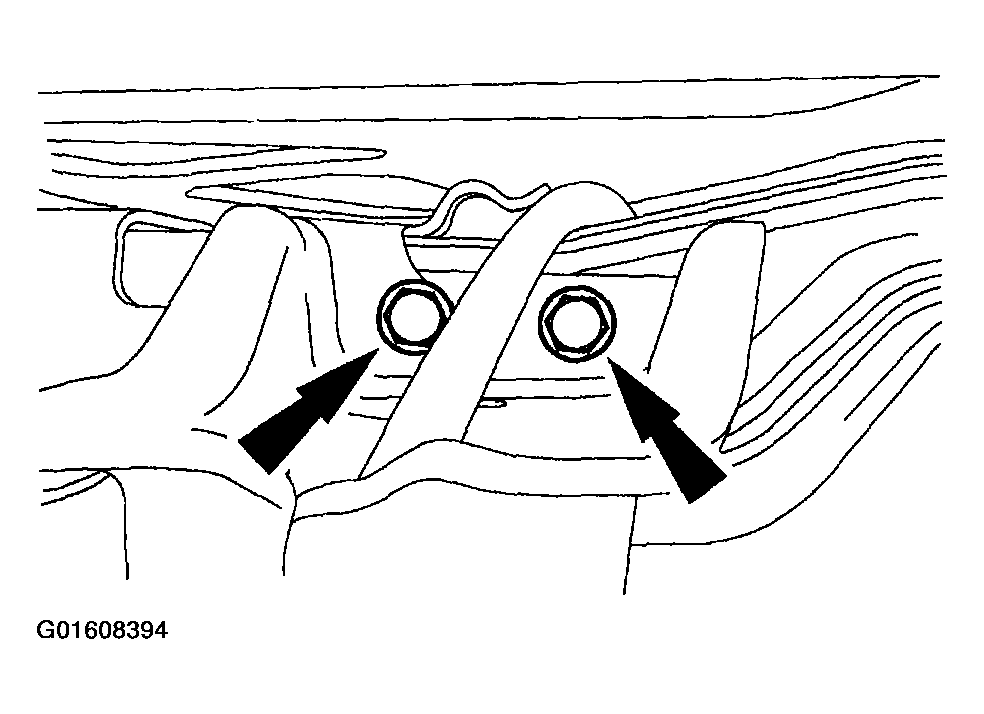

    Fig 12: Removing Bolts And Removing Parking Brake Cable Bracket
    G01608394Courtesy of FORD MOTOR CO.
    15. NOTE: The crossmember is a press fit in the crossmember pocket, it may be necessary to pry the crossmember out of the crossmember pocket. Be careful not to damage the crossmember.
    Fig 13: Lowering RH Side Of Crossmember
    G01608395Courtesy of FORD MOTOR CO.
  15. Lower the RH side of the crossmember.
    16. NOTE: The crossmember is a press fit in the crossmember pocket, it may be necessary to pry the crossmember out of the crossmember pocket. Be careful not to damage the crossmember.
    Fig 14: Lowering LH Side Of Crossmember
    G01608396Courtesy of FORD MOTOR CO.
  16. Lower the LH side of the crossmember and remove the crossmember.
