Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bolt.

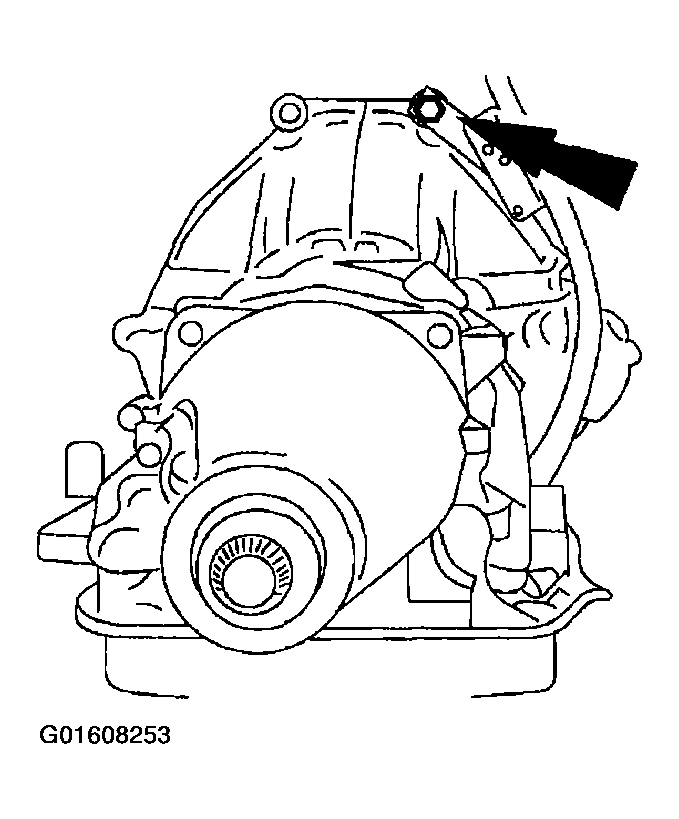

Fig 1: Removing Bolt
Courtesy of FORD MOTOR CO.
Remove the fluid filler tube.

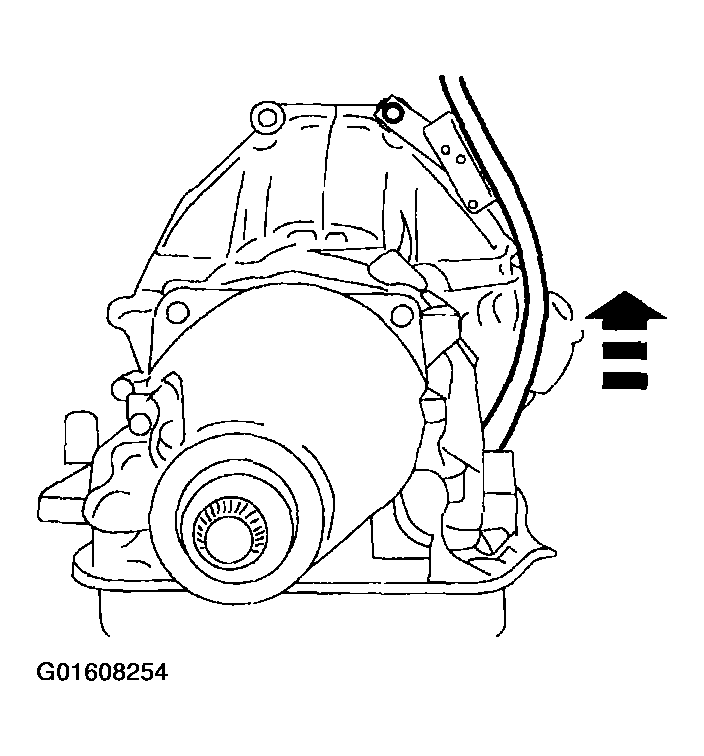

Fig 2: Removing Fluid Filler Tube
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.

Fig 3: Installing Fluid Filler Tube
Courtesy of FORD MOTOR CO.
