Extension Housing Oil Seal: Installation

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Using the special tool, install a new extension housing seal.

Fig 1: Installing New Extension Housing Seal Using Special Tool
Courtesy of FORD MOTOR CO.

NOTE: The output shaft and the driveshaft are a balanced assembly.

Fig 2: Installing Driveshaft

Courtesy of FORD MOTOR CO.

Install the driveshaft.
- Align the index marks and position the driveshaft on the transmission.
- Install the driveshaft.

NOTE: To maintain driveshaft balance, install the driveshaft yoke and flange in the original position that was marked during removal.

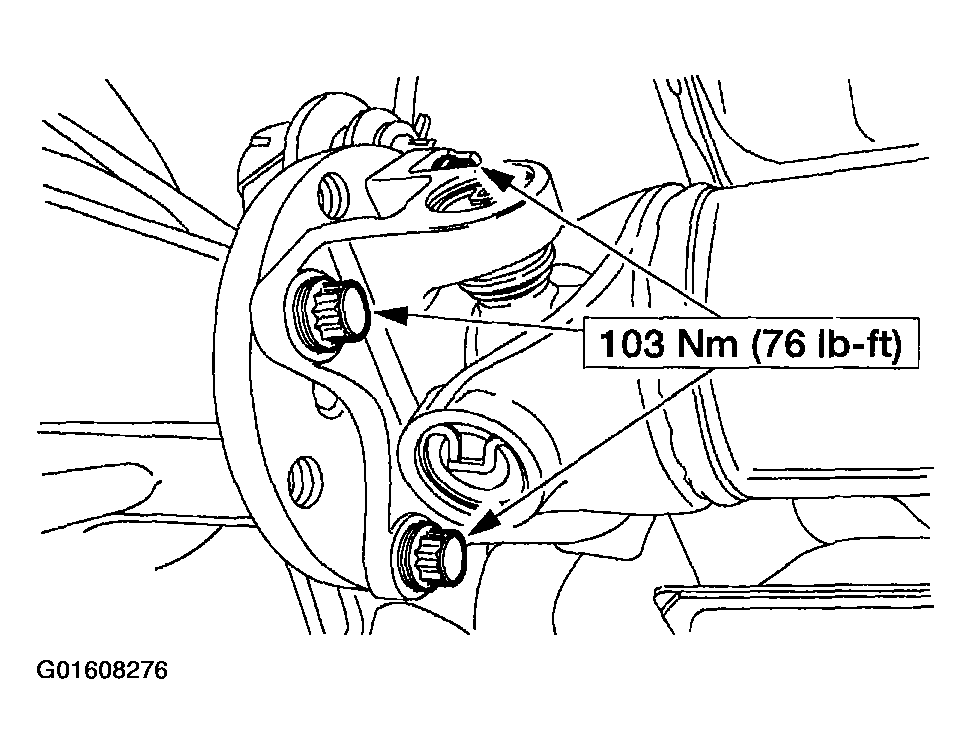

Fig 3: Installing Retaining Bolts

Courtesy of FORD MOTOR CO.

Install the four retaining bolts.
Check the level of the transmission fluid, add clean automatic transmission fluid as necessary.
