1-2 Accumulator: Removal

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Compress the 1-2 accumulator cover and remove the accumulator piston retaining ring.
    Fig 1: Removing Accumulator Piston Retaining Ring
    G01608374Courtesy of FORD MOTOR CO.
    2. NOTE: Note the location of the 1-2 accumulator springs for reference during assembly.

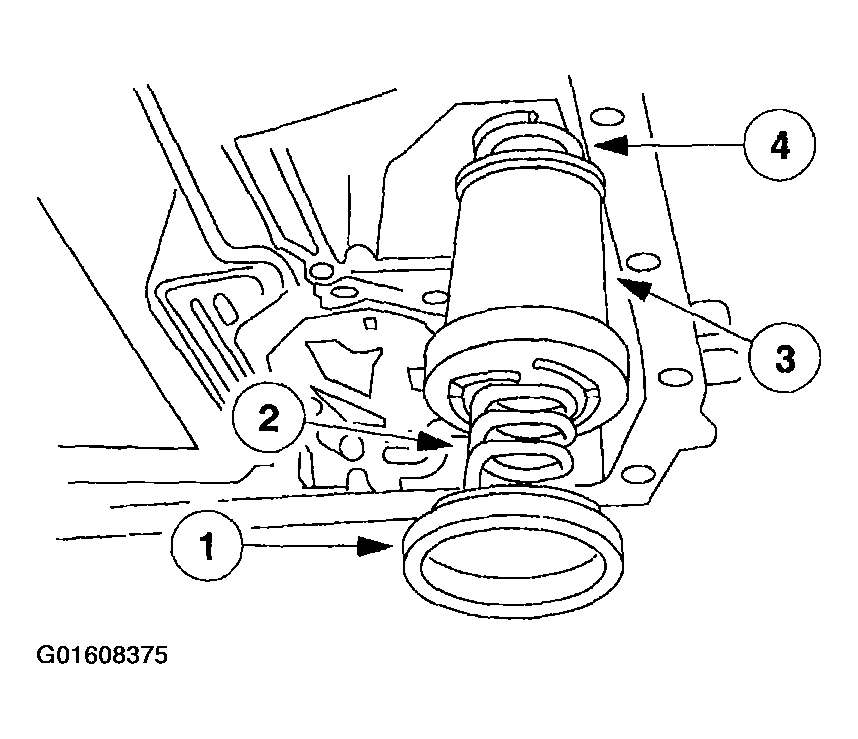

    Fig 2: Removing 1-2 Accumulator
    G01608375Courtesy of FORD MOTOR CO.
  2. Remove the 1-2 accumulator.
    1. Remove the 1-2 accumulator cover.
    2. Remove the lower 1-2 accumulator spring.
    3. Remove the accumulator piston.
    4. Remove the upper 1-2 accumulator spring.
