1-2 Accumulator: Installation

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the 1-2 accumulator.
    1. Install the 1-2 accumulator upper spring.
    2. Install the accumulator piston.
    3. Install the 1-2 accumulator lower spring.
    4. Install the cover and seal assembly.

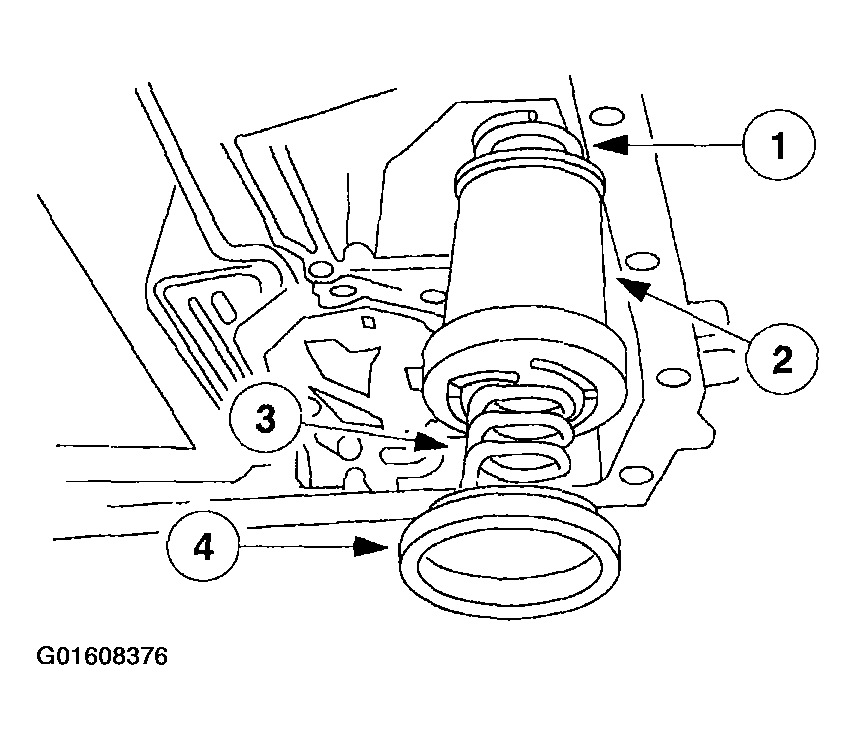

    Fig 1: Installing 1-2 Accumulator
    G01608376Courtesy of FORD MOTOR CO.
  2. Compress the accumulator and install the accumulator piston retaining ring.
    Fig 2: Compressing Accumulator
    G01608377Courtesy of FORD MOTOR CO.
