Reverse Sun Gear: Disassembly

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

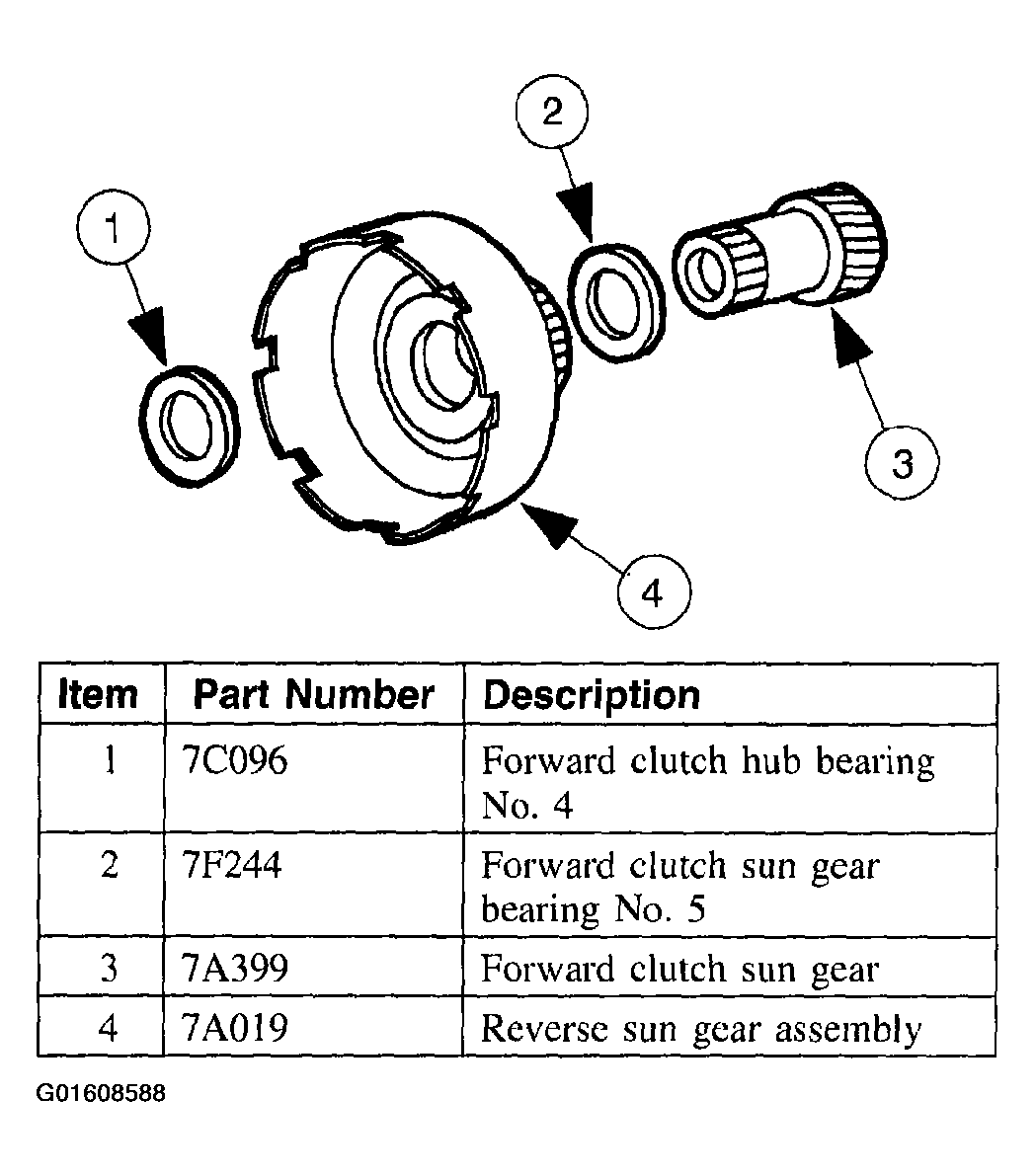

Fig 1: Exploded View Of Reverse Sun Gear
G01608588Courtesy of FORD MOTOR CO.
  1. Remove the reverse clutch sun gear assembly and the No. 4 forward clutch hub bearing and race.

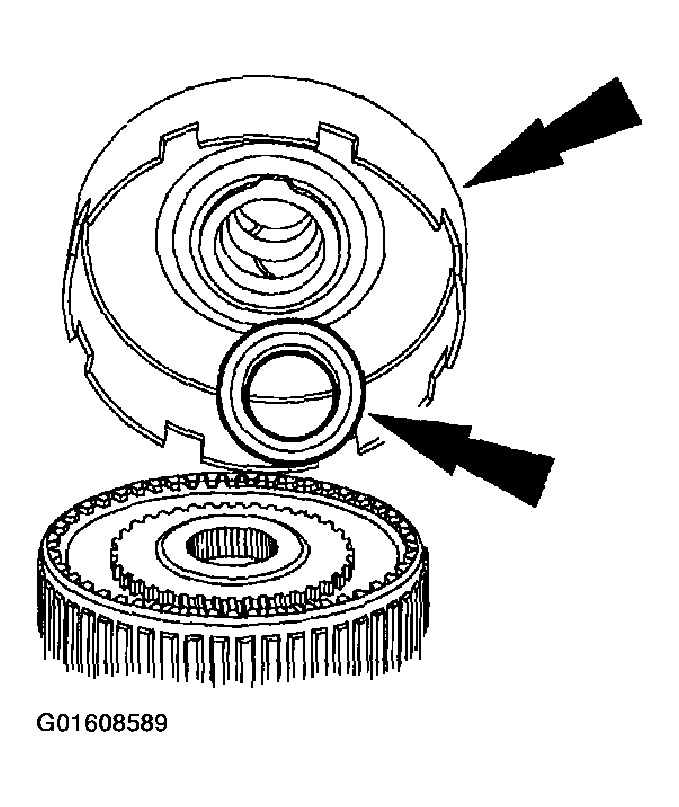

    Fig 2: Removing Reverse Clutch Sun Gear Assembly
    G01608589Courtesy of FORD MOTOR CO.
  2. Remove the forward clutch sun gear assembly and the No. 5 forward clutch sun gear bearing and race.
    Fig 3: Removing Forward Clutch Sun Gear Assembly
    G01608590Courtesy of FORD MOTOR CO.
