Forward Clutch - Disassembled View

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

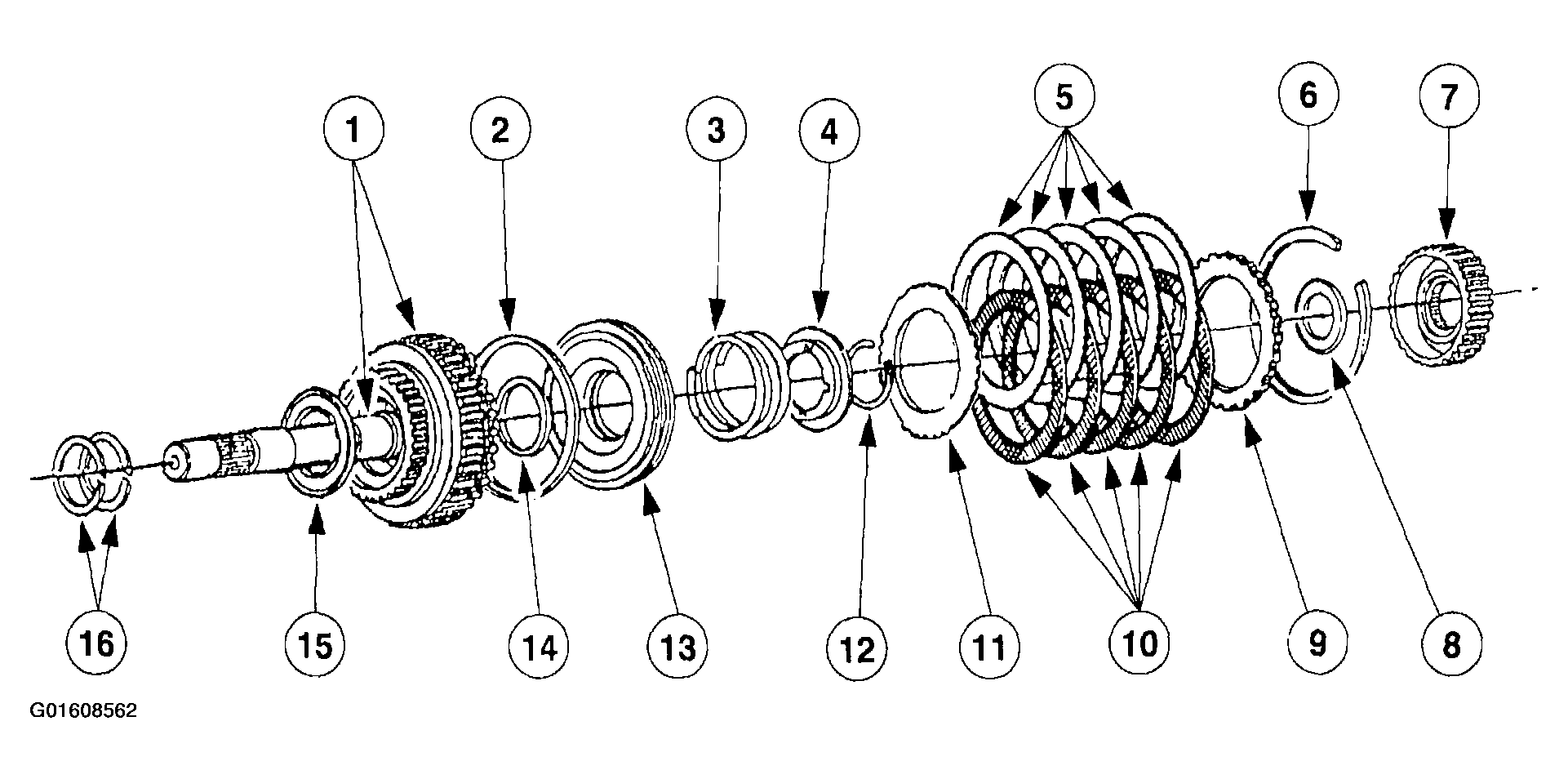

Fig 1: Exploded View Of Forward Clutch (1 Of 2)
G01608562Courtesy of FORD MOTOR CO.

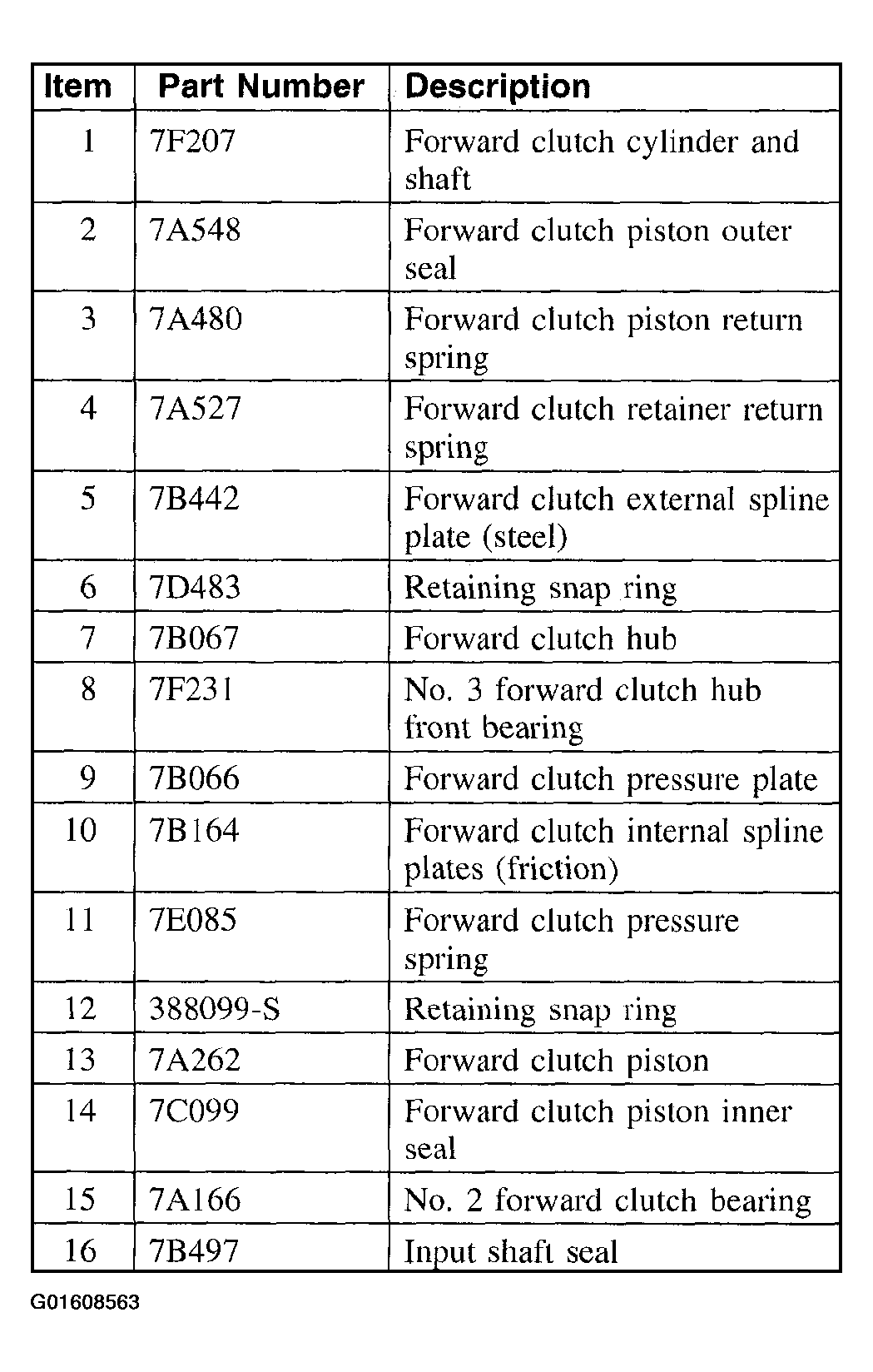

Fig 2: Exploded View Of Forward Clutch (2 Of 2)
G01608563Courtesy of FORD MOTOR CO.
