Digital Transmission Range (TR) Sensor Connector

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Digital Transmission Range (TR) Sensor Connector (1 Of 2)
G01608138Courtesy of FORD MOTOR CO.

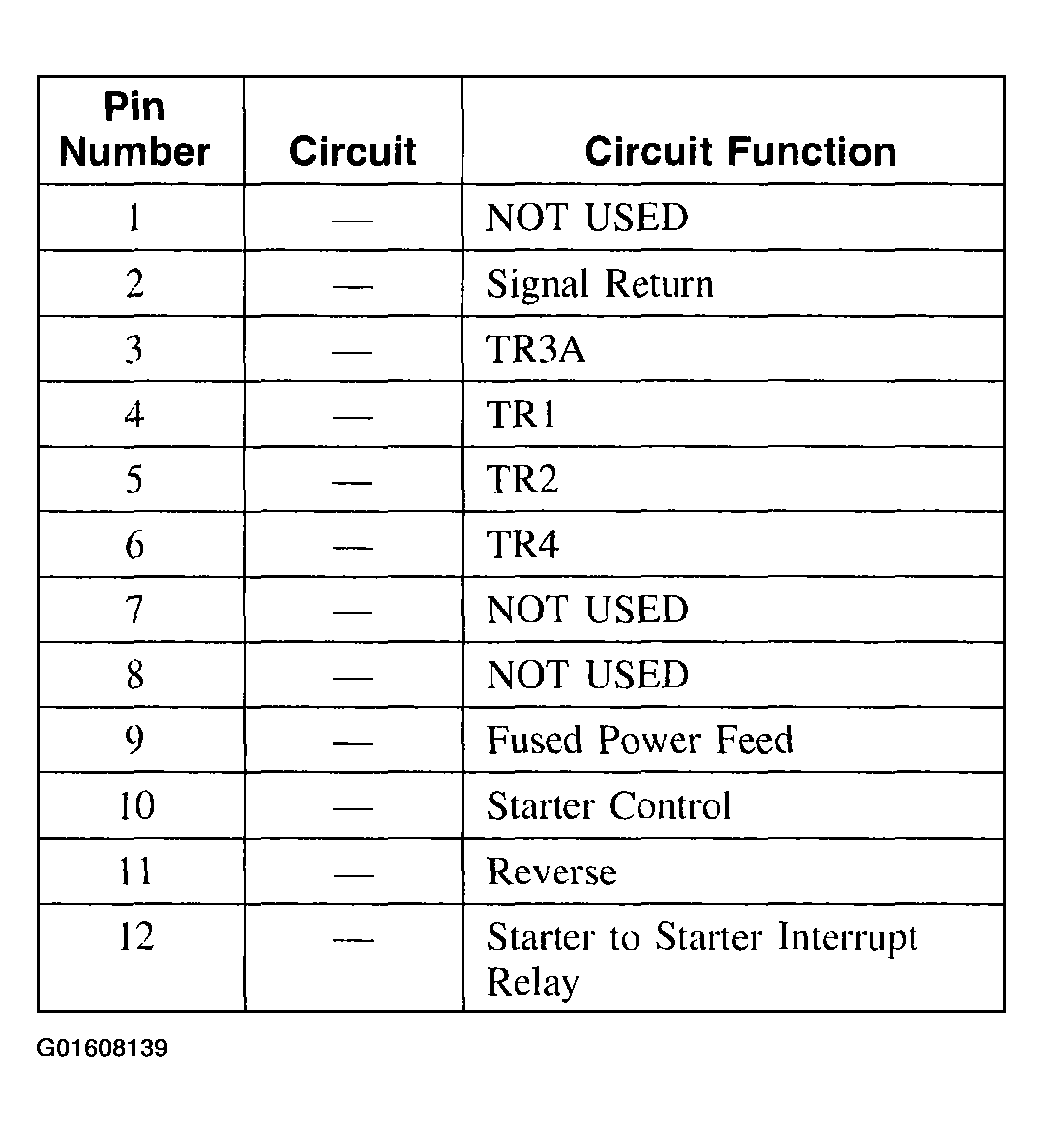

Fig 2: Identifying Digital Transmission Range (TR) Sensor Connector (2 Of 2)
G01608139Courtesy of FORD MOTOR CO.
