Shift Solenoid Failure Mode Chart "Always On"

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Failed on due to powertrain control module and/or vehicle wiring concerns, shift solenoid electrically or hydraulically stuck on.

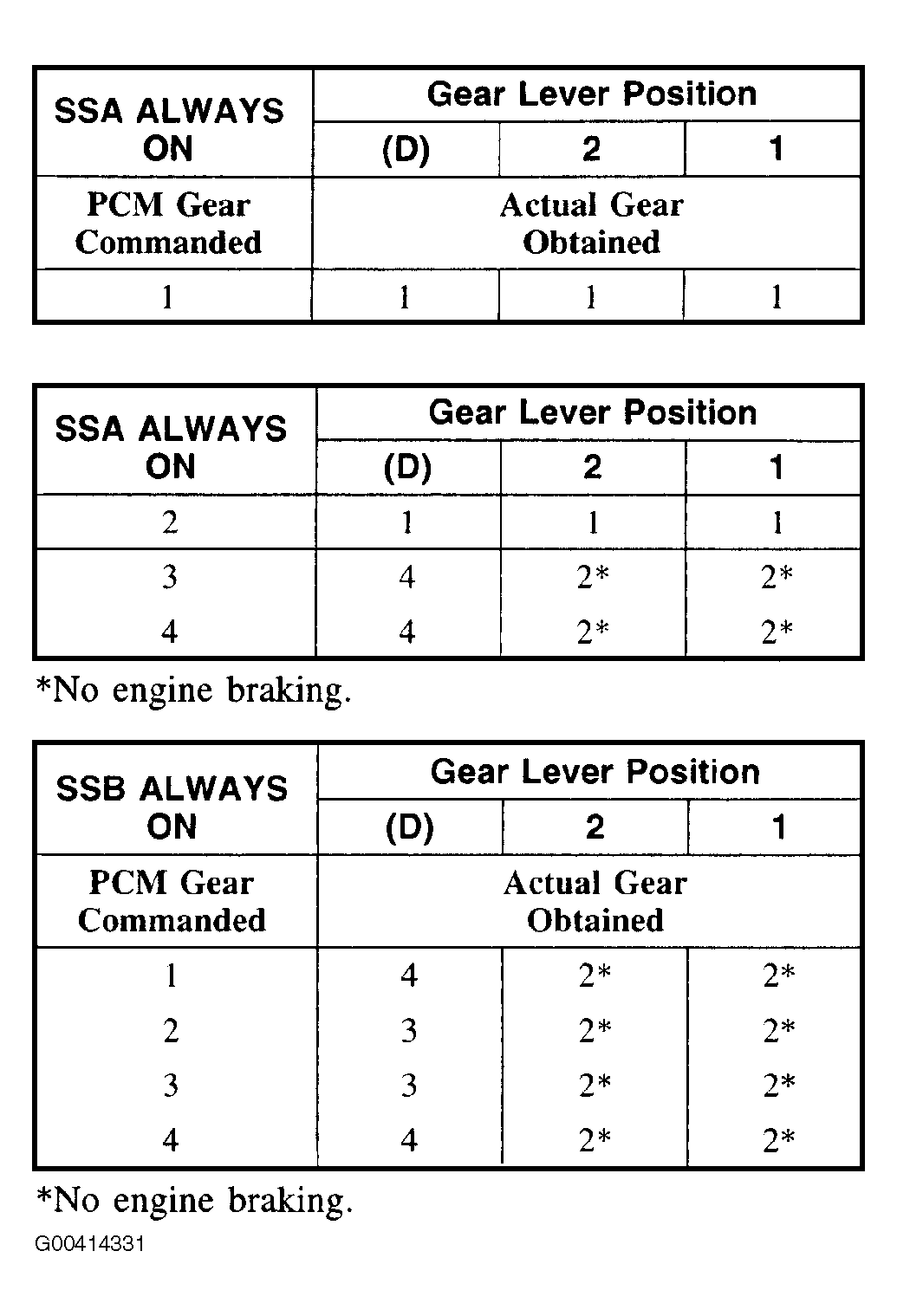

Fig 1: Shift Solenoid Failure Mode Chart "Always On
G00414331Courtesy of FORD MOTOR CO.
