Pinpoint Test F: Solenoid Mechanical Failure

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Repair all other DTCs before repairing the following DTCs: P1714, P1715, P1740.

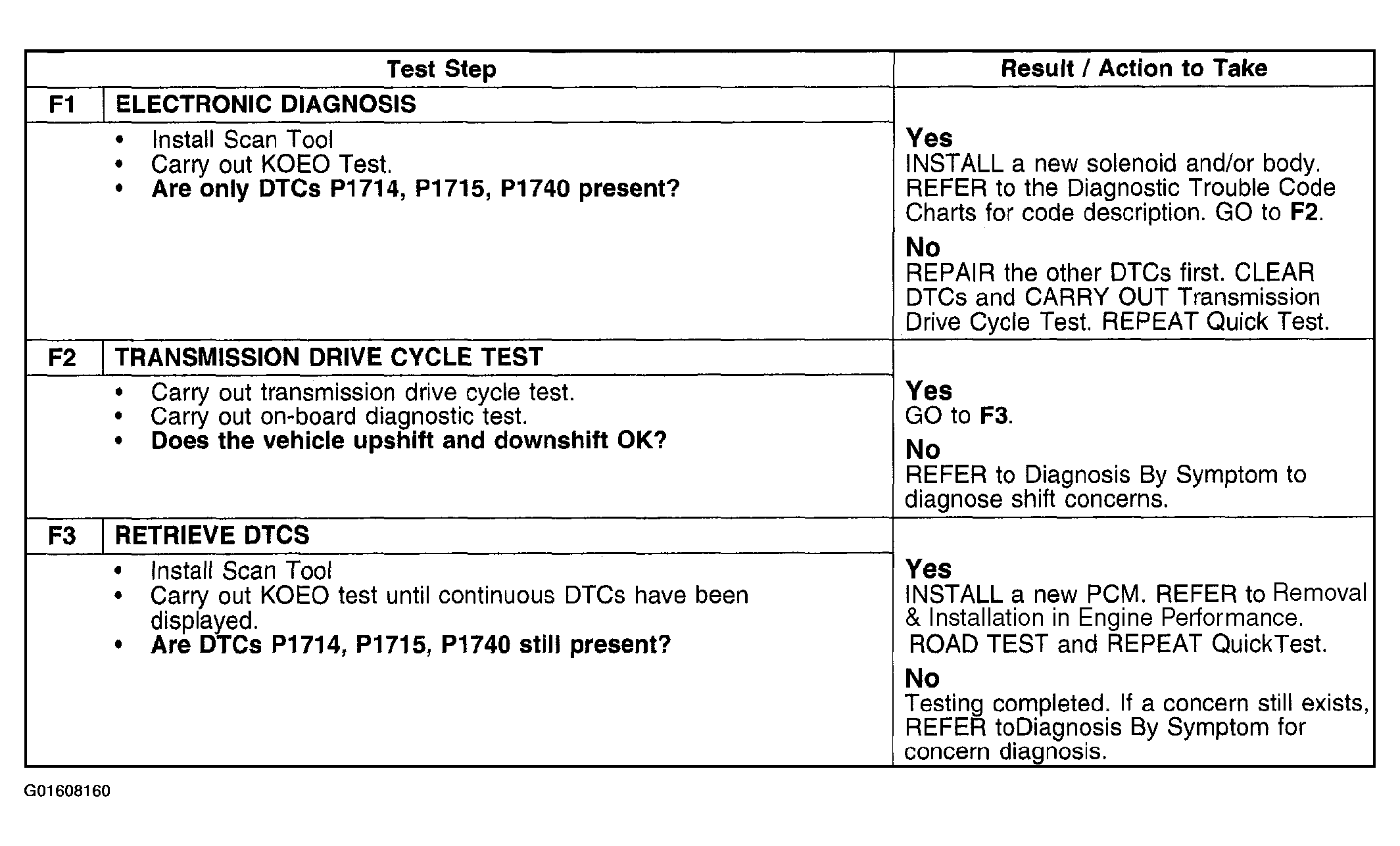

Fig 1: Pinpoint Test F: Solenoid Mechanical Failure
G01608160Courtesy of FORD MOTOR CO.
