Pinpoint Test E: Output Shaft Speed (OSS) Sensors

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to the OUTPUT SHAFT SPEED (OSS) SENSOR HARNESS CONNECTOR  illustration preceding these pinpoint tests.

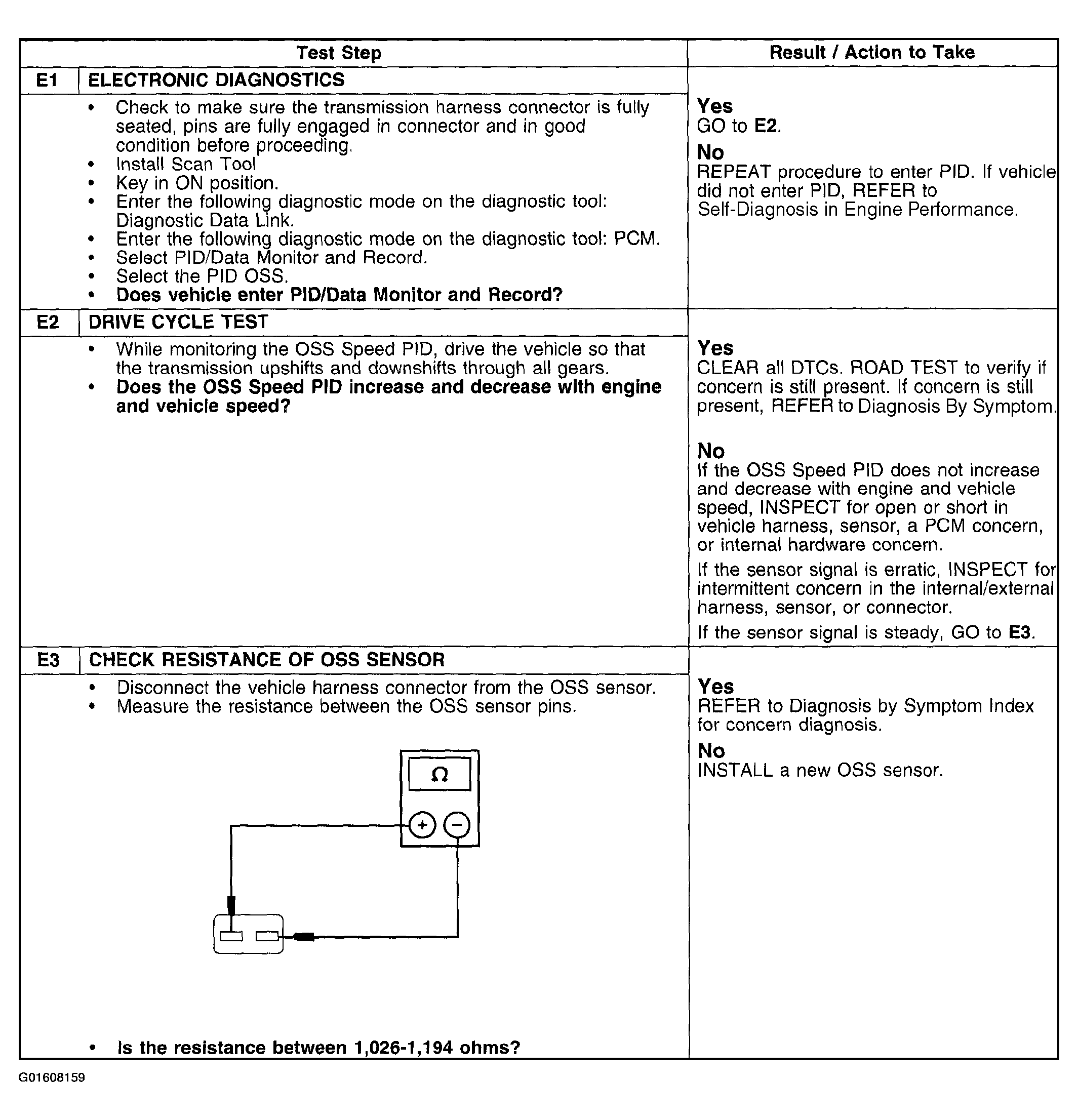

Fig 1: Pinpoint Test E: Output Shaft Speed (OSS) Sensors
G01608159Courtesy of FORD MOTOR CO.
